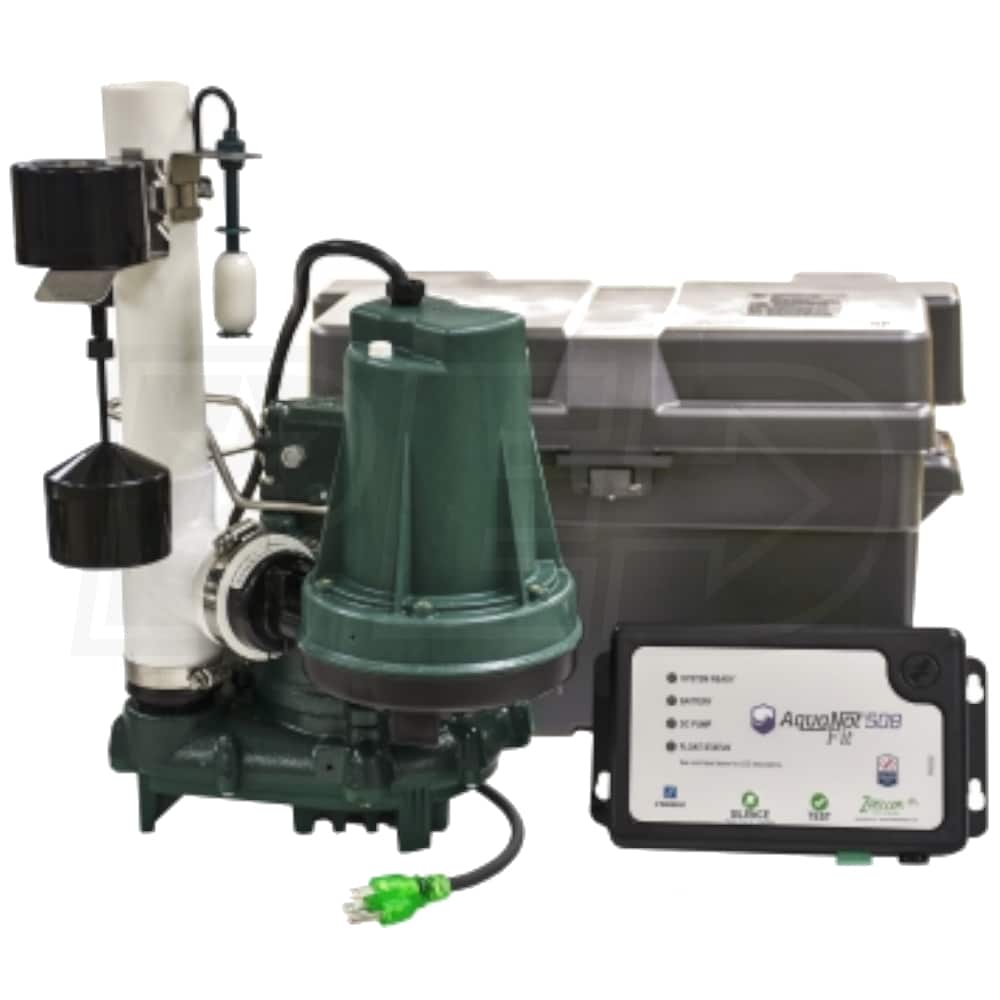

Zoeller ProPack63 - 3/10 HP Combo Primary & Aquanot Fit Backup Pump System w/ WiFi

Model:

508-0020

Write A Review
$1,129.50
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Zoeller ProPack63 - 3/10 HP Combo Primary & Aquanot Fit Backup Pump System w/ WiFi
Zoeller ProPack63 - 3/10 HP Combo Primary & Aquanot Fit Backup Pump System w/ WiFi
Model: 508-0020
$1,129.50
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Combo

GPH

2580 Gallons

Switch Type

Vertical

  • Zoeller ProPak 63 - Primary & Backup Sump Pump System w/ WiFi
  • Simply attach inlcluded discharge pipe & you're ready to install
  • M63 - 3/10 HP Premium Cast Iron Primary Pump w/ Vertical Float Switch
  • Cast iron design & Non-clogging cast iron vortex impeller
  • Oil-filled and hermetically sealed to prevent overheating
  • Zoeller Aquanot® Fit Battery Backup Sump Pump System
  • Internet-connected system with Z Control® Technology
  • Z Control® Cloud - Test, Run, Silence, Reset & More
  • Easily control your pump from your mobile device
  • Mobile App allows for total piece of mind
  • *Zero Monthly Monitoring Fees*
  • Aquanot® Active 508 DC Controller w/ Z Control® Wi-Fi Gateway*
  • Self-testing diagnostics for added protection
  • Allows for email /text / push notifications of alarms and alerts
  • Plus remote access and control, and online configurability
  • 12-Volt, Highly Efficient Backup Sump Pump (9' Leads)
  • Aluminum seal pocket and cooling plate for extended operation
  • Quick-disconnect discharge & pump legs make installation a breeze
  • Built-In Alerts For High-Water, Pump Cycled, Faults & Issues
  • Easily silence/reset alarm with the push of a button
  • 7-Amp Automatic Battery Charging System
  • Self-contained design w/ Battery burnout & overcharge protection
  • Dual Switch Design
  • Compact, low-voltage design for reliable operation
  • Adjustable, main vertical float switch
  • Vertical reed sensor for high water and redundancy
  • Furnished With All Required Fittings
  • Heavy-duty, integrated DC pump discharge check valve
  • Corrosion-Resistant battery box (Fits Group 27, 29 or 31 batteries)
  • BATTERY SOLD SEPARATELY
  • *Requires an internet connection and wireless router (Not Included)
  • 3-Year Limited Warranty
  • For Indoor Use Only
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

508-0020
specs product image PID-152369
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Running Amps
9.7
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2580
GPH @ 5 feet
2580
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Backup GPH @ 5 feet
2340
Backup GPH @ 10 feet
1800
Backup GPH @ 15 feet
1200
Battery Recharger
7 Amps
Max Head
19.25 Feet
Submersible
Yes
Engine
Horsepower
.30 hp
Overview
Product Category
Sump Pump
Weight
41 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
053514458546
Accessories
Wi-Fi enabled
Yes
