Liberty Pumps SPD-250KIT - 250 - 1/3 HP Cast Iron Submersible Sump Pump w/ LevelGuard for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Liberty Pumps SPD-250KIT.



Liberty Pumps 250 - 1/3 HP Cast Iron Submersible Sump Pump w/ LevelGuard

Close
Liberty Pumps Power Equipment and Accessories
Model: SPD-250KIT
(Based on expert analysis, manufacturer ratings and customer reviews)
4.9 out of 54.9 out of 54.9 out of 54.9 out of 54.9 out of 5
10 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock In-Stock
Ships Monday, Dec 18th

Estimate Arrival
$229.99

StoreShippingPriceShop

In-Stock
Free Shipping
$229.99
No Sales Tax*
(Except IL)
Buy

In-Stock
Free Shipping
$229.99
No Sales Tax*
(Except IL)
Visit Site

$229.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • 1
    Q&A
  • 10
    Reviews
  • Articles
  • Shipping
  • Accessories
Style
Primary Sumps Pumps
GPH
3000
Gallons
Switch Type
Electronic


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

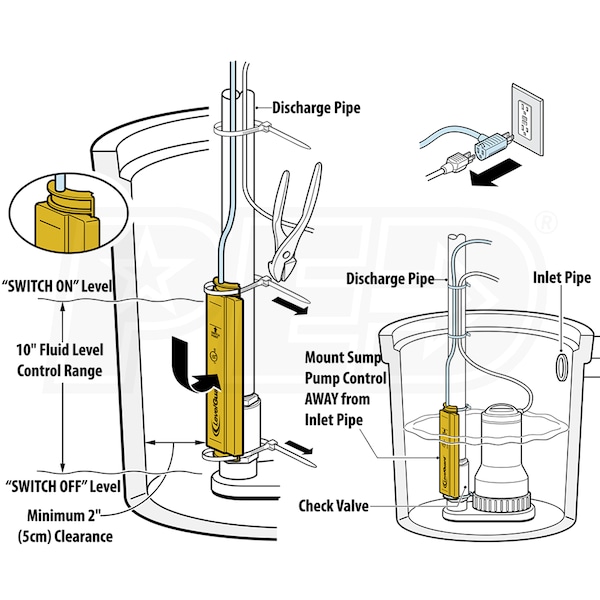

Includes LevelGuard™ Electronic Sump Pump Control
The most dependable electronic switch on the market today

“Field-Effect” Sensing Technology - NO MOVING PARTS
Eliminates the #1 failure mode in traditional sump pump systems

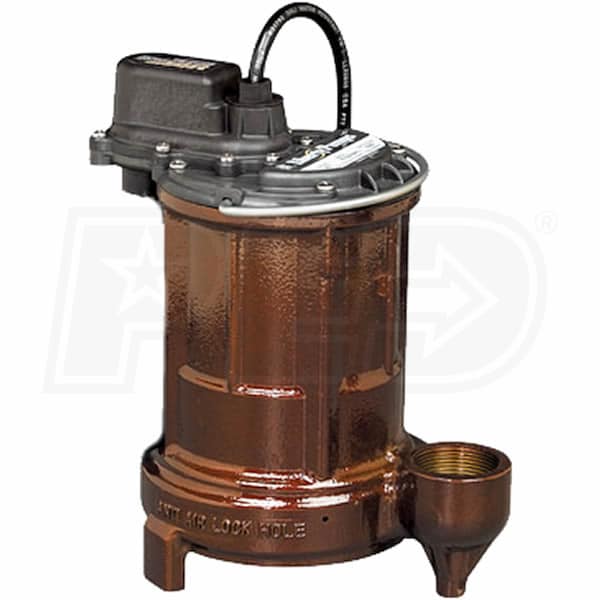

Submersible Cast Iron Sump Pump
A "workhorse" designed for years of reliable operation

Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
A solid, one-piece housing that eliminates lower motor seal

Rugged, Energy Efficient & Thermally Protected 1/3 HP Motor
Hermetically sealed, permanently lubricated design

High-Temperature, Engineered Polymer Impeller
Vortex style design for superior solid handling

High Capacity 1-1/2" Discharge
Will replace most pumps without any plumbing changes

Quick-Disconnect 10' Standard Power Cord
Allows for easy replacement of cord without breaking motor seals

416 Stainless Rotor Shaft & Non-Corrosive Stainless Fasteners
Increases the lifespan of the pump even in the harshest sump pits
Permanently lubricated bearings for extended pump life

3-Year Warranty on Pump & 5-Year Warranty on LevelGuard™

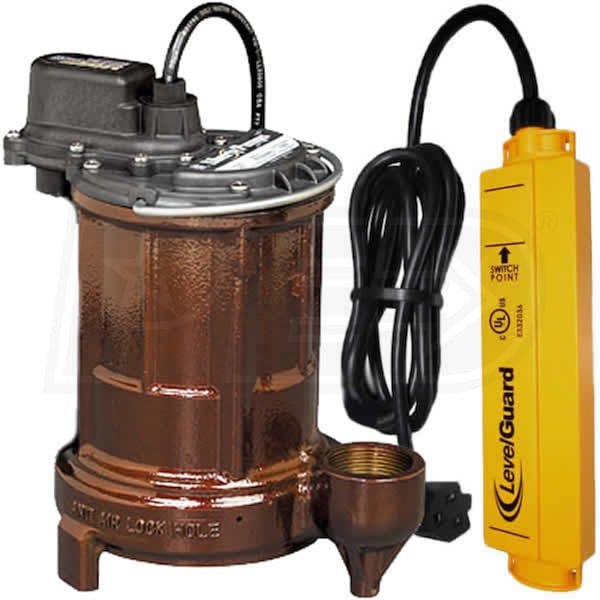

This Product is a Kit and contains the following items
1 x Liberty Pumps 250 - 1/3 HP Cast Iron Submersible Sump Pump (Non-Automatic) (250)

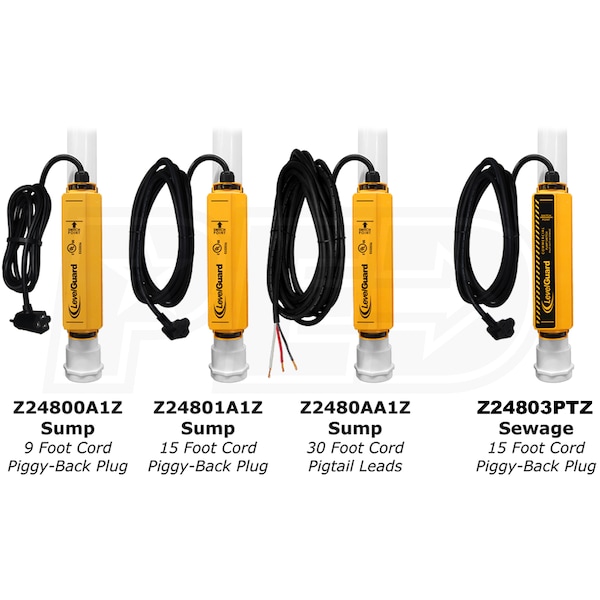

1 x LevelGuard Z24800A1Z - Electronic Sump Pump Switch (Z24800ALZ)


Base
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Electronic
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Weight
23 Pounds
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
10.7 Inches
Consumer Warranty
3 Years
Model
SPD-250KIT
Need Help? Ask Our Experts.
View Accessories For This Product.
Read Reviews
How-To Library
250 Specs
Base
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
No Switch
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Weight
23 Pounds
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
10.7 Inches
Consumer Warranty
3 Years
Z24800ALZ Specs
Motor
Power Cord Length
9 Feet
Pump
Float Type
Electronic
Overview
Made in USA
Yes
Weight
1.7 Pounds
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
Consumer Warranty
5 Years
Subject: Store ID: Product ID: Data Category: Brand Category:

*Ask Jim about the Liberty Pumps SPD-250KIT. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit
  1 Question
Q: How does the level guard switch work
by Gary R from Ohio on May 03, 2014

A: Thank you for your interest in Sump Pumps Direct. The LevelGuard switch works based on Field Effect sensing technology that was developed by TouchSensors, Inc out of Wheaton, IL.
Field-Effect sensors are digital, solid-state electronic devices that can detect conductive materials such as water or the human touch. The sensor’s cell design uses an integrated circuit (IC) that switches its output state when the conductive target is sensed. A Field-Effect cell is comprised of three main elements, the IC, a unique sensing electrode geometry, and two tuning resistors. Moreover, Field-Effect requires no moving parts, floats, software, or any other mechanism to operate.
When 5 VDC is supplied to the sensor, a low power, invisible field is created. The field emanates directly through any protective dielectric barrier such as plastic or glass that may surround or cover the sensor. When a conductive object or material enters the field, the sensor detects the change and indicates an event has occurred with a corresponding output signal. The input stimulus to the field is typically water in most liquid level sensing applications, as is the case in TouchSensor’s™ LevelGuard Home Sump Pump Control product line.
by Jim, Product Expert
