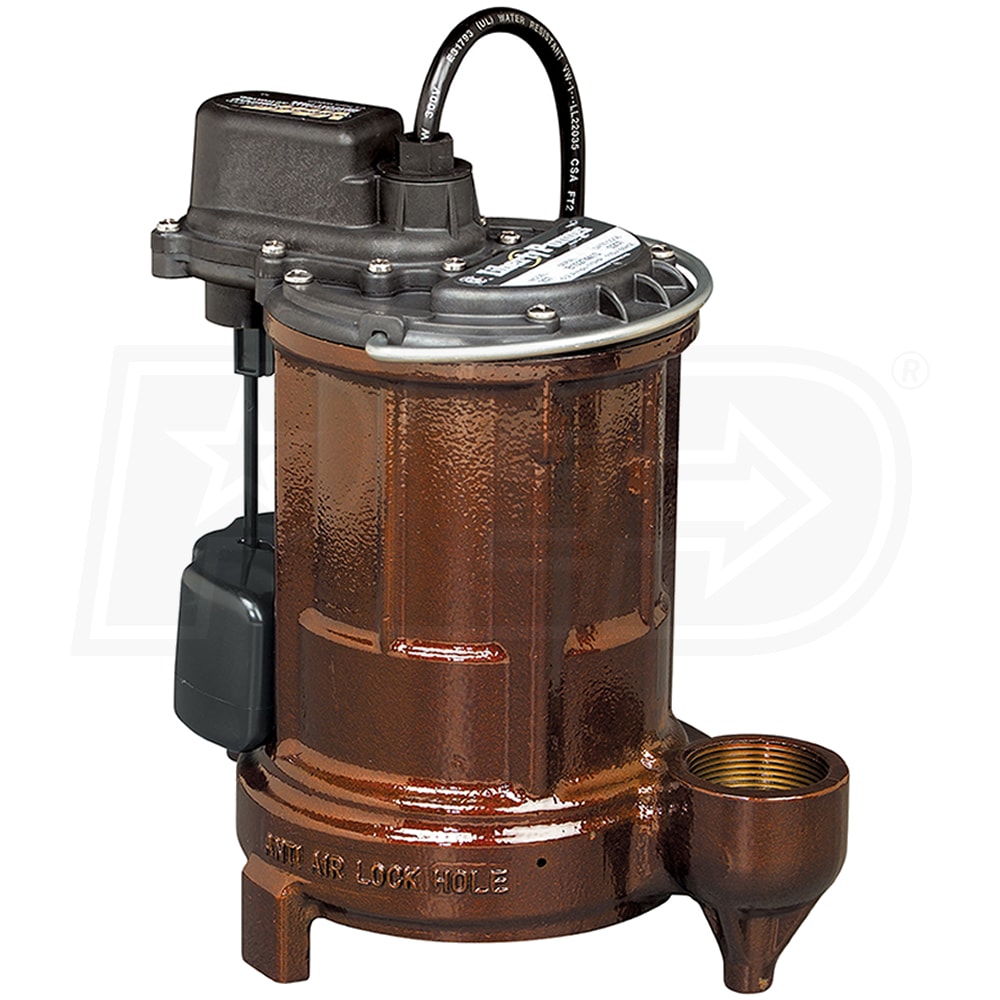

Liberty Pumps 257 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float
Model: 257
+
Share This Product
-
Product Description
-
183Reviews
-
5Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
3000
Gallons
Switch Type

Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Cast Iron Sump Pump
- A "workhorse" designed for years of reliable operation
- Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
- A solid, one-piece housing that eliminates lower motor seal
- Magnetically Operated Vertical Float Switch
- Provides automatic operation in sump pits as small as 10-inches
- Rugged, Energy Efficient & Thermally Protected 1/3 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest sump pits
- 416 Stainless Steel Rotor Shaft
- With permanently lubricated bearings for extended pump life
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Impeller Material
Composite
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float

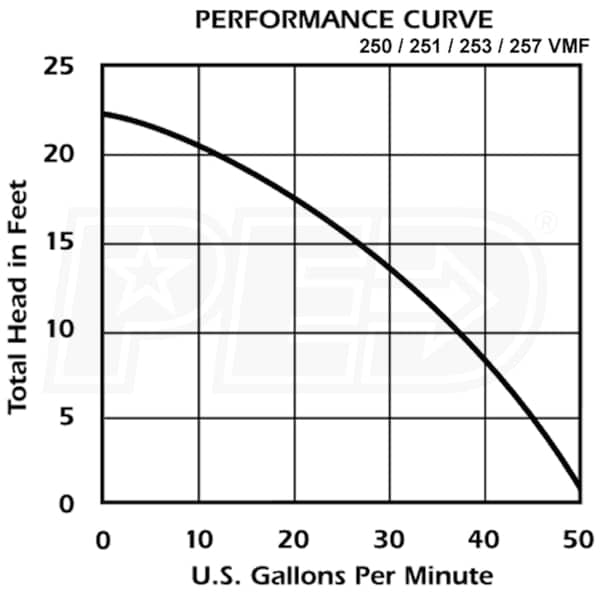

GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Max Head
22 Feet
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
21 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
10.7 Inches
UPC
671812002577
Style

GPH
3000
Gallons
Switch Type

Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Cast Iron Sump Pump
- A "workhorse" designed for years of reliable operation
- Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
- A solid, one-piece housing that eliminates lower motor seal
- Magnetically Operated Vertical Float Switch
- Provides automatic operation in sump pits as small as 10-inches
- Rugged, Energy Efficient & Thermally Protected 1/3 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest sump pits
- 416 Stainless Steel Rotor Shaft
- With permanently lubricated bearings for extended pump life
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Impeller Material
Composite
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Max Head
22 Feet
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
21 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
10.7 Inches
UPC
671812002577
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Impeller Material
Composite
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Max Head
22 Feet
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
21 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
10.7 Inches
UPC
671812002577
Product Q&A
(5)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
How reliable is the magnetic vertical float, and can it be replaced or repaired if it fails in 2-3 years?
Richard K.
from New Jersey
February 03, 2017
Answer
The Liberty VMF vertical float switch has been very reliable and probably one of the more reliable switches. While these are more prone to fail however, over the actual pump, they can be replaced if needed. Unfortunately, we do not offer these, so you would need to contact Liberty tech support (800-543-2550) for assistance on this when needed.
Was this answer helpful?
Yes

1
No

0
+−
This pump requires a 10" diameter basin, but what about depth? Could I use it in a 5 gallon bucket that has an 11 inch diameter, and is 14 inches deep? My window well space is too small for a 22" deep sump basin
B Crotty
from Colorado
July 04, 2016
Answer
B Crotty,
I would not recommend putting a sump pump in a 5-gallon bucket.
18x22 is a standard basement pit.
How high vertically & how far horizontally are you pumping?
I would not recommend putting a sump pump in a 5-gallon bucket.
18x22 is a standard basement pit.
How high vertically & how far horizontally are you pumping?
Was this answer helpful?
Yes

0
No

0
+−
is the switch replacable & how much thanks
Richard G
from Michigan
December 03, 2014
Answer
The switch is replaceable however we do not offer these parts. These can be obtained through the Liberty Pumps WEBSITE. Please refer to them for pricing and availability.
Was this answer helpful?
Yes

1
No

0
+−
Considering making the Liberty model 257 my primary sump pump and then making our existing Zoeller an emergency backup. We have a lot of iron in our water. Would the aluminum model 237 be better or worse for high iron content?
Scott S
from Maine
September 08, 2013
Answer
There really isn’t an advantage over cast iron or aluminum for you application. My concern would be the iron building up on the float of a model 237 and not allowing it to operate properly. You would need to periodically inspect it and clean it off. The other option if you have the room is to go with a model 233 which has a tether float switch.
Was this answer helpful?
Yes

1
No

0
+−
What kind of warranty do you have on your pumps?
John
from Pennsylvania
July 03, 2012
Answer
Pump warranties vary from 1 year to 5 years depending on the pump and the manufacturer. That being said, all pumps should last a good 5-7 years or more providing they are installed properly.
Was this answer helpful?
Yes

1
No

1
