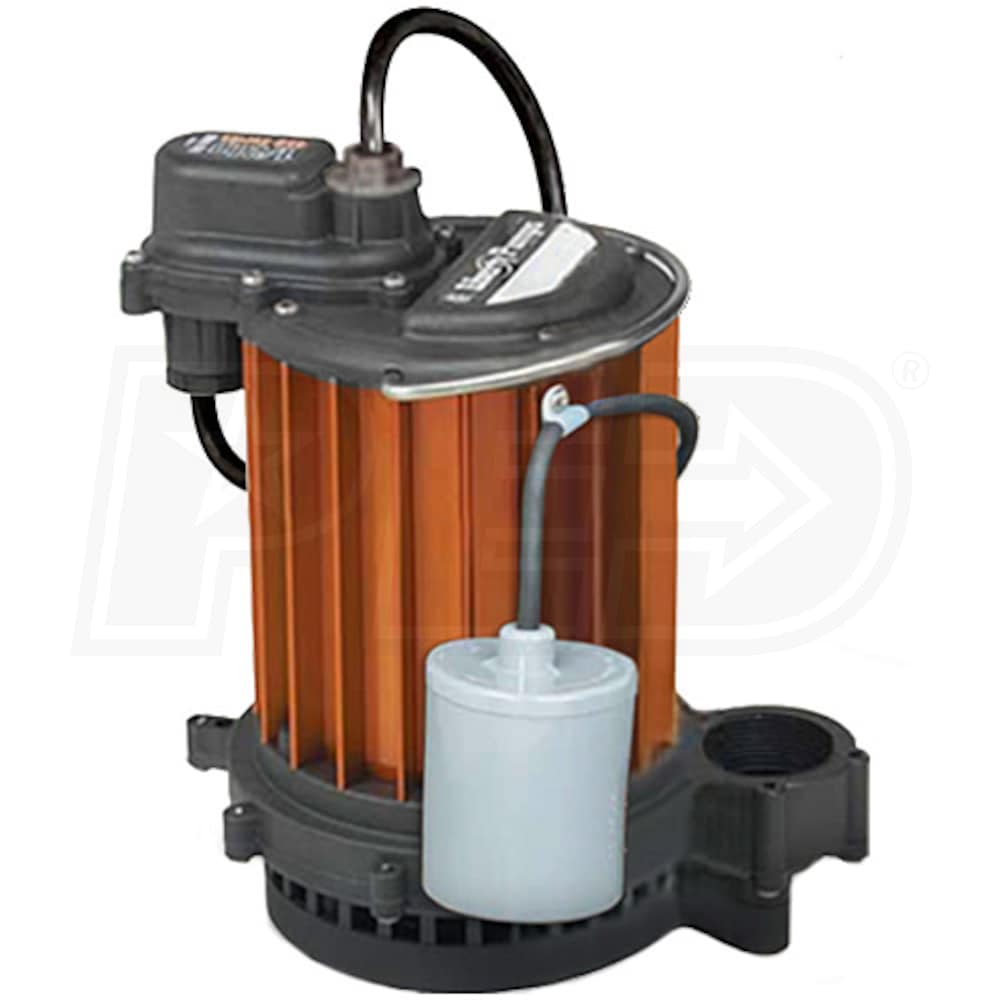

Liberty Pumps 233 - 1/3 HP Aluminum Submersible Sump Pump w/ Piggyback Tether Float
Model:
233
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
2640 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Automatic Aluminum/Polypropylene Sump Pump
- A superior value for average water removal
- Deep Finned Powder Coated Aluminum Motor Housing
- Provides 225% more cooling capacity than cast iron housings
- Quick-Disconnect Wide Angle Piggyback Tether Float Switch
- Provides automatic operation in sump pits as small as 14-inches
- Rugged & Thermally Protected 1/3 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Removable Pump Base
- Allows for suction down to 1/8"
- Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
- Increases the lifespan of the pump even in the harshest sump pits
- Permanently lubricated upper/lower bearings for extended life
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
233
General Information
Product Category
Sump Pump
Base
Base Material
Polypropylene
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Aluminum
Impeller Material
Composite
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2640
GPH @ 5 feet
2220
GPH @ 10 feet
1800
GPH @ 15 feet
1140
GPH @ 20 feet
240
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
10 Inches
Float Off
4 Inches
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Product Category
Sump Pump
Weight
12 Pounds
Consumer Warranty
3 Years
Product Length
9.625 Inches
Product Width
6.5 Inches
Product Height
10.5 Inches
UPC
671812002331
