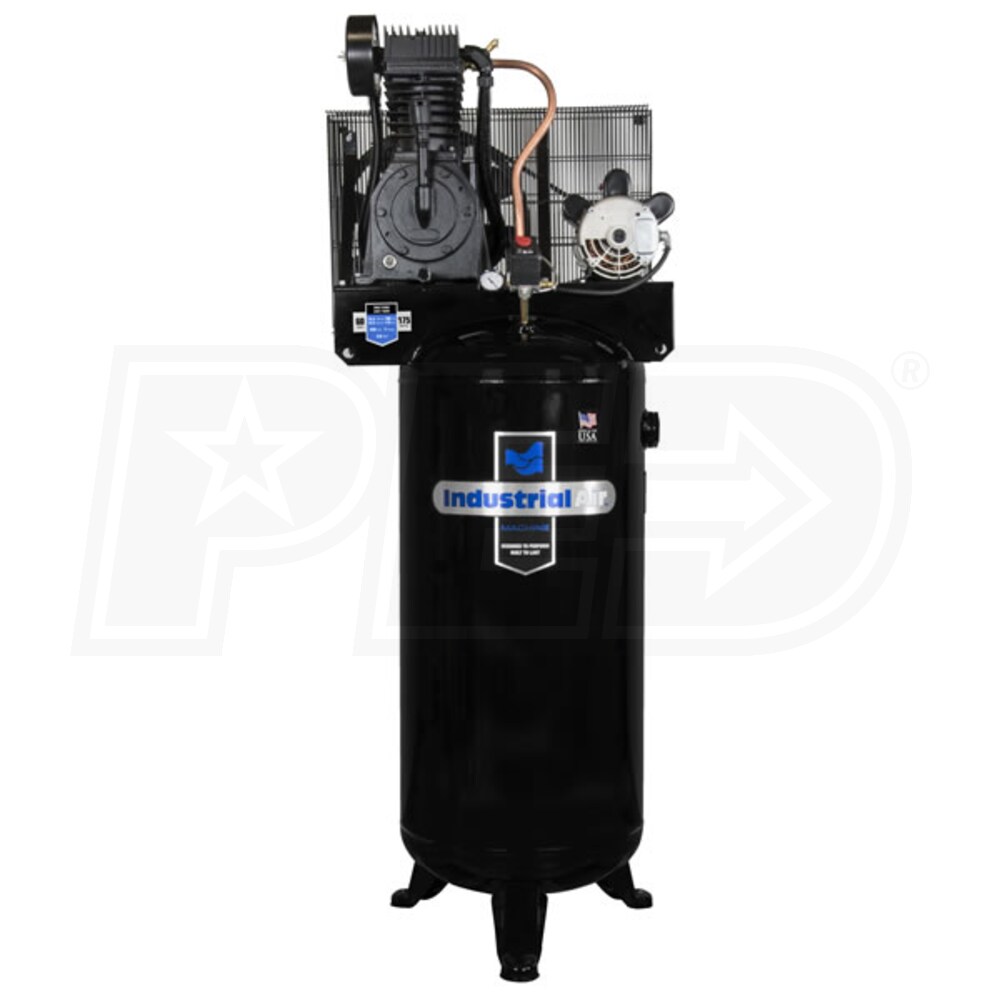

Industrial Air 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model:
IV5076055
+
Share This Product
Similar Products
$3,379.00
$999.00
$8,647.28
$2,397.00
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
12
Model: TRI-GD-1100P-GL
$65.00
Factory-Direct
Model: 21999-0390-Z-FD
$180.90
Only 1 In-Stock
$2,449.00
Only 1 In-Stock
Model: TRI-GD-2100P-GL
$95.00
Factory-Direct
$783.33
Factory-Direct
$1,229.99
Model: DXCM024-0400
$209.00
Factory-Direct
Model: 072-0030IA
$107.99
Factory-Direct
Model: FA40IH
$231.99
Factory-Direct
$235.00
Factory-Direct
$219.99
Factory-Direct
Model: 165-0320
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$146.00
Only 1 In-Stock
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
15.3
Tank Size
60
Industrial Air 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

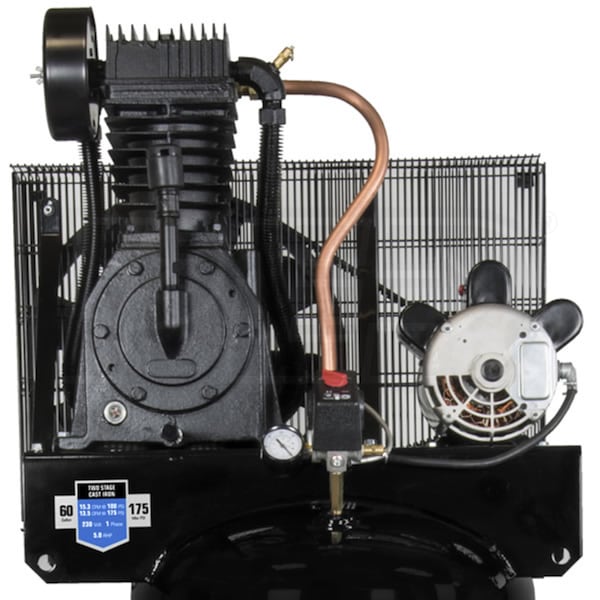

- Patented 2-Stage Pump Design
- Runs cooler, lasts longer
- Patented Piston Design
- Improved compression efficiency for optimum performance
- High efficiency finned copper intercooler increases valve life
- Patented Asymmetrical Cooling Fins
- Draws heat away from the precision bored cylinders
- Patented Cast Iron Flywheel
- Large, extended fins improve pump cooling & lower RPMs
- Electric Motor With Thermal Overload Protection
- Protects the motor from voltage fluctuations
- Wires easily into your 240 volt, single phase system
- Magnetic starter not required
- Compact 60-Gallon ASME Air Tank

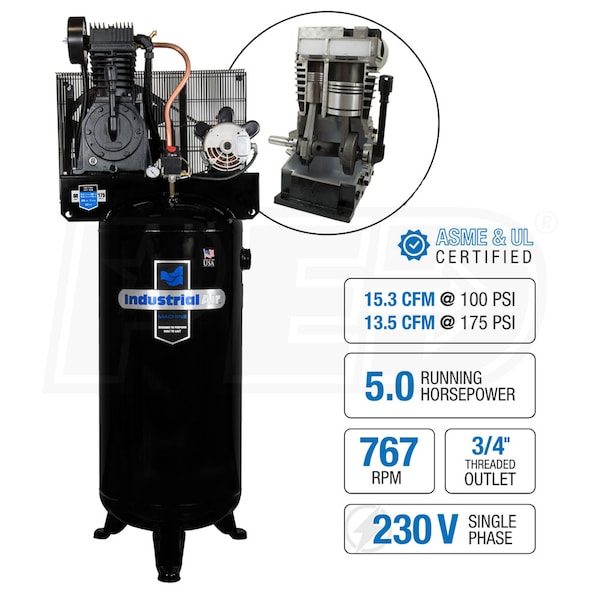

- 15.3 CFM at 100 PSI; 13.5 CFM at 175 PSI; 3/4" air outlet
- Optimizes shop space compared to a horizontal tank
- Unique Metal Belt Guard Design
- Improves pump cooling by as much as 60% over other designs
- 2 Year Factory Warranty
- Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
IV5076055
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
15.3
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Accessories
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Stationary
Weight
424 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
40 Inches
Product Width
31 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212057704
Reviews
(21)
Industrial Air IV5076055 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.43
(21 Ratings)
5
(16)
(16)4(2)
(2)3(0)
(0)2(2)
(2)1(1)
(1)
Virtual Powerhouse Of Air
By Jerome R.
Pennsylvania
Purchased 12/10/2024 |
Review Posted 01/08/2025

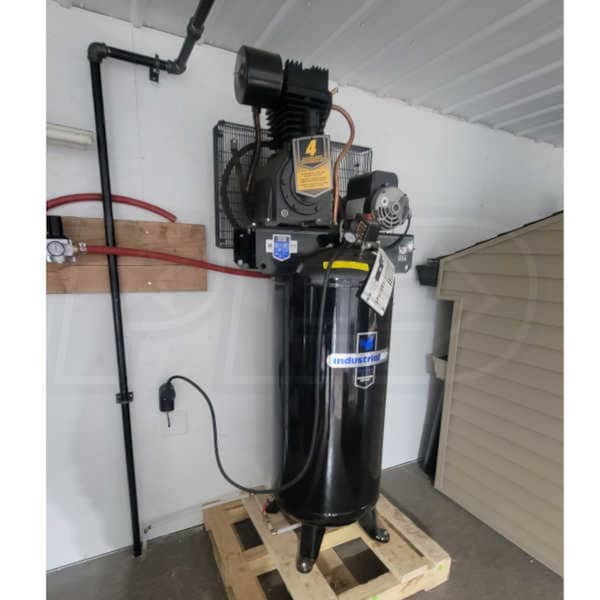

This "industrial air" unit is awesome!
We only had 10-3 electric supply wire. And the salesman found me this unit. It recovers as good or better than the Quincy equivalent.
We only had 10-3 electric supply wire. And the salesman found me this unit. It recovers as good or better than the Quincy equivalent.
Jerome R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I39d Buy It Again, High Quality, Exceeded Expectations, Less power supply needed then other brands
Cons:
None
Compressor Works Great
By Mike B
Michigan
Review Posted 08/19/2022
Plenty of air volume, very quiet, easy to hook up and good quality material.
Mike B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Id Buy It Again, Easy To Store
Cons:
None, Packaging, Poor choice of crate material. Very flimsy. Part of the crate broke. Lucky it didnt get damaged. Driver couldnt tie it down because it was encased in such flimsy broken wood
Solid Compressor
By Al O
Kentucky
Review Posted 08/18/2022
Appears to be solidly built I only have 1.5 hours on it. Had to tighten some fittings as it had slow leak. Pressure switch cuts out at 160 not 175, not a big deal as my regulators only go to 150. I do not think I will even pursue this issue. Has good CFM does all I need air tools and painting. I bought the maintenance kit to extend warranty to 4 years. I also installed an hour meter to keep track of hours. So far all good.
Al O Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, I'd Buy It Again
Blame It All On COVID-19 - Logistic Communication:
By Mark A.
Fort Valley, Georgia
Purchased 04/15/2021 |
Review Posted 05/03/2021
My comments are not directed toward the Industrial Air Compressor but more at the Logistics management and communication in which I had to painfully endure. My Industrial Air Compressor took 5-6 weeks before the first delivery. The lack of communication on the delivery schedule was disappointing at best. The Industrial Air Compressor arrived by truck laying on its side. I did not accept delivery. I called and reported the non-acceptance of the Industrial Air Compressor to Air Compressor Direct. I was promised a call to provide a new shipping and arrival date. Two weeks later I received an email stating that my Industrial Air Compressor had delivered. But in reality, the email was for the damage Industrial Air Compressor arrived back at the manufacture. So in reality the company does not release the new replacement unit until the damaged Industrial Air Compressor is recovered at the manufacture. About 10 days later I received the undamaged Industrial Air Compressor. The Industrial Air Compressor is operational and holding pressure. The bottom line is would I purchase an Industrial Air Compressor again or recommend the Industrial Air Compressor. The answer is yes. I would not recommend Air Compressors Direct very disappointed. I am sure this will all be blamed on COVID-19 and not the fact that the communication was unsatisfactory.
Mark A. Recommends This
Was this review helpful?
Expert Response
Hello Mark, First and foremost thank you for your purchase of the IV5076055 - Industrial Air 5-HP 60-Gallon Two-Stage Air Compressor. We apologize for the miscommunication. Unfortunately, we are notified that damaged orders are refused. We did put the No Charge Replacement order on the day you notified us and emailed with the new order information. We are sincerely sorry that you did not feel like you were treated with professionalism and courtesy. That is definitely not the experience we strive for. Please be assured that I will send your comments to our Customer Service manager so they can coach the folks involved. It may help to know that we read every review, no matter how many stars it was given- our customer's feedback is the best way to improve our service.
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
4/5
4/5
4/5
Bad Start To This Story, Hopefully The Ending Gets Better
By Troy M.
Gaston, Oregon
Purchased 12/26/2020 |
Review Posted 02/24/2021
Item was delivered almost a month later than promised. Unit was DOA on arrival with a faulty pressure switch that I am trying to resolve with the factory. I ordered the unit two months ago and it is still not working...
Troy M. Does Not Recommend This
Was this review helpful?
Expert Response
Hello Troy, First and foremost thank you for your purchase of the Industrial Air 5-HP 60-Gallon Two-Stage Air Compressor. We appreciate you taking the time to provide us with your feedback and we can certainly understand your aggravation. Thank you for updating us that you finally received the failed part and the compressor is now working.
We appreciate your business and apologize for any inconvenience.
We appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Manufacturer Response
We are sorry to hear that this Industrial Air 60 gal. air compressor did not meet your expectations. Please contact Product Services at 1-888-895-4549 and they will be able to discuss with you further about the issues you are having with your air compressor.
Rating Breakdown
4/5
1/5
2/5
2/5
Pros:
Price
Cons:
Unreliable
Limited Use, No Issues So Far
By Chip H.
Oklahoma City, Oklahoma
Purchased 10/31/2020 |
Review Posted 01/22/2021
Purchased from ACD late 2020 while it was on sale & backordered. Selected for the descent CFM for the size, slow pump speed and price compared to the perceived quality of the components. Note: while this unit says it spins the pump at 767 rpm, Industrial Air's own parts list says the max pump speed should be 650 RPM. Asking ACD about this, they provided the manufacturers technical support toll free number. Since this compressor will see light use in my home, I wasn't too concerned and decided not to follow up with the manufacturer.

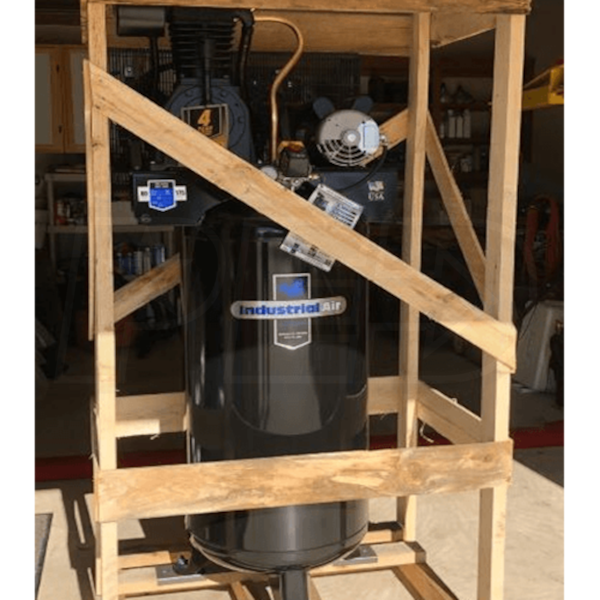

Unit arrived undamaged, covered in plastic, bolted on metal plates to a pallet with some wood protecting the sides and top. Unfortunately it Was fastened to the pallet with carriage bolts with the threads up. This put the head down with the hex under the head pulled only into the wood. I was unable to stop the bolts from spinning so there was no way to remove the nuts. I used an angle grinder with a thin cut off wheel to grind through the bolts above the compressor feet, between the nut and washer.
Set the unit on anti-vibration pads and shimmed it level. Discovered the pump was a few ounces low on oil. Used oil from the warranty kit to top it off to the red dot.
Mine filled from 0 to a 170 PSI cut out pressure in about 5 min 45 seconds. (note - if you fill from 0 the tank warms so pressure will drop slightly as the air in the tank cools - it's not leaking) Noise level seems reasonable. Unit is leak free, all fasteners tight, belt in good alignment, black powder coating looks good. No issues with the build.
One annoyance - the red knob on the Condor pressure switch vibrates and buzzes. I stopped it by wrapping a rubber band between the shaft and cover mounting screw on the inside to keep tension on the knob. I also wrapped a small rubber band around/under the knob on the outside.
I wish it came with a remote drain. I added one. I also added an hour meter to track usage.
Only 1 hour of run time so far, which includes the break in period at minimal pressure. Am happy with the compressor. Be sure to budget for the items you'll need or want such as the electrical installation, pipe fittings, ball valves, hose whip, filter, regulator, lines, remote drain, etc.
Unit arrived undamaged, covered in plastic, bolted on metal plates to a pallet with some wood protecting the sides and top. Unfortunately it Was fastened to the pallet with carriage bolts with the threads up. This put the head down with the hex under the head pulled only into the wood. I was unable to stop the bolts from spinning so there was no way to remove the nuts. I used an angle grinder with a thin cut off wheel to grind through the bolts above the compressor feet, between the nut and washer.
Set the unit on anti-vibration pads and shimmed it level. Discovered the pump was a few ounces low on oil. Used oil from the warranty kit to top it off to the red dot.
Mine filled from 0 to a 170 PSI cut out pressure in about 5 min 45 seconds. (note - if you fill from 0 the tank warms so pressure will drop slightly as the air in the tank cools - it's not leaking) Noise level seems reasonable. Unit is leak free, all fasteners tight, belt in good alignment, black powder coating looks good. No issues with the build.
One annoyance - the red knob on the Condor pressure switch vibrates and buzzes. I stopped it by wrapping a rubber band between the shaft and cover mounting screw on the inside to keep tension on the knob. I also wrapped a small rubber band around/under the knob on the outside.
I wish it came with a remote drain. I added one. I also added an hour meter to track usage.
Only 1 hour of run time so far, which includes the break in period at minimal pressure. Am happy with the compressor. Be sure to budget for the items you'll need or want such as the electrical installation, pipe fittings, ball valves, hose whip, filter, regulator, lines, remote drain, etc.
Chip H. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
5/5
Pros:
Price, Features, Id Buy It Again, quality of the assembly
Cons:
Packaging, Does not come with remote drain
Great Compressor
By Eugene M.
Enterprise, Alabama
Purchased 01/25/2020 |
Review Posted 03/11/2020
I purchased this compressor to replace an overworked 2hp Eagle compressor. I have a small/medium sized shop. The Eagle (while also a good compressor) just could not keep up. I have only had the new compressor for about 6 weeks, but so far it has performed flawlessly. Just today we were simultaneously running a small blast cabinet, powder coating booth, and laser engraver. No shortage of air and the compressor was working well short of 50% on time. It's a beast! Also my desiccant drier now only needs to be recharged once a week instead of every other day. Wish I had done this a long time ago.
Shipping was less than a week to my door. Unit was well packed.
Shipping was less than a week to my door. Unit was well packed.
Eugene M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, High Quality, Id Buy It Again, Exceeded Expectations
Update
By Mitchell N.
Quail Valley, California
Purchased 12/17/2019 |
Review Posted 01/19/2020
Compressor arrived without oil in pump, received oil. The unit won't build to pressure to 175 psi and cuts out at 160 psi then leaks down to 155 /150psi. In just about an hour. Called ACD and MAT Industries, no support to warranty. MAT wants to send me the part to work on myself but they told me I couldn't wire it when first installed and paid an electrician to do it but now they want me to install a new pressure switch which requires the same wiring. I have not heard from them yet on this matter.
Mitchell N. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost thank you for your purchase of the Industrial Air 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase). We are very sorry for the issues you have experienced with our new compressors. We do have notes from Industrial Air on the 8th indicating their customer service department has been working directly with you and have discussed sending out the replacement oil and that you have been in contact with them regarding leak issue several days later.
If the matters have not been resolved please call us.
We appreciate your business and we're confident the Industrial Air folks will take good care of you.
If the matters have not been resolved please call us.
We appreciate your business and we're confident the Industrial Air folks will take good care of you.
Dale V.
Power Equipment Expert
Rating Breakdown
1/5
1/5
1/5
1/5
Cons:
Low Quality, Unreliable, Durability, No support on warrenty
No Oil In Compressor On Arrival
By Mitchell N.
Menifee, California
Purchased 12/17/2019 |
Review Posted 01/10/2020
I can't say much about performance yet because I'm waiting for an electrician. I would do it myself but I don't want to lose the warranty. The compressor arrived with no oil. I called ACD as well as the manufacturer and sent in paperwork but haven't heard anything yet. I used oil from the maintenance kit.
Mitchell N. Recommends This
Was this review helpful?
Expert Response
First and foremost thank you for your purchase of the Industrial Air 5-HP 60-Gallon Two-Stage Air Compressor. We are very sorry the oil did not arrive with the air compressor. We did speak with you directly regarding this on January 8th and requested oil to be shipped from Industrial Air. Industrial Air did verify they are working directly with you and have talked to you on the 8th regarding the oil.
Please accept our apologies for your disappointment and inconvenience!
Please accept our apologies for your disappointment and inconvenience!
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Price, Features
Cons:
Packaging
Seems Decent Quality Time Should Tell
By Danny W.
Plainview, Illinois
Purchased 08/07/2019 |
Review Posted 09/02/2019
One problem I dislike was wiring. Everything suppose to be in conduit but yet the pressure switch does not have a knock out for conduit its seems to be set up for a clamp for pigtail. Went to lots problems to find out were this was made even though it looks like made in USA. The tank is made in USA but the pump and motor are not the made in USA. Sticker says made in USA with some foreign parts. I had to call manufacturer to find out this info. Hopefully I have no problems do yourself a favor, if you buy this buy the maintenance kit to double the warranty. It has 6 quarts oil 3 new belts and 3 new air filters
Danny W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
5/5
Pros:
Price, Features
Cons:
No knock out for conduit
Product Q&A
(3)
Product Questions
Answered by Melissa, the Air Compressor Expert
Does it have an automatic "low oil shut off"?
Steven E.
from Montana
December 29, 2019
What size air hose is required for this compressor? The description says 3/4 inch outlet at the tank.
Joe
from Texas
October 09, 2019
What is the motor RPM?
Kevin
from Texas
December 06, 2018
