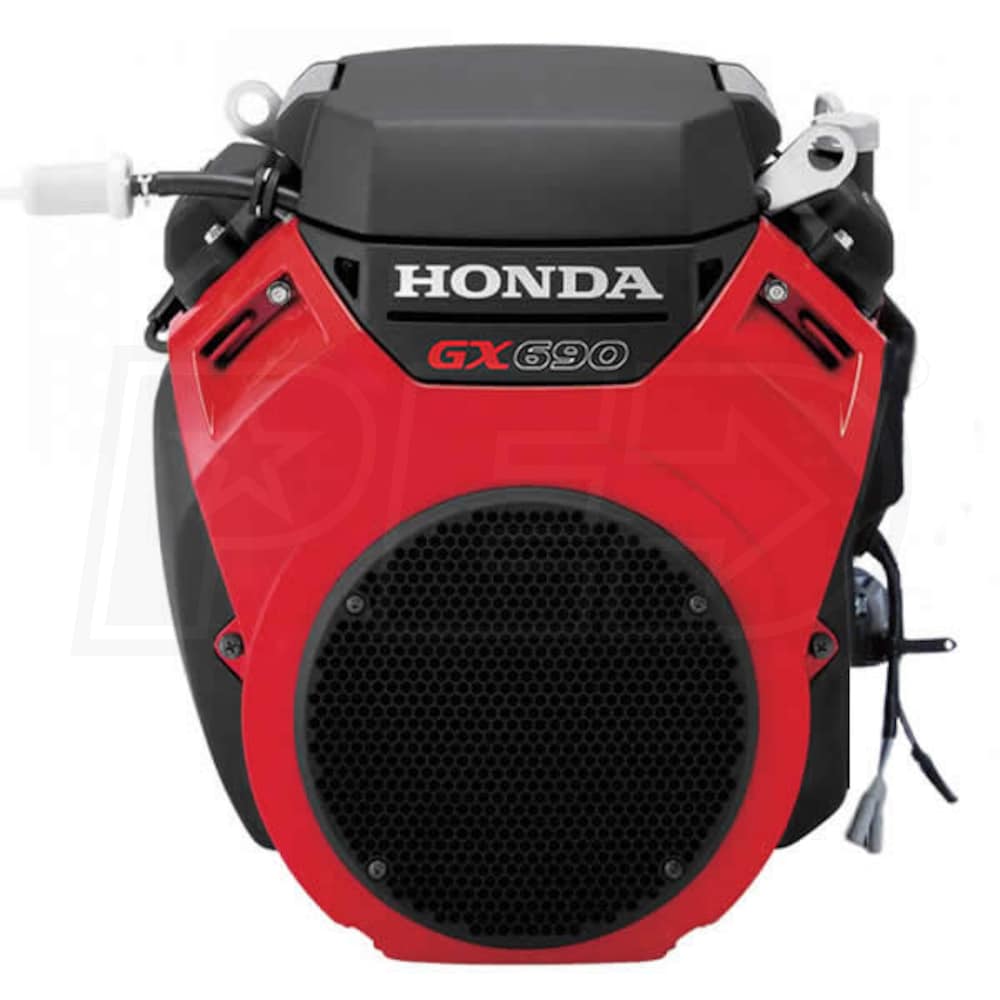

Honda GX690™ 688cc V-Twin OHV Electric Start Horizontal Engine, 17A Charging, 1-1/8" x 2-29/32" Crankshaft
Honda GX690™ 688cc V-Twin OHV Electric Start Horizontal Engine, 17A Charging, 1-1/8" x 2-29/32" Crankshaft
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# GX690RHTDW - 17A Charging, 1-1/8" x 2-29/32" Crankshaft
- 3-Year Consumer & 3-Year Commercial Warranty
- For pressure washers, commercial lawn/garden & forestery equipment
- Honda GX690™ Commercial V-Twin Air-Cooled 4-Cycle Gas Engine
- Produces 35.6 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
- V-Twin Technology w/ Hemispherical Combustion Chamber
- High-compression ratio engineering for maximum power
- Extremely efficient high power output, without having to use Premium Fuel
- Honda's Variable Timing Digital CDI Ignition
- RPM based design, with built-in rev-limiter, optimizes ignition timing
- Easier starting, more power, less fuel use and reduced emissions
- High-Capacity Oil Pump w/ Spin-On Oil Filter
- Provides full pressure lubrication to the flywheel, PTO & connecting-rod bearings
- Lower operating temps. helps reduce friction & increase engine longevity
- Two Barrel Butterfly-Valve Inner-Vent Carburetor & Built-In Fuel Pump
- Optimizes air/fuel ratio for proven fuel efficiency
- Large Diameter Air Intake & High Capacity 36-Blade Cooling Fan
- Increase the cooling performance while reducing noise
- Forged Steel Crankshaft & Aluminum Pushrods w/ Steel Tips
- Integrated Cylinder/head for less weight, lower vibration, & quieter operation
- 12V (Shift Type) Electric Starter (Cables Not Included)
- Automatic mechanical decompression system improves starting performance
- Also Includes: 17-Amp Charging System
- Remote (Wire) Throttle / Choke Controls (No Control Box)
- Note - GX V-Twin Series Engines - Fuel Tank & Muffler Not Included
- EPA & CARB Compliant - No Catalyst Required
Specifications
Engine
Engine Series
Honda V-Twin Commerical
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
96.8 Lbs
CC
688 CCs
HP
22.5 HP
Net Torque
35.6 Lbs
Cylinder Bore Type
Aluminum
Bore
3.10 Inches
Stroke
2.80 Inches
Compression Ratio
9.3:1
Systems
Starting System
12-Volt Key Start
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 2-29/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
2-29/32"
Crankshaft End Tapped Size
7-16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Made in USA
No
Weight
110 Pounds
Product Length
15.9" Inches
Product Width
16.1" Inches
Product Height
17.2" Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
