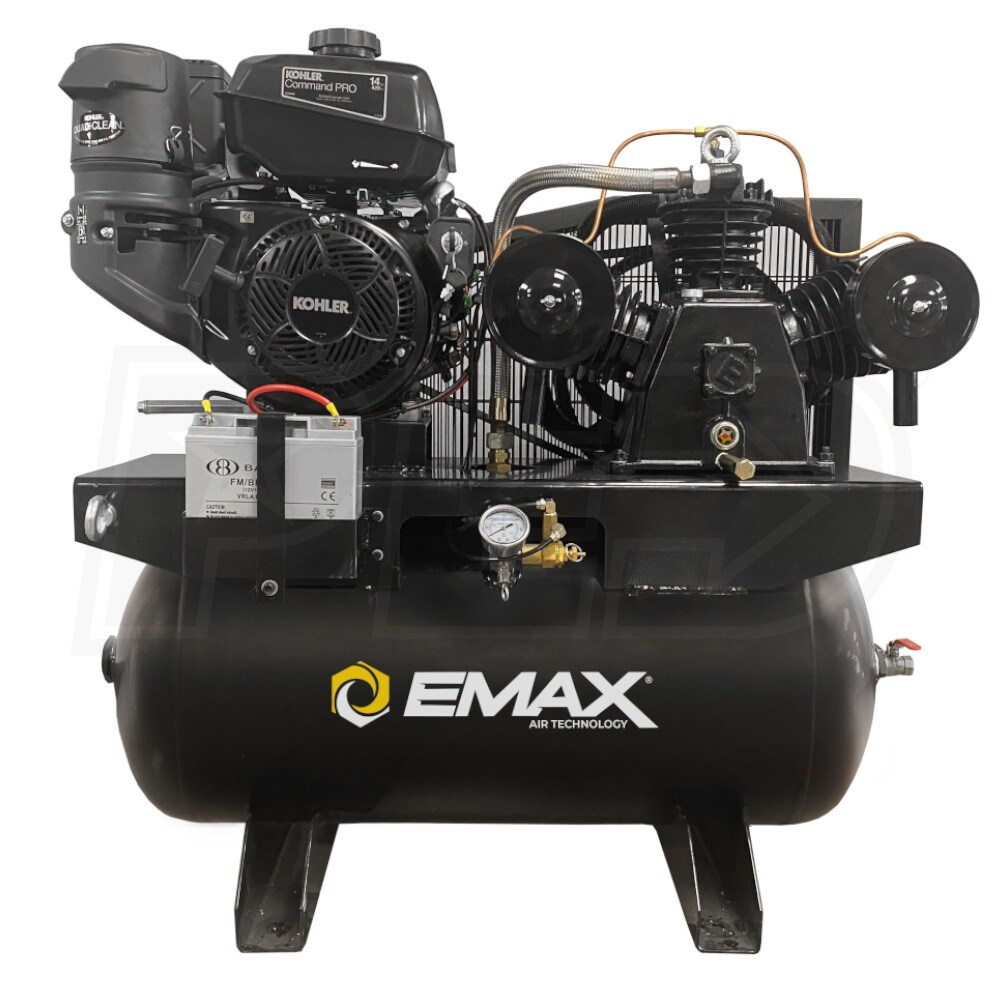

EMAX 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine

Model:

EGES1430ST

Write A Review
$2,199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Dec 5th
Shipping to60601

EMAX 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine
EMAX 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine
Model: EGES1430ST
$2,199.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Kohler

CFM

24

Tank Size

30

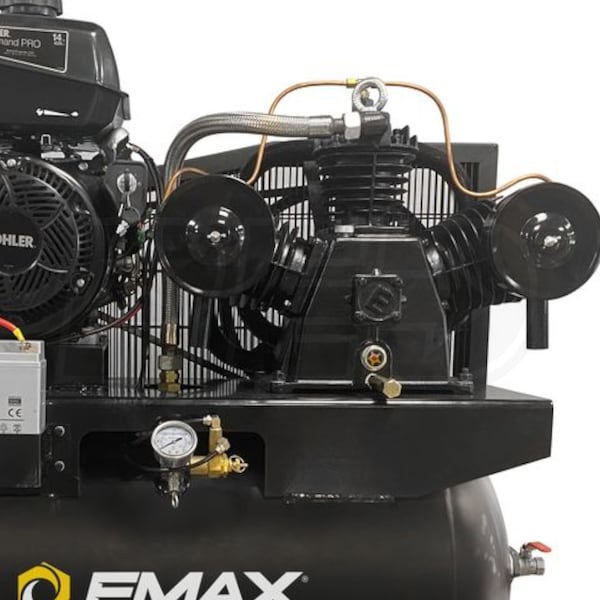

  • Gas Drive Series Two-Stage Cast Iron Pump
  • Site glass to view oil level, quiet design and low RPM
  • Head unloaders allow for load-less starting and help cool the pump
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)

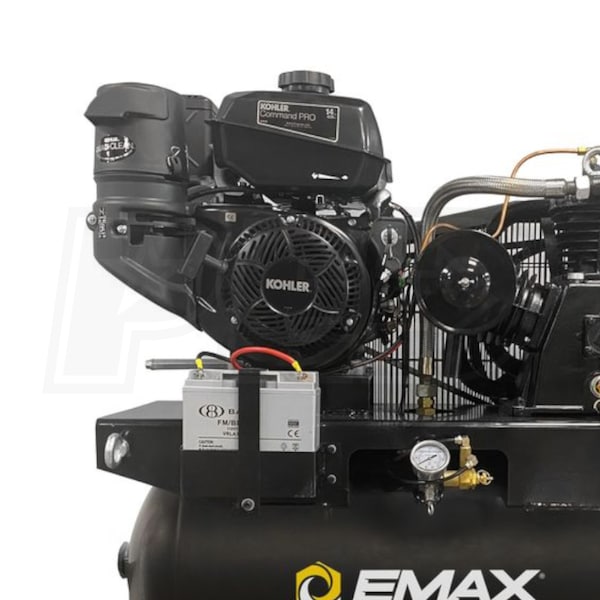

  • 14-HP Kohler CH440 Command Pro Engine w/ Electric Start
  • OHV design provides excellent torque and fuel efficiency
  • Quad-Clean™ all-season four-stage cyclonic air filter
  • Performance-driven with electronic ignition, cast-iron cylinder liner & large fuel tank
  • Air-Stream Technology
  • Provides up to 50% longer pump life
  • Cool-Tek – The Coolest Running Compressors In The Industry
  • Reduces moisture build up and extends pump life
  • Belt Tension Adjuster
  • Reduces vibration and extends belt life
  • Twin belts offer better belt grip and longer belt drive
  • 30-Gallon Truck-Mount Horizontal Air Receiver
  • Ball valve drain and large pressure gauge
  • 1 Year Standard and 5 Year Extended with Purchase of Maintenance Kit
  • ***Includes Electric Start Battery & Cables***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

EGES1430ST
specs product image PID-104905
General Information
Product Category
Air Compressor - Portable
Engine
HP
14
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Consumer Engine Warranty
3
Commercial Engine Warranty
3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
490 Pounds
CARB Compliant
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
18.5 Inches
Product Width
43 Inches
Product Height
44 Inches
Power Type
Gas
UPC
815002018522
