Briggs & Stratton 40326
Briggs & Stratton 40326
Hover to zoom
1 of 1
Sorry, this product is no longer available.
Try this product instead

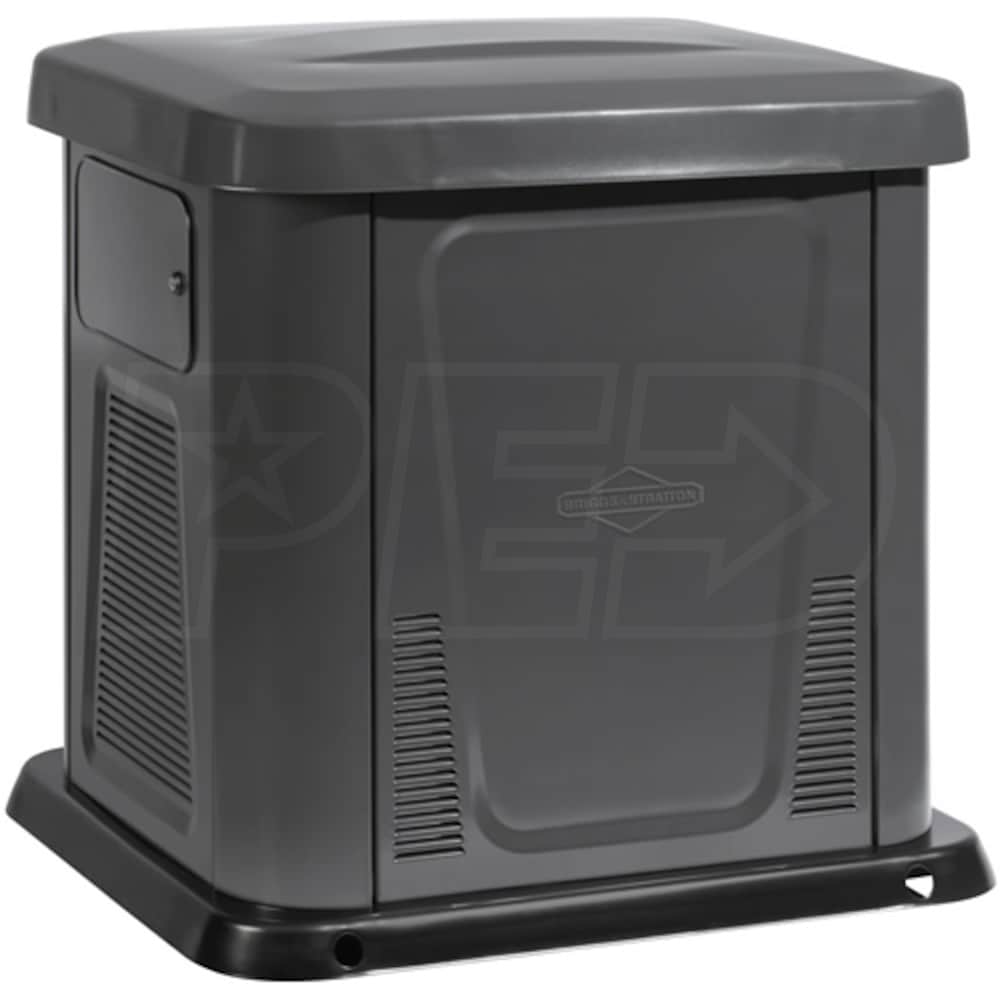

Briggs & Stratton 12kW Home Standby Generator
Briggs & Stratton 12kW Home Standby Generator
Model: 40326
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Optional Accessories 1
$24.99
Only 2 In-Stock

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

12,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Briggs and Stratton OHV

  • 12 kW Fully Automatic Standby Generator
  • Automatically starts when utility power is lost
  • Advance Power Management (Transfer Switch Sold Separately)
  • Combine with ATS to manage up to two 4-Ton AC units
  • Streamlined, Space Saving Design
  • Sleek, compact profile blends in next to central AC unit
  • 803 cc Briggs & Stratton Professional Series Engine
  • Engineered to commercial specs for years of reliable service
  • Durable Galvaneal Steel Outdoor Enclosure
  • Provides years of rustproof outdoor protection
  • Computer Friendly :)
  • Safe for use with advanced electronics and computers
  • New Enclosure Design - 15% More Compact
  • Streamlined design meets the power needs of your whole house
  • Turn-Key Extras:
  • Pre-Filled with Synthetic Oil
  • Battery Charger
  • Hour Meter & Diagnostics Alerts with System Status
  • 5 years Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

40326
specs product image PID-7711
Overview
Weight
535 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
34.6 Inches
Product Width
39.4 Inches
Product Height
38.5 Inches
UPC
011675403263
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Surge Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
11000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
119 ft³/hr
NG Fuel Consumption @ 100% Load
197 ft³/hr
LP Fuel Consumption @ 50% Load
1.42 gallons/hr
LP Fuel Consumption @ 100% Load
2.3 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74.5 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (600 CCA)
Enclosure
Steel
A/C Ton Rating
3-Tons
Mounting Pad
Steel (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton OHV
CC
803 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes

Reviews

(2)
Briggs & Stratton 40326 Reviews & Ratings
Verified Buyer
Verified Buyer
Buying new...
By Jim
California
Purchased 02/21/2014 |
Review Posted 09/15/2014
The generator is just what we needed for a smaller house. But, we made a mistake. We bought a brand new generator to replace an older 7KW that we wore out.

We didn't buy a new switch since the switch was specifically designed for the Briggs generators up to 15kw. The first time the power went out the generator ran for 30 minutes then shutdown due to an under voltage fault.

It took the electrician several trips out and phone calls too numerous to count before they tracked down the issue to the transfer switch motherboard. If you buy a new generator, buy a new switch!
Jim Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
Briggs On-the-phone Technicians Are Very Knowledgable But Service
Verified Buyer
Verified Buyer
I feel better
By Raymond P.
Hurricane, West Virginia
Purchased 10/30/2012 |
Review Posted 11/21/2012
This is my first large generator, and the 18 wheeler delivered it on time. I was wondering about unloading it into the back of my Chevy Truck. The tail gate lift worked great and the generator was in good shape. After the driver and I unloaded the generator into my truck I took the generator home.

I had a 2x6 set up to lift her off my truck, with the generator being at that point 605 pounds. I used a wide strap and looped it through the crate it was in, and lifted it up off my truck bed- that was a lot of weight. I eased the generator slowly to the ground with my Red Devil, all the while hoping my 2x6 would hold the weight; so that part worked out.

From there I knew I could put the generator in place with my electric winch. Over the next day or so I dug out a level area and winched the generator into place. Since I'm an electrician I wired her into my outside electrical box.

Then I set up a 100 pound propane tank that should give me a few days run time when the power goes out. Your local hardware can help with plumbing your propane. By the way, I did install the new jet for propane. After checking for leaks with soapy water, I was ready for a test run.

To my surprise the generator fired right up and I did an electrical test to make sure I was getting all my power; and sure enough I was.

I feel better having this generator so I'll not lose everything in my refrigerator next time the power goes out for a week or two. I think with the stronger storms people need a Home Standby Generator.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
