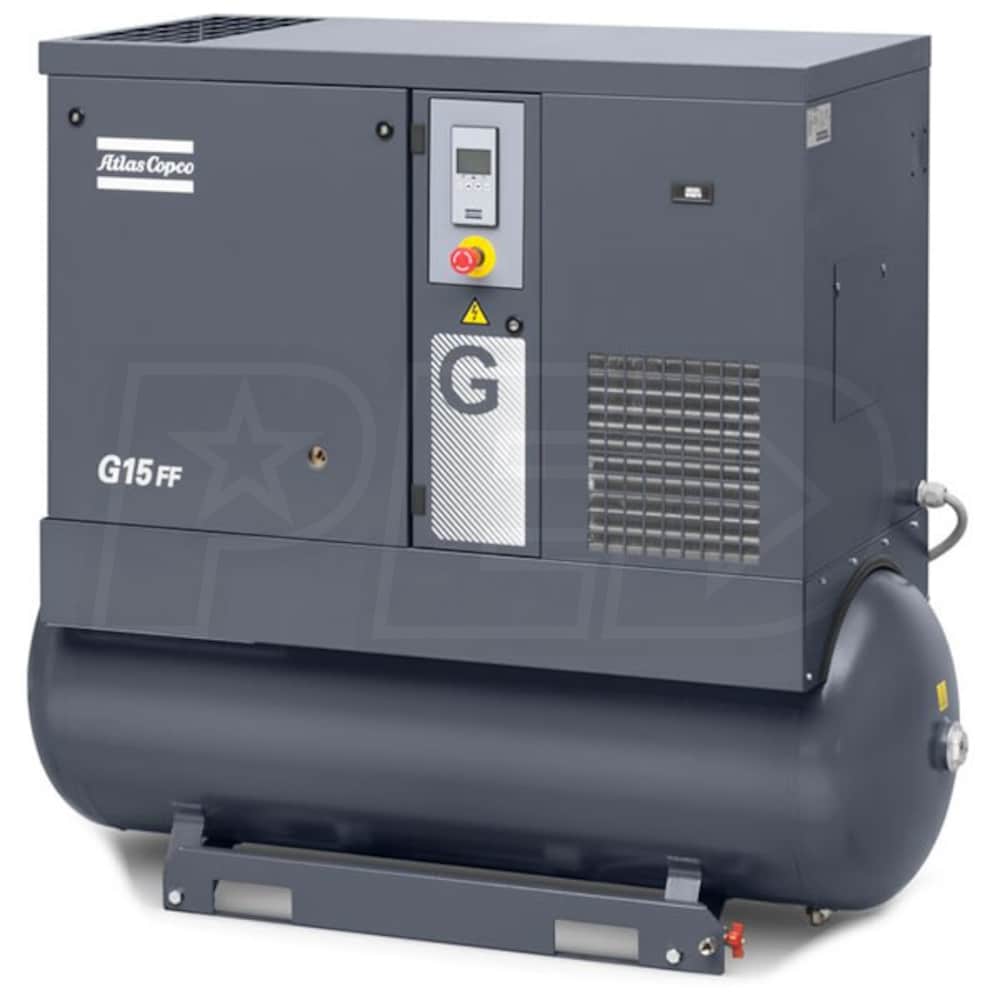

Atlas Copco G15 20-HP 132-Gallon FF Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)

Atlas Copco G15 20-HP 132-Gallon FF Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model: 8153290898
$11,537.00
$10,383.30
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Free ShippingNo Sales Tax* (Except IL)$11,537.00$10,383.30Buy Now
Free FreightNo Sales Tax* (Except IL)$10,383.30Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial Grade Air Compressors
Style
Rotary Screw Air Compressors
CFM
64
CFM Rated @ 125 PSI
Tank Size
132
Gallons
Features
Features
  • Latest Generation Oil-Injected G Series
  • Ideal for small to medium businesses; quiet 68 dBA performance doesn't require separate compressor space
  • Operates at ambient temperatures up to 115F (46C); top discharge lets it fit in small spaces against a wall or corner
  • Full Featured Package With Built-In Refrigerant Dryer
  • Cools the compressed air & removes moisture, preventing rust damage to piping & tools
  • Advanced BASE Electronic Controller
  • Icon based, easy to understand display for pressure settings, temperature readings, service warnings, & running hours
  • Allows outlet pressure setting directly from the controller; easily monitor outlet temperature

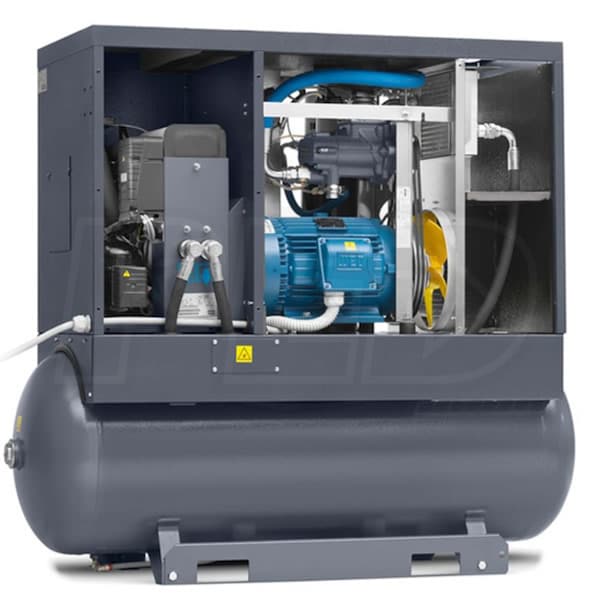

  • Robust & Efficient Belt-Driven Rotary Compression Element
  • Increases free air delivery by up to 3% compared to previous models
  • IP55 (TEFC) Motor
  • Meets or exceeds IEEE & NEMA premium efficiency standards with greased-for-life bearings
  • Load / No Load Control
  • Controller automatically switches for high, low, and intermittent air consumption
  • Saves power & improves reliability; delivers 62.8 CFM at 125 PSI; maximum 125 PSI
  • Versatile
  • Meets ISO 9001, ISO 14001 & ISO 1217 which insures a reliable, trouble-free air compressor
  • 132-gallon ASME air receiver has a 1/2-inch NPT air outlet; integrates easily with your equipment
  • Air-Oil Separator & Inlet Air Filter
  • 2-step separator system reduces oil consumption & protects lubrication quality
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
dBA
68
Engine
HP
20
Pump
CFM
64
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Pump Type
Rotary
Max PSI
125 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Water Separator
Yes
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Certification
NEMA, IEEE, ASME
Weight
1120 Pounds
Product Length
77 Inches
Product Width
26 Inches
Product Height
58 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Grade
Commercial Grade Air Compressors
Style
Rotary Screw Air Compressors
CFM
64
CFM Rated @ 125 PSI
Tank Size
132
Gallons
Features
Features
  • Latest Generation Oil-Injected G Series
  • Ideal for small to medium businesses; quiet 68 dBA performance doesn't require separate compressor space
  • Operates at ambient temperatures up to 115F (46C); top discharge lets it fit in small spaces against a wall or corner
  • Full Featured Package With Built-In Refrigerant Dryer
  • Cools the compressed air & removes moisture, preventing rust damage to piping & tools
  • Advanced BASE Electronic Controller
  • Icon based, easy to understand display for pressure settings, temperature readings, service warnings, & running hours
  • Allows outlet pressure setting directly from the controller; easily monitor outlet temperature
  • Robust & Efficient Belt-Driven Rotary Compression Element
  • Increases free air delivery by up to 3% compared to previous models
  • IP55 (TEFC) Motor
  • Meets or exceeds IEEE & NEMA premium efficiency standards with greased-for-life bearings
  • Load / No Load Control
  • Controller automatically switches for high, low, and intermittent air consumption
  • Saves power & improves reliability; delivers 62.8 CFM at 125 PSI; maximum 125 PSI
  • Versatile
  • Meets ISO 9001, ISO 14001 & ISO 1217 which insures a reliable, trouble-free air compressor
  • 132-gallon ASME air receiver has a 1/2-inch NPT air outlet; integrates easily with your equipment
  • Air-Oil Separator & Inlet Air Filter
  • 2-step separator system reduces oil consumption & protects lubrication quality
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
dBA
68
Engine
HP
20
Pump
CFM
64
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Pump Type
Rotary
Max PSI
125 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Water Separator
Yes
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Certification
NEMA, IEEE, ASME
Weight
1120 Pounds
Product Length
77 Inches
Product Width
26 Inches
Product Height
58 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Specs
+
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
dBA
68
Engine
HP
20
Pump
CFM
64
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Pump Type
Rotary
Max PSI
125 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Water Separator
Yes
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Certification
NEMA, IEEE, ASME
Weight
1120 Pounds
Product Length
77 Inches
Product Width
26 Inches
Product Height
58 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
