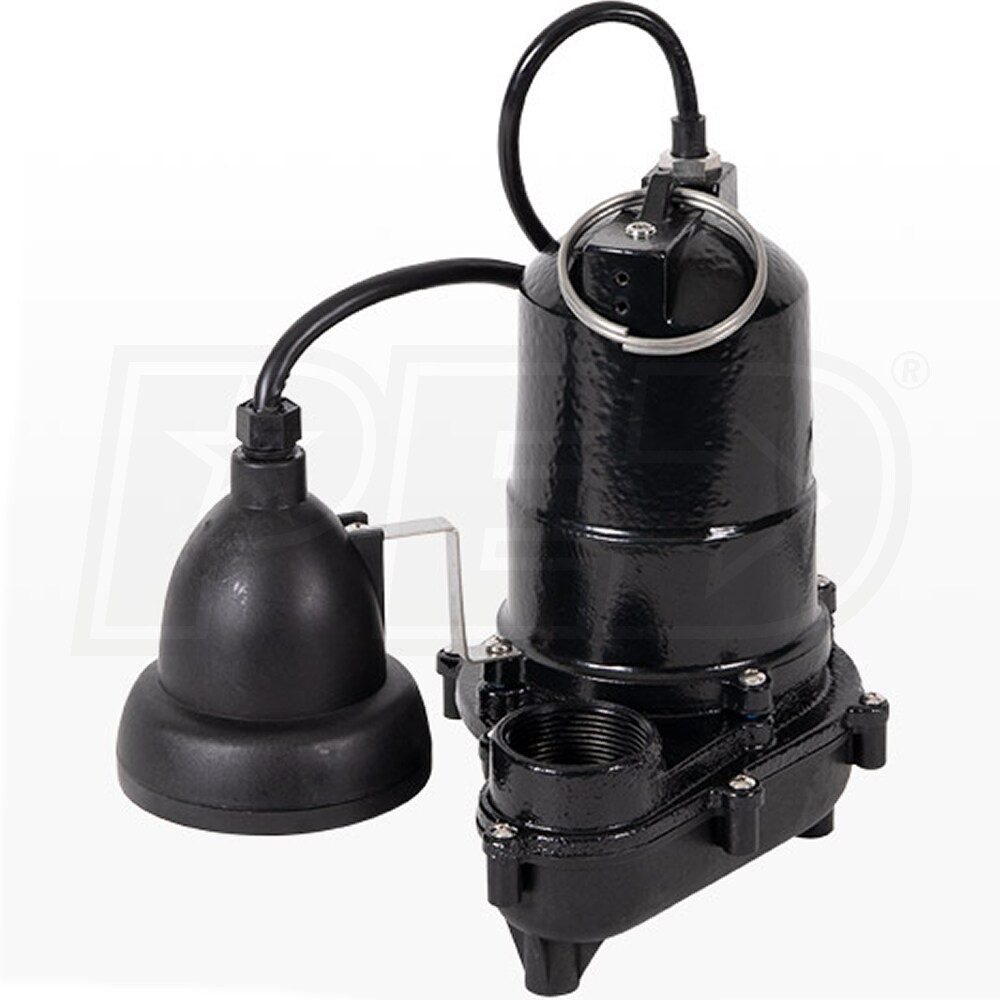

iON WC33i - 1/3 HP Cast Iron & Thermoplastic Sump Pump w/ Digital Level Control HP20157
Model: WC33I
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
2700
Gallons
Switch Type

Style
Primary
GPH
2700 Gallons
Switch Type
Ion
Features
Features
- iON WC33i - Automatic Submersible Sump Pump
- Ideal for heavy-duty sump applications
- Cast Iron Pump Housing & Thermoplastic Base
- Ensures years of reliable operation
- ION Digital Level Control
- First of a kind solid-state sensing technology w/ no moving parts
- 1/3 HP Thermally Protected Motor PSC Motor
- Energy-efficient design, uses half the AC power of most 1/3 HP pumps
- Carbon Ceramic Mechanical Seal
- Helps extend pump life in demanding applications
- 1-1/2" Discharge
- Easily pass solids up to 1/2"
- Compact Design
- Allows for 2 pumps to installed in standard 18" wide basin
- 10' Piggyback Pump and Switch Cord Assembly
- Made for easy serviceability
- Note* Minimum sump pump basin size 18" X 24"
- 3-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
4
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
0.5 inch
Handles Solids
Yes
Float Type
Ion Sensor

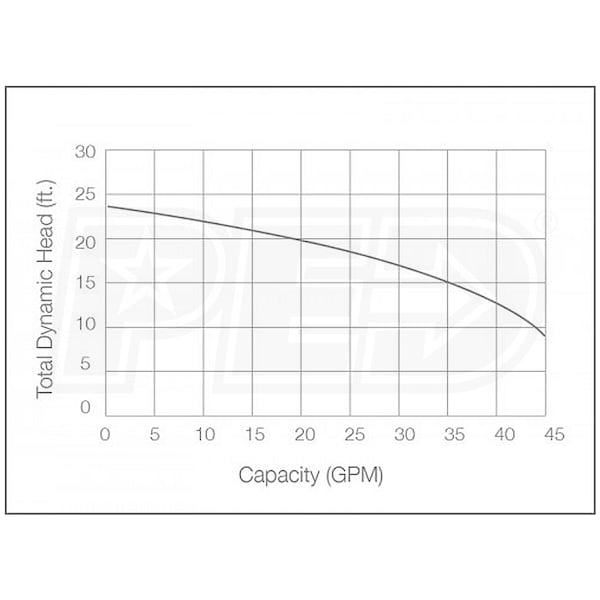

GPH @ 0 feet
2700
GPH @ 5 feet
2700
GPH @ 10 feet
2640
GPH @ 15 feet
2100
GPH @ 20 feet
1200
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
24 Feet
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
18 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
9 Inches
Product Height
10 Inches
Style

GPH
2700
Gallons
Switch Type

Style
Primary
GPH
2700 Gallons
Switch Type
Ion
Features
Features
- iON WC33i - Automatic Submersible Sump Pump
- Ideal for heavy-duty sump applications
- Cast Iron Pump Housing & Thermoplastic Base
- Ensures years of reliable operation
- ION Digital Level Control
- First of a kind solid-state sensing technology w/ no moving parts
- 1/3 HP Thermally Protected Motor PSC Motor
- Energy-efficient design, uses half the AC power of most 1/3 HP pumps
- Carbon Ceramic Mechanical Seal
- Helps extend pump life in demanding applications
- 1-1/2" Discharge
- Easily pass solids up to 1/2"
- Compact Design
- Allows for 2 pumps to installed in standard 18" wide basin
- 10' Piggyback Pump and Switch Cord Assembly
- Made for easy serviceability
- Note* Minimum sump pump basin size 18" X 24"
- 3-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
4
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
0.5 inch
Handles Solids
Yes
Float Type
Ion Sensor
GPH @ 0 feet
2700
GPH @ 5 feet
2700
GPH @ 10 feet
2640
GPH @ 15 feet
2100
GPH @ 20 feet
1200
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
24 Feet
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
18 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
9 Inches
Product Height
10 Inches
Product Specs
+−
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
4
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
0.5 inch
Handles Solids
Yes
Float Type
Ion Sensor
GPH @ 0 feet
2700
GPH @ 5 feet
2700
GPH @ 10 feet
2640
GPH @ 15 feet
2100
GPH @ 20 feet
1200
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
24 Feet
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
18 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
9 Inches
Product Height
10 Inches
