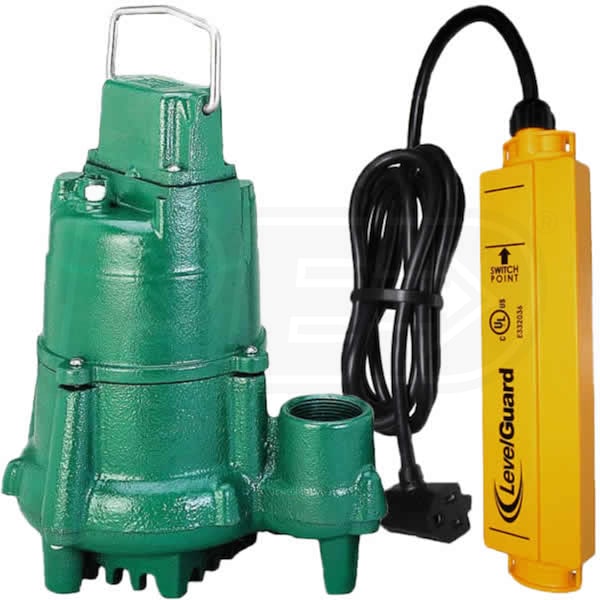

Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump w/ LevelGuard® Switch

Model:

SPD-N98KIT

Write a Review
$334.99
Free Shipping
  Learn More About Free Freight
Backordered
Estimated Availability March 03, 2022
Shipping to60601

Free Shipping$334.99Buy Now
Free Shipping$334.99Visit Site
Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump w/ LevelGuard® Switch
Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump w/ LevelGuard® Switch
Model: SPD-N98KIT
$334.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

4320 Gallons

Switch Type

Electronic



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Includes LevelGuard® Electronic Sump Pump Control
  • The most dependable electronic switch on the market today
  • “Field-Effect” Sensing Technology - NO MOVING PARTS
  • Eliminates the #1 failure mode in traditional sump pump systems
  • Submersible Non-Automatic Cast Iron Sump Pump
  • Offers years of reliable, trouble-free operation
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Thermally Protected, Permanent Split Capacitor Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Powder Coated Epoxy Finish
  • Provides a corrosion resistant exterior
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 3-Year Warranty on Pump & 5-Year Warranty on LevelGuard™
  • Product Includes
    • (1) Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic) (N98)
    • (1) LevelGuard Z24800A1Z - Electronic Sump Pump Switch w/ 9' Cord (Z24800ALZ)
California residents see
Warning: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic) (N98)
  • (1) LevelGuard Z24800A1Z - Electronic Sump Pump Switch w/ 9' Cord (Z24800ALZ)
SPD-N98KIT
specs product image PID-13261
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
29.2
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Electronic
GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
23 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514029470
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
29.2
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
23 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
Z24800A1Z
Motor
Power Cord Length
9 Feet
Pump
Float Type
Electronic
Overview
Weight
1.8 Pounds
Made in USA
No
Consumer Warranty
5 Years
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches

Reviews

(32)
Zoeller SPD-N98KIT Reviews & Ratings

Product Q&A

(5)
Product Questions Answered by Jim, the Sump Pump Expert
Will level guard work if I get an orange build up in my sump pit over a year or two?
Evan Tuxbury
from Massachusetts
November 20, 2017
Will the LevelGuard sensor in this configuration work in a separate lift / effluent tank being pumped to a mound? No solids should be going from the septic tank to the lift or effluent tank. I know LevelGuard sells a sewage sensor, but it seems this sensor should work fine where no large solids are present. Thanks ... Bill
Bill A
from Minnesota
October 22, 2015
Jim: Is the "LevelGuard Switch" resistant to build up on its surface? My sump water seems to be high in calcium...it builds up deposits on the pumps and floats. I generally have to de-scale my pumps and floats every 1-2 years. Thanks in advance, Wayne
Wayne J
from Minnesota
December 20, 2014
My Zoller pump has a threaded female connector on the body. What am I expected to put between the pump body and the bottom clamp of this check valve?
BN
from California
September 17, 2014
How does the level guard switch work
Gary R
from Ohio
May 03, 2014
