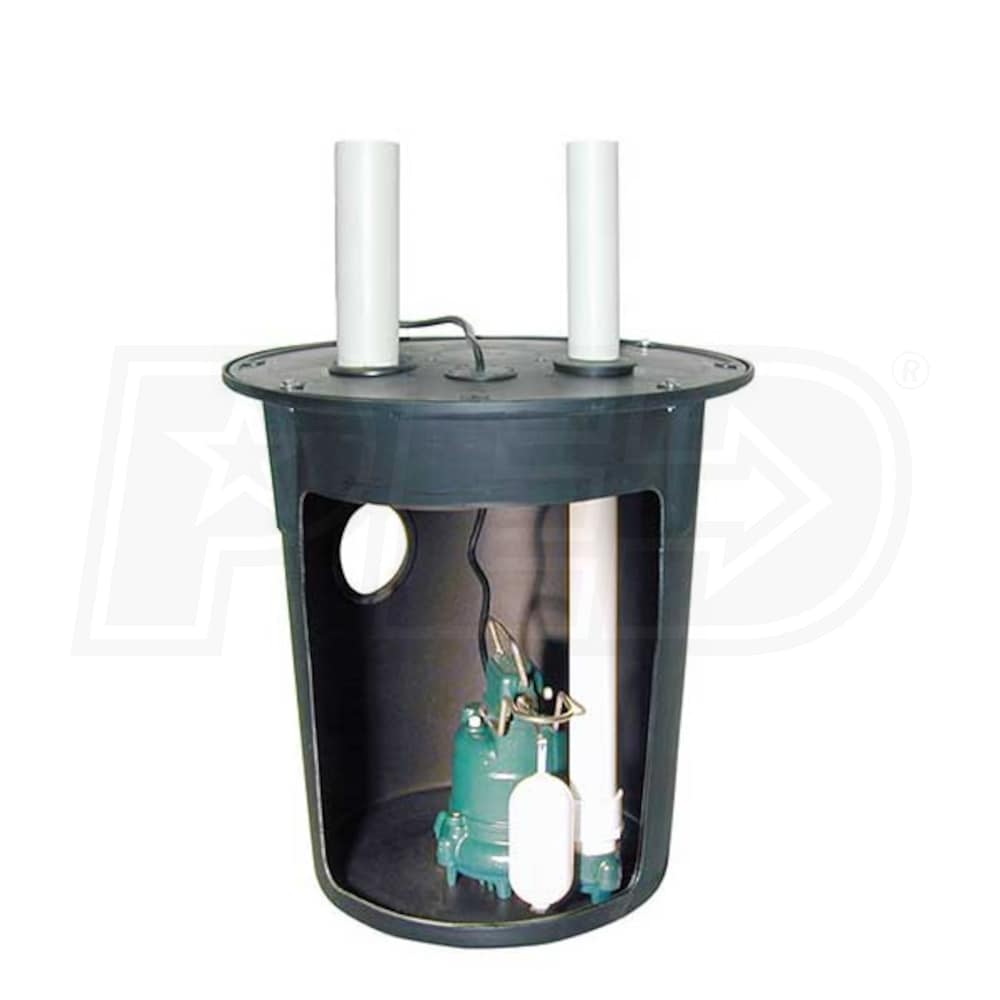

Zoeller 900-0002 - 1/3 HP Cast Iron Preassembled Sump Pump System (18" X 22" Basin)
Model: 900-0002
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$316.80
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Free Shipping$316.80Buy Now
Free Shipping$316.80Visit Site
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller 900 Series Preassembled Standard Sump Pump System
  • Job ready for a fast and easy installation
  • No Assembly Required
  • Drop it in the hole-and-go!
  • Automatic Submersible M53 Sump Pump w/ Vertical Float Switch
  • Ideal for average water removal
  • Cast Iron Switch Case, Motor & Pump Housing w/ Engineered Thermoplastic Base
  • Designed for rapid heat dissipation and extended life
  • Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Clog-Resistant Design - Capable Of Passing 1/2" Dim Solids
  • No screen to interfere with flowing debris
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 18" x 22" Polyethylene Basin w/ 4" Inlet
  • Pump switch is installed 180° from inlet
  • Discharge pipe is plumbed with a predrilled 3/16" vent hole
  • Polyethylene Cover w/ 2" Vent & 1-1/2" Discharge
  • Electric cord seal in cover ease of use
  • Includes cover seal and bolts
  • 3-Year Consumer Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Assembly Required
No
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514145026
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller 900 Series Preassembled Standard Sump Pump System
  • Job ready for a fast and easy installation
  • No Assembly Required
  • Drop it in the hole-and-go!
  • Automatic Submersible M53 Sump Pump w/ Vertical Float Switch
  • Ideal for average water removal
  • Cast Iron Switch Case, Motor & Pump Housing w/ Engineered Thermoplastic Base
  • Designed for rapid heat dissipation and extended life
  • Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Clog-Resistant Design - Capable Of Passing 1/2" Dim Solids
  • No screen to interfere with flowing debris
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 18" x 22" Polyethylene Basin w/ 4" Inlet
  • Pump switch is installed 180° from inlet
  • Discharge pipe is plumbed with a predrilled 3/16" vent hole
  • Polyethylene Cover w/ 2" Vent & 1-1/2" Discharge
  • Electric cord seal in cover ease of use
  • Includes cover seal and bolts
  • 3-Year Consumer Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Assembly Required
No
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514145026
