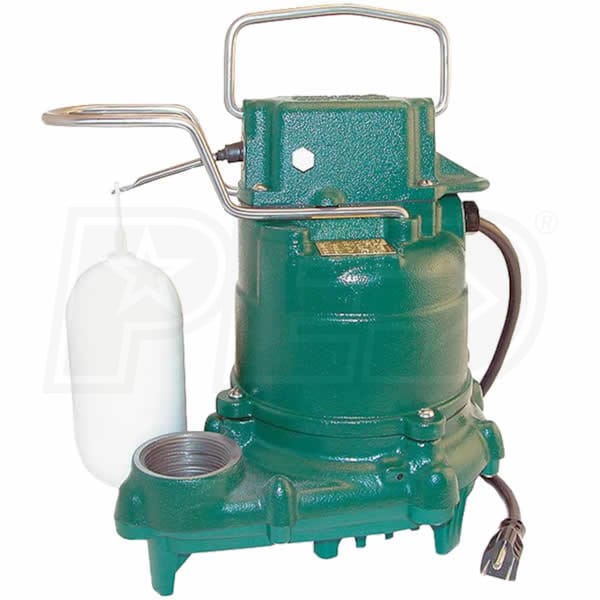

Zoeller M57 - 1/3 HP All Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Zoeller M57 - 1/3 HP All Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Our Price
Compare Prices
Shipping Info
Model: M57
(Based on expert analysis, manufacturer ratings and customer reviews)
4.9 out of 54.9 out of 54.9 out of 54.9 out of 54.9 out of 5
Number of Reviews (15)
Write A Review
$193.50
In-Stock
Ships Thursday, Oct 17th
Shipping Crate Icon
Free Shipping
In-Stock Free Shipping$193.50Buy Now
In-Stock Free Shipping$193.50Visit Site
In-Stock
Ships Thursday, Oct 17th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 15
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Model 57 All Cast Iron Switch Case, Motor, Pump Housing & Base
  • Heavy duty design for maximum heat dissipation and extended life
  • Automatic Submersible Sump Pump
  • Ideal for average water removal
  • 3/10 HP Shaded Pole Motor (1550 RPM)
  • Energy efficient, only draws less than 10 Amps
  • Thermally Protected Motor w/ Automatic Reset
  • Oil-filled and hermetically sealed to prevent overheating
  • Reliable Float Operated, 2-Pole Mechanical Float Switch
  • Stainless steel switch arm, guard & handle so rust is not an issue
  • 1-1/2" NPT Discharge & Non-Clogging Cast Iron Vortex Impeller
  • Screenless, bottom intake designed to pass solids up to 1/2"
  • U/L Oil Fed Cast Iron Bearings & Carbon/Ceramic Shaft Seal
  • Provides durability, less heat for extended protection
  • Neoprene "O" Ring
  • Keeps a watertight seal between motor and pump housing
  • 9' Power Cord
  • UL Listed 3-wire cord w/ 3-prong plug
  • Industry Leading Quality Control - Pressure Tested After Assembly
  • 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514024055
Additional Model Numbers
57-0001, M57
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Model 57 All Cast Iron Switch Case, Motor, Pump Housing & Base
  • Heavy duty design for maximum heat dissipation and extended life
  • Automatic Submersible Sump Pump
  • Ideal for average water removal
  • 3/10 HP Shaded Pole Motor (1550 RPM)
  • Energy efficient, only draws less than 10 Amps
  • Thermally Protected Motor w/ Automatic Reset
  • Oil-filled and hermetically sealed to prevent overheating
  • Reliable Float Operated, 2-Pole Mechanical Float Switch
  • Stainless steel switch arm, guard & handle so rust is not an issue
  • 1-1/2" NPT Discharge & Non-Clogging Cast Iron Vortex Impeller
  • Screenless, bottom intake designed to pass solids up to 1/2"
  • U/L Oil Fed Cast Iron Bearings & Carbon/Ceramic Shaft Seal
  • Provides durability, less heat for extended protection
  • Neoprene "O" Ring
  • Keeps a watertight seal between motor and pump housing
  • 9' Power Cord
  • UL Listed 3-wire cord w/ 3-prong plug
  • Industry Leading Quality Control - Pressure Tested After Assembly
  • 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514024055
Additional Model Numbers
57-0001, M57
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514024055
Additional Model Numbers
57-0001, M57
Reviews
(15)
+
Zoeller M57 Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
if M-53 and M-57 are the same except for the impeller and base, will the replacement switch 004705 for the M-53 work with the M-57? I want the cast iron impeller, but want to be able to secure a replacement switch in the future.
Robert Gore
from Virginia
July 05, 2016
Answer
Robert,

The float switch is the same on the M-53 and the M-57.

Please let us know if we can help with anything else.
