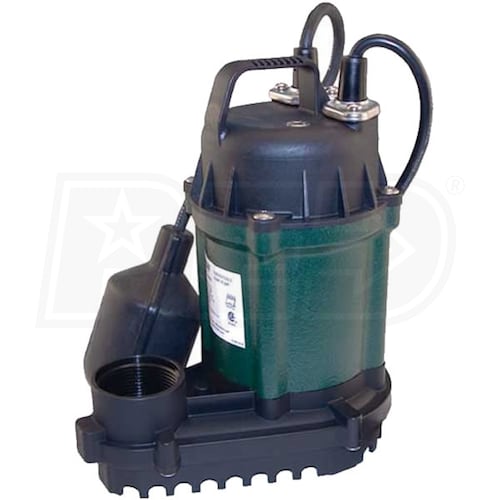

Zoeller WM49 - 1/4 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Model:
WM49
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
1920 Gallons
Switch Type
Tether
- Automatic Submersible Sump Pump
- Cast Iron Motor Housing with Corrosion-Resistant, Baked-on enamel Finish
- Rugged, offers years of reliable trouble-free operation
- Thermally Protected, Permanent Split Capacitor Motor
- Oil-filled, hermetically-sealed motor to prevent overheating
- Reliable Tethered Float Switch
- Stainless steel screws and hardware
- No Sheet Metal Parts To Rust Or Corrode
- Carbon and Ceramic Rotary Seal
- Watertight, neoprene seal between motor and cover
- 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
WM49
Base
Base Material
Thermoplastic
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
Yes
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.375 inch
Float Type
Tether Switch
GPH @ 0 feet
1920
GPH @ 5 feet
1920
GPH @ 10 feet
1500
GPH @ 15 feet
600
Discharge Port Size
1-1/2 Inch
Float On
11.25 Inches
Float Off
4 Inches
Engine
Horsepower
.25 hp
Overview
Weight
11 Pounds
Consumer Warranty
3 Years
Product Width
10.5 Inches
UPC
053514180843
Additional Model Numbers
49-0005, WM49
