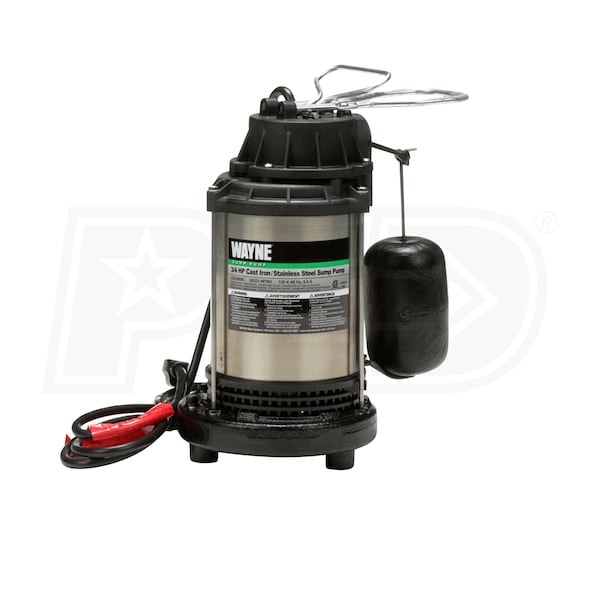

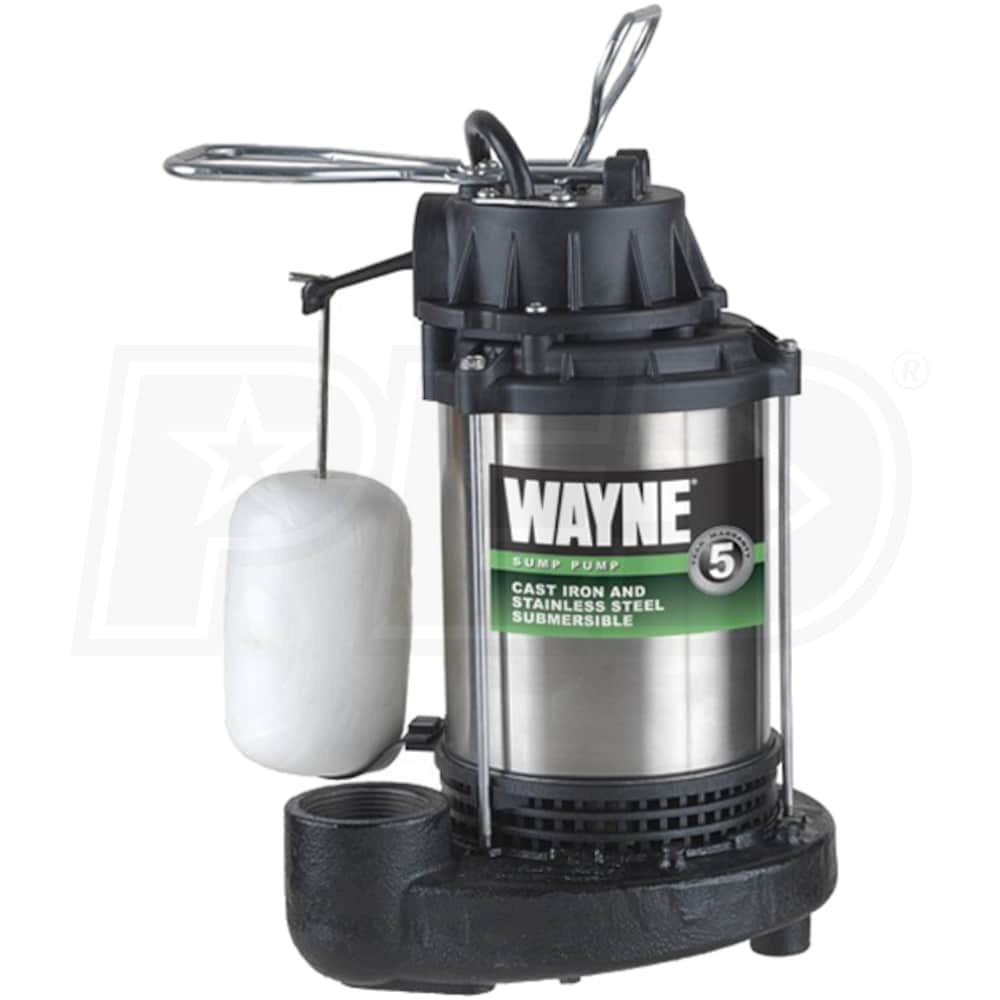

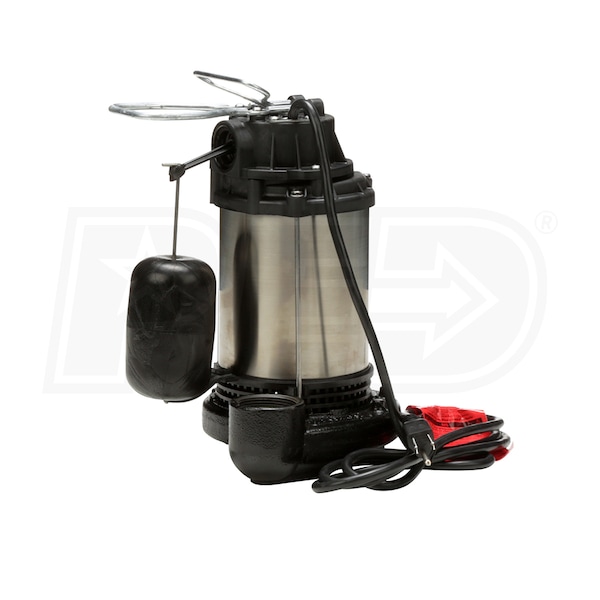

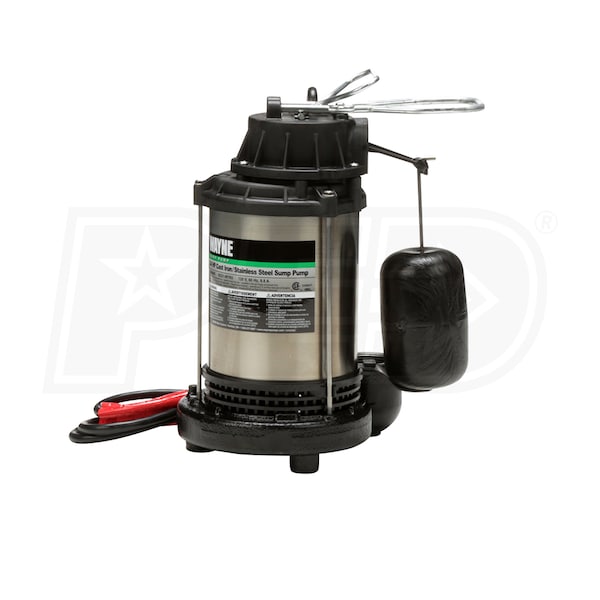

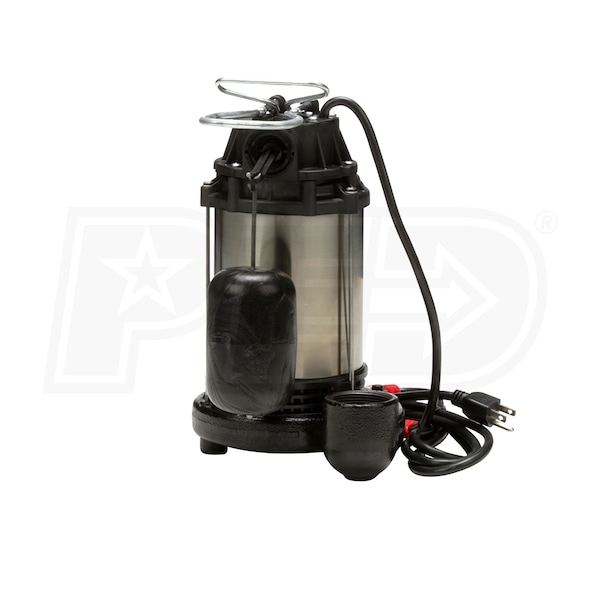

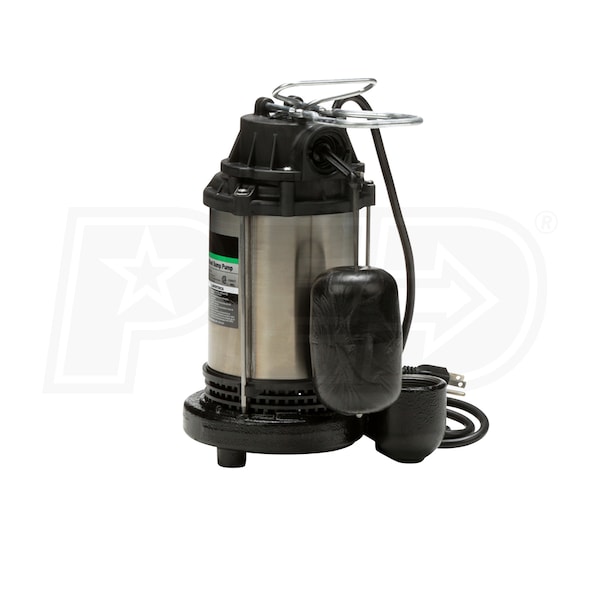

Wayne CDU980E - 3/4 HP Stainless Steel Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Name: Wayne CDU980E - 3/4 HP Stainless Steel Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Brand: Wayne
SKU: 2459
Price: 199.99 USD
Availability: InStock

Model:

CDU980E

Write A Review

$199.99

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.

In-Stock

Ships Friday, Mar 24th

Shipping to60601

Wayne CDU980E - 3/4 HP Stainless Steel Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Model: CDU980E

$199.99

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Jim, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Style

Primary

GPH

5673 Gallons

Switch Type

Vertical

Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Wayne CDU980E 3/4 HP Automatic Submersible Sump Pump
Assembled in the US with foreign and domestic parts
The Hardest Working Pumps, You'll Never Hear™
Energy efficient motors & engineered design provide an ultra quiet experience
Stainless Steel & Cast Iron Construction
Rugged, corrosion-resistant design provides long life in sump applications
3/4 HP, Thermally Protected 120V PCS Motor
Energy efficient, oil-filled design, for quiet operation and extend motor life
Integrated, Guard-Protected Vertical Float Switch w/ Solid Polypropylene Float
Prevents switch hang-ups from debris for reliable automatic operation
Unique Top Suction Design Reduces Clogging
Prevents air lock occurrences and eliminates needs for a "weep hole"
Glass Reinforced Polycarbonate Impeller
Abrasion resistant design provides efficient and reliable output
1-1/2" NPT Discharge
Complies with building-codes for residential applications
Upper and Lower Ball Bearings
Sealed oil-bath engineering for increased lifespan and virtually silent operation
Premium John Crane Carbon/Ceramic Shaft Seals & Cast Iron Seal Plate
High-quality components helps prevent leaks and galvanic corrosion
Designed For Use In 11-Inch or Larger Sump Basins
8-Foot, water-resistant power cord for easier access to power outlet
5-Year Limited Warranty

California residents see

Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.

For more information go to: www.p65Warnings.ca.gov

Specifications

CDU980E

General Information

Product Category

Sump Pump

Base

Base Material

Cast Iron

Min Sump Basin Size

11 Inch

Motor

Voltage

120 Volt

Running Amps

Thermal Protection

Yes

Power Cord Length

8 Feet

Oil Free Motor

Pump

Housing Material

Stainless Steel

Impeller Material

Plastic

Handles Solids

Float Type

Vertical Float

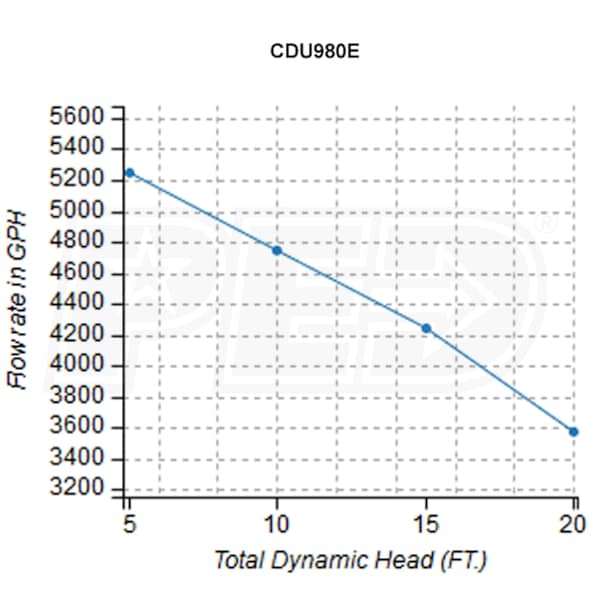

GPH @ 0 feet

5673

GPH @ 5 feet

5245

GPH @ 10 feet

4743

GPH @ 15 feet

4240

GPH @ 20 feet

3571

Discharge Port Size

1-1/2 Inch

Check Valve Included

Float On

9 Inches

Float Off

4 Inches

Manual Override

Submersible

Yes

Engine

Horsepower

.75 hp

Overview

Product Category

Sump Pump

Weight

18 Pounds

Consumer Warranty

5 Years

Product Width

9.75 Inches

Product Height

11.5 Inches

UPC

040066214744

Additional Model Numbers

CDU980, CDU980E

Reviews

(190)

Wayne CDU980E Reviews & Ratings

Product Q&A

(11)

Product Questions Answered by Jim, the Sump Pump Expert

Does this pump require a weep hole?

Michael J.

from Pennsylvania

April 01, 2017

Answer

While most sump and sewage should have a weep hole drilled in the discharge pipe, this Wayne pump does not require it. This is due to their top suction design. Where most pumps suck the water in through the bottom and underneath the base, this pump sucks the water in from around the top of the base. I always say that, no matter what, it's never a bad idea to drill the weep hole, but with this style of pump, it's not as important.

Was this answer helpful?

Yes

Will the brine during a regeneration harm this pump if the water softener is drained directly to the sump pit?

Will F.

from Illinois

March 21, 2017

Answer

This would really depend on the dilution rate of that water softener. Does your sump basin normally have water in it to help dilute that brine? If not, it's not good for this and most other sump pumps. Your best option in that case would be something like the Little Giant 10EN-CBA-SFS - 1/2 HP Cast Bronze Submersible Effluent Pump w/ Vertical Float Switch. If the brine is diluted, the Wayne pump will suffice, but it still will not last as long as it could, and the warranty would be void. This is all assuming that you have a normal 5-10 foot discharge head lift with a maximum 5 - 50 foot horizontal run.

Was this answer helpful?

Yes

I would like to draw water from a pond to use for lawn care. Vertical lift would be ~ 12-20' with potentially up to 100' of hose running to gardens. What would be an appropriate pump for this configuration? thanks, scott

Scott Bennett

from Vermont

June 30, 2016

I USE 2 WAYNE PUMPS. ONE ON THE BOTTOM OF THE SUMP AND ONE TOWARDS THE TOP AS i SOMETIMES GET A LOT OF WATER AND NEED THE EXTRA PUMP AND ALSO USE FOR BACKUP. I HAVE BEEN USING THE WAYNE CDU980. EVERY YEAR I HAVE TO BUY A NEW PUMP AS THE PUMP NO LONGER WORKS. WHY DOES THIS HAPPEN? I NEED TO BUY 2 MORE SPARES BUT AM TIRED OF RPLACING THESE PUMPS EACH YEAR. THE BOTTOM PUMP GETS ALL RUSTY AND THEN STOPS PUMPING. ADVISE? i HAVE A FRENCH DRAIN SYSTEM.

PAUL G

from New York

September 05, 2012

Answer

It's possible that you are using too strong of a pump. Perhaps a 1/3HP or 1/2HP pump would be sufficient? When it comes to sump pumps, bigger is not better. By using a pump that is over-sized for your application, the pump will cycle much more frequently which is not good for the pump and thus reduce the life of that pump. Since you are already using a 2 pump system, think about replacing that main pump with a model CDU790 1/3HP or model CDU800 1/2HP pump and keep the CDU980 for your "secondary" pump to take up the slack.

Was this answer helpful?

Yes

I have a water softner wash hose running in my sump. What would be a good pump to use? I was think about the Wayne CDU980E.

Duane

from Ohio

August 05, 2012

What kind of warranty do you have on your pumps?

John

from Pennsylvania

July 03, 2012

My sump pump has been acting up and I think it is time to replace it. My basin is 11 1/2 by 11 1/2 and 22 inches deep. The pump is used for moving water from the washing machine to the sewage pipe. I was looking at the Wayne CDU 3/4 HP. Do you think this would be a good fit.

Jim King

from Virginia

May 20, 2012

Wayne cdu980e 3/4, how much electricity is used to run in watts. I want to hook up a gas elect. generator & need to know what this pump draws in watts.

Mike

from Pennsylvania

January 29, 2012

Answer

The running watts required for this Wayne pump is 1200 watts. Unfortunately, we do not have the starting watts rating that would be required, which is just as important. You might try calling Wayne tech support at 800-237-0987 for that information. Also, please note that any number that you get, including the 1200 running watts would need to be multiplied by 20% to insure the generator would always have enough power (running and starting watts) to provide.

Was this answer helpful?

Yes

What is the min sump basin size for the Zoeller M98 1/2 sump pump?

Sal

from New York

February 28, 2011
