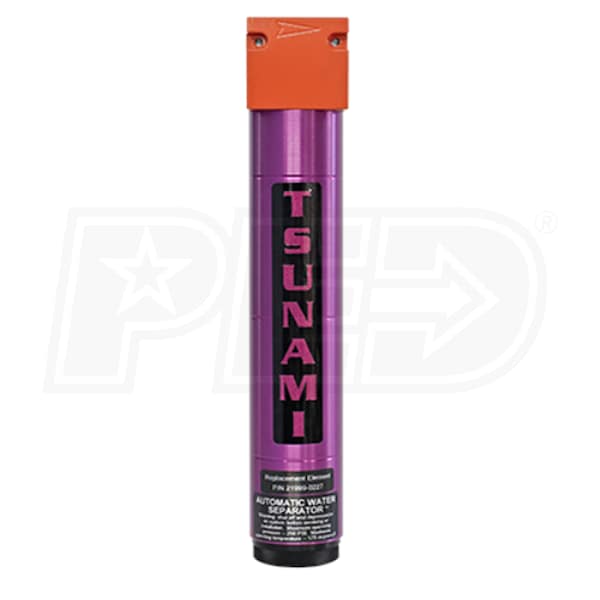

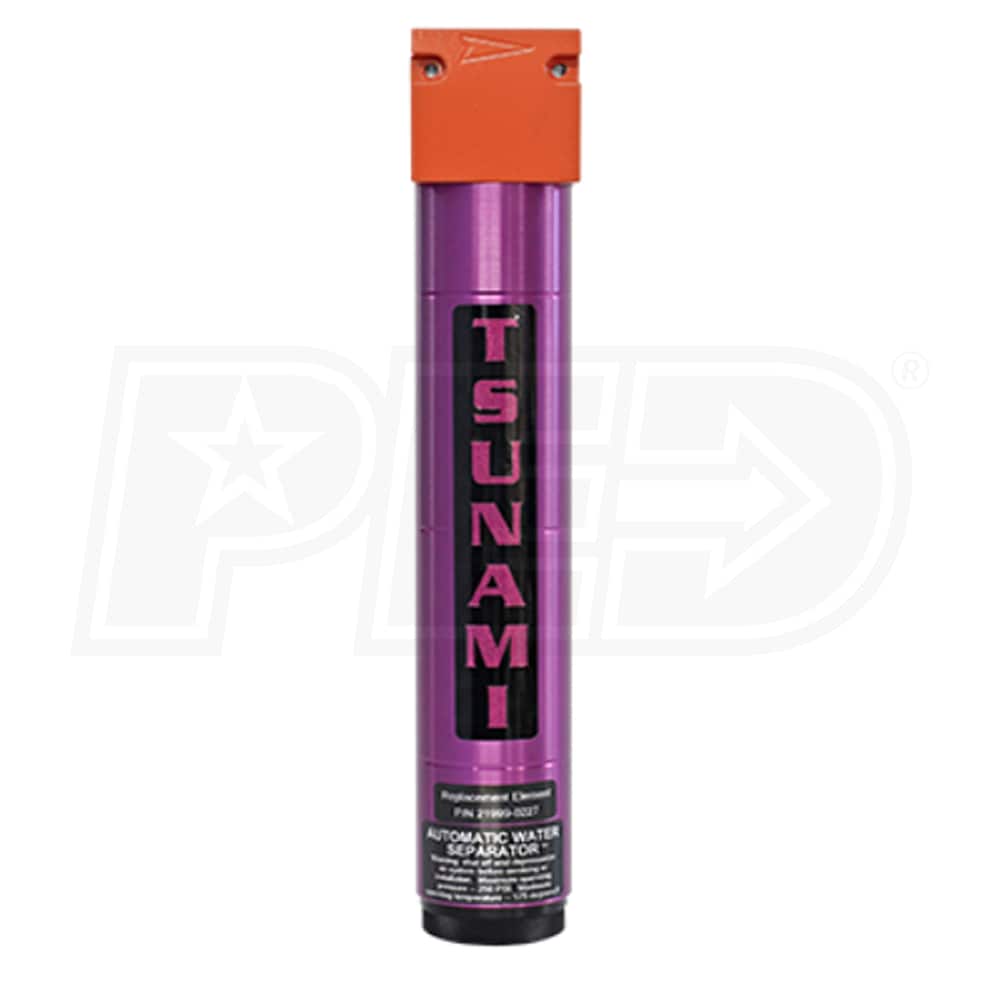

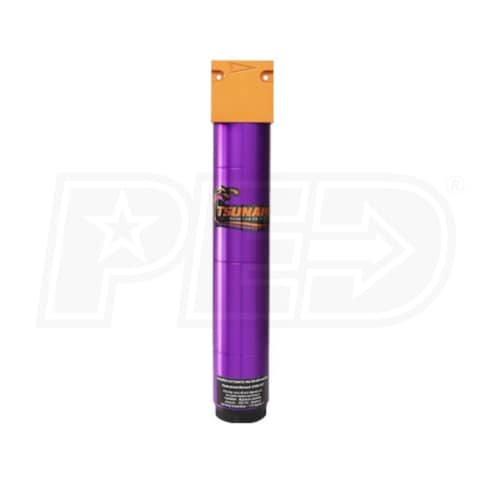

Tsunami 1/2" 250 PSI Filtration Water Separator (50 CFM) w/ Float Drain
Tsunami 1/2" 250 PSI Filtration Water Separator (50 CFM) w/ Float Drain
+
Share This Product
-
Product Description
-
6Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Tsunami 50 Series Water Separator
- Removes large amounts of moisture from your air supply
- Handles up to 1 quart of water per minute & filters particulate down to 10 micron
- High Quality & Cutting-Edge Technology
- 1/2" NPT inlet & outlet; 250 PSI & 175°F maximum
- Rigorously tested to outperform expectations regardless of the industry or application
- Unique Up-Flow Separation
- Performance is 100% consistent at all flows
- Passes through a special stainless steel mesh element and air reverses direction 180° inside the filter
- Integral Automatic Float Drain
- Ejects water from large drain sump
- Easy-to-service with minimal maintenance required
- Zamak Anodized & Powder Coated Head w/ Oversized Casing
- Designed to handle large surges of water
- Machined from 6061 aircraft aluminum for maximum corrosion protection
- Bottom Cap Has Elevated Sump
- Allows sediment to accumulate & extends filter life
- Can be easily removed to service float drain
- Threaded for optional electronic drain (sold separately)
- ***Mounting Brackets Sold Separately For Individual Filters***
Specifications
Filter
Filter CFM
50
Water Separator
Yes
Fitting Size
1/2"
Overview
Weight
3.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
2.5 Inches
Product Width
2.5 Inches
Product Height
14.5 Inches
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Tsunami 50 Series Water Separator
- Removes large amounts of moisture from your air supply
- Handles up to 1 quart of water per minute & filters particulate down to 10 micron
- High Quality & Cutting-Edge Technology
- 1/2" NPT inlet & outlet; 250 PSI & 175°F maximum
- Rigorously tested to outperform expectations regardless of the industry or application
- Unique Up-Flow Separation
- Performance is 100% consistent at all flows
- Passes through a special stainless steel mesh element and air reverses direction 180° inside the filter
- Integral Automatic Float Drain
- Ejects water from large drain sump
- Easy-to-service with minimal maintenance required
- Zamak Anodized & Powder Coated Head w/ Oversized Casing
- Designed to handle large surges of water
- Machined from 6061 aircraft aluminum for maximum corrosion protection
- Bottom Cap Has Elevated Sump
- Allows sediment to accumulate & extends filter life
- Can be easily removed to service float drain
- Threaded for optional electronic drain (sold separately)
- ***Mounting Brackets Sold Separately For Individual Filters***
Specifications
Filter
Filter CFM
50
Water Separator
Yes
Fitting Size
1/2"
Overview
Weight
3.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
2.5 Inches
Product Width
2.5 Inches
Product Height
14.5 Inches
Product Specs
+−
Specifications
Filter
Filter CFM
50
Water Separator
Yes
Fitting Size
1/2"
Overview
Weight
3.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
2.5 Inches
Product Width
2.5 Inches
Product Height
14.5 Inches
