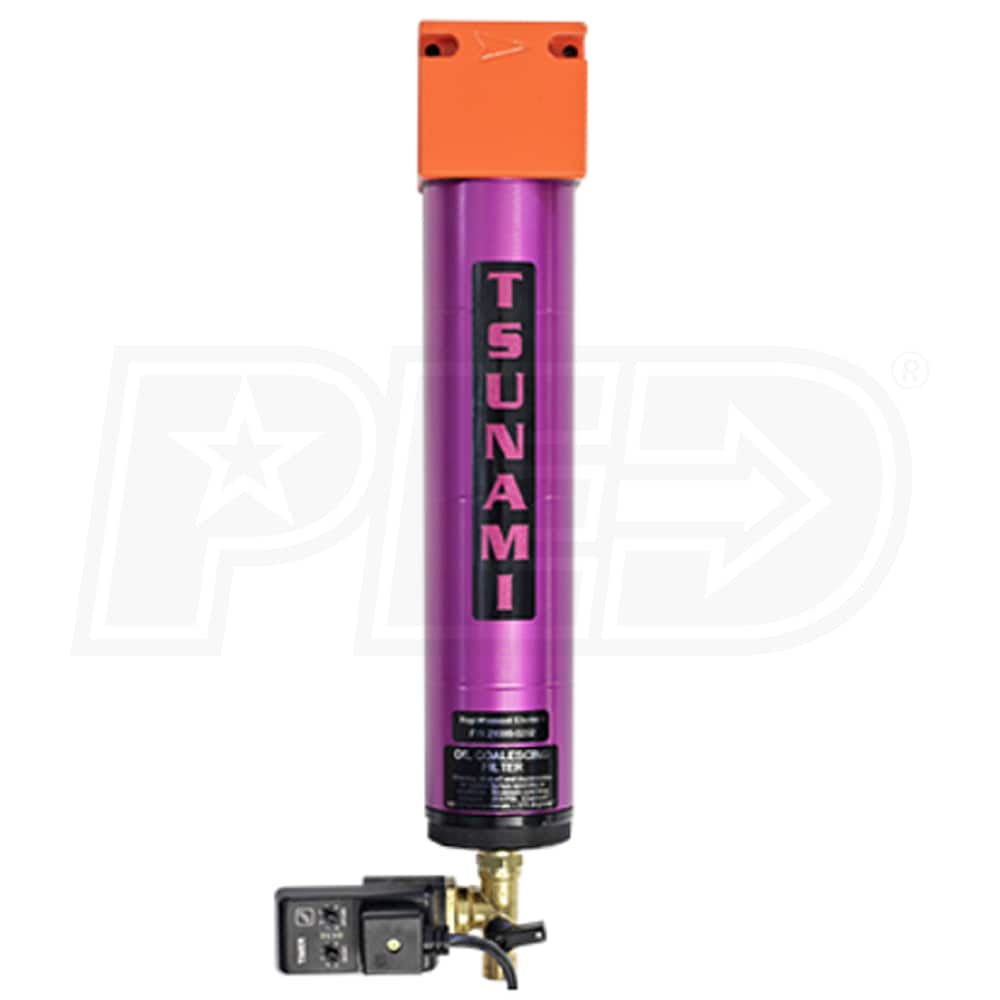

Tsunami 1/2" 250 PSI High Efficiency Oil Coalescing Filter (50 CFM) w/ Float Drain
Model: 21999-0131-Z-FD
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Tsunami 50 Series Oil Coalescing
- Protect critical equipment from oil aerosols and particulates
- Removes oil aerosols down to .001 ppm and particulates down to .01 micron
- High Quality & Cutting-Edge Technology
- 1/2" NPT inlet & outlet; 250 PSI & 175°F maximum
- Rigorously tested to outperform expectations regardless of the industry or application
- Non-Wicking Drain Layer
- Secured to the outside support core
- Separates oil and water from the air flow and drain the liquid to the filter sump
- Zamak Anodized & Powder Coated Head w/ Oversized Casing
- Designed to handle large surges of water
- Machined from 6061 aircraft aluminum for corrosion protection
- Chemical-resistant polypropylene cores and layers support coalescing media
- Integral Automatic Float Drain
- Ejects water from large drain sump
- Easy-to-service with minimal maintenance required
- Bottom Cap Has Elevated Sump
- Allows sediment to accumulate & extends filter life
- Can be easily removed to service drain when needed
- Threaded for optional electronic drain (sold separately)
- ***Mounting Brackets Sold Separately For Individual Filters***
Specifications
Filter
Filter CFM
50
Oil Coalescing
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Fitting Size
1/2"
High Efficiency
Yes
Overview
Weight
3.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
2.5 Inches
Product Width
2.5 Inches
Product Height
14.5 Inches
Features
Features
- Tsunami 50 Series Oil Coalescing
- Protect critical equipment from oil aerosols and particulates
- Removes oil aerosols down to .001 ppm and particulates down to .01 micron
- High Quality & Cutting-Edge Technology
- 1/2" NPT inlet & outlet; 250 PSI & 175°F maximum
- Rigorously tested to outperform expectations regardless of the industry or application
- Non-Wicking Drain Layer
- Secured to the outside support core
- Separates oil and water from the air flow and drain the liquid to the filter sump
- Zamak Anodized & Powder Coated Head w/ Oversized Casing
- Designed to handle large surges of water
- Machined from 6061 aircraft aluminum for corrosion protection
- Chemical-resistant polypropylene cores and layers support coalescing media
- Integral Automatic Float Drain
- Ejects water from large drain sump
- Easy-to-service with minimal maintenance required
- Bottom Cap Has Elevated Sump
- Allows sediment to accumulate & extends filter life
- Can be easily removed to service drain when needed
- Threaded for optional electronic drain (sold separately)
- ***Mounting Brackets Sold Separately For Individual Filters***
Specifications
Filter
Filter CFM
50
Oil Coalescing
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Fitting Size
1/2"
High Efficiency
Yes
Overview
Weight
3.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
2.5 Inches
Product Width
2.5 Inches
Product Height
14.5 Inches
Product Specs
+−
Specifications
Filter
Filter CFM
50
Oil Coalescing
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Fitting Size
1/2"
High Efficiency
Yes
Overview
Weight
3.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
2.5 Inches
Product Width
2.5 Inches
Product Height
14.5 Inches
