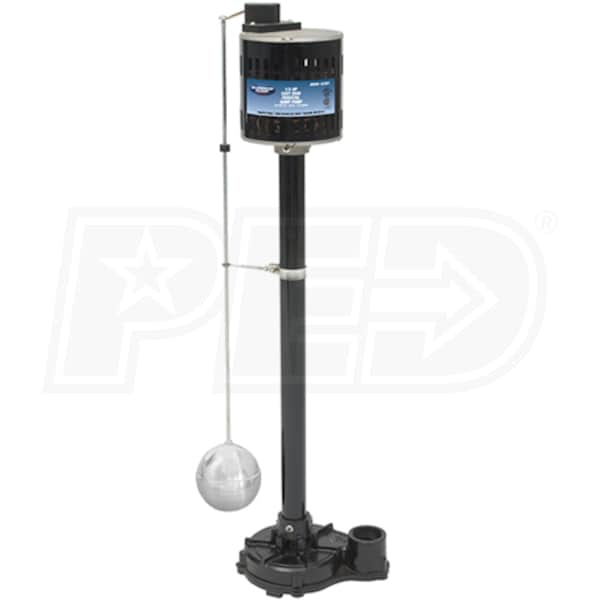

Superior Pump 92301 - 1/3 HP Cast Iron Pedestal Pump w/ Vertical Float Switch
Superior Pump 92301 - 1/3 HP Cast Iron Pedestal Pump w/ Vertical Float Switch
+
Share This Product
-
Product Description
-
28Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
3000
Gallons
Switch Type
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
Features
Features
- Automatic Pedestal Sump Pump
- Ideal for sump basins 12" and larger
- Thermally Protected, 1/3 HP Split Capacitor Motor
- Continuous duty design, only draws 2.6A
- Corrosion-Resistant Cast Iron Pump Base
- Designed to maximize pump life
- Non-Corrosive Stainless Steel Drive Shaft & Impeller
- Rigid design compared to traditional plastic drive shafts
- Fully-Adjustable Vertical Float Switch w/ Metal Switch Arm
- Provides added strength and durability
- Excellent 3 Year Consumer Warranty
Specifications
Base
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
2.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
18
Pump
Housing Material
Cast Iron
Solids Handling Size
.1875 inch
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2280
GPH @ 15 feet
2100
GPH @ 20 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
25 Pounds
Consumer Warranty
3 Years
Product Length
11.75 Inches
Product Width
9.375 Inches
Product Height
34 Inches
UPC
725113923014
Style
GPH
3000
Gallons
Switch Type
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
Features
Features
- Automatic Pedestal Sump Pump
- Ideal for sump basins 12" and larger
- Thermally Protected, 1/3 HP Split Capacitor Motor
- Continuous duty design, only draws 2.6A
- Corrosion-Resistant Cast Iron Pump Base
- Designed to maximize pump life
- Non-Corrosive Stainless Steel Drive Shaft & Impeller
- Rigid design compared to traditional plastic drive shafts
- Fully-Adjustable Vertical Float Switch w/ Metal Switch Arm
- Provides added strength and durability
- Excellent 3 Year Consumer Warranty
Specifications
Base
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
2.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
18
Pump
Housing Material
Cast Iron
Solids Handling Size
.1875 inch
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2280
GPH @ 15 feet
2100
GPH @ 20 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
25 Pounds
Consumer Warranty
3 Years
Product Length
11.75 Inches
Product Width
9.375 Inches
Product Height
34 Inches
UPC
725113923014
Product Specs
+−
Specifications
Base
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
2.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
18
Pump
Housing Material
Cast Iron
Solids Handling Size
.1875 inch
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2280
GPH @ 15 feet
2100
GPH @ 20 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
25 Pounds
Consumer Warranty
3 Years
Product Length
11.75 Inches
Product Width
9.375 Inches
Product Height
34 Inches
UPC
725113923014
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Would this pump be suitable for a 12' x 12' basement?
Cody Dix
from Ohio
January 10, 2011
Answer
The interior dimensions of a basement aren't a major factor in sizing a sump pump correctly.
Monitoring your current pump during normal operation and during a storm can give you a better idea of what size pump you would need.
Monitoring your current pump during normal operation and during a storm can give you a better idea of what size pump you would need.
+−
What is the lowest level of water that would switch the pump on?
Keith
from Pennsylvania
January 02, 2011
Answer
Hello Keith,
I apologize for the delay in answering your question.
The turn off level is 4"
The lowest water level to turn the pump on is 5" (±1/2")
The turn on is adjustable and not set at the factory. It's controlled by the grommet on the float rod that the user need to put on. The normal on range is about 12".
I apologize for the delay in answering your question.
The turn off level is 4"
The lowest water level to turn the pump on is 5" (±1/2")
The turn on is adjustable and not set at the factory. It's controlled by the grommet on the float rod that the user need to put on. The normal on range is about 12".
