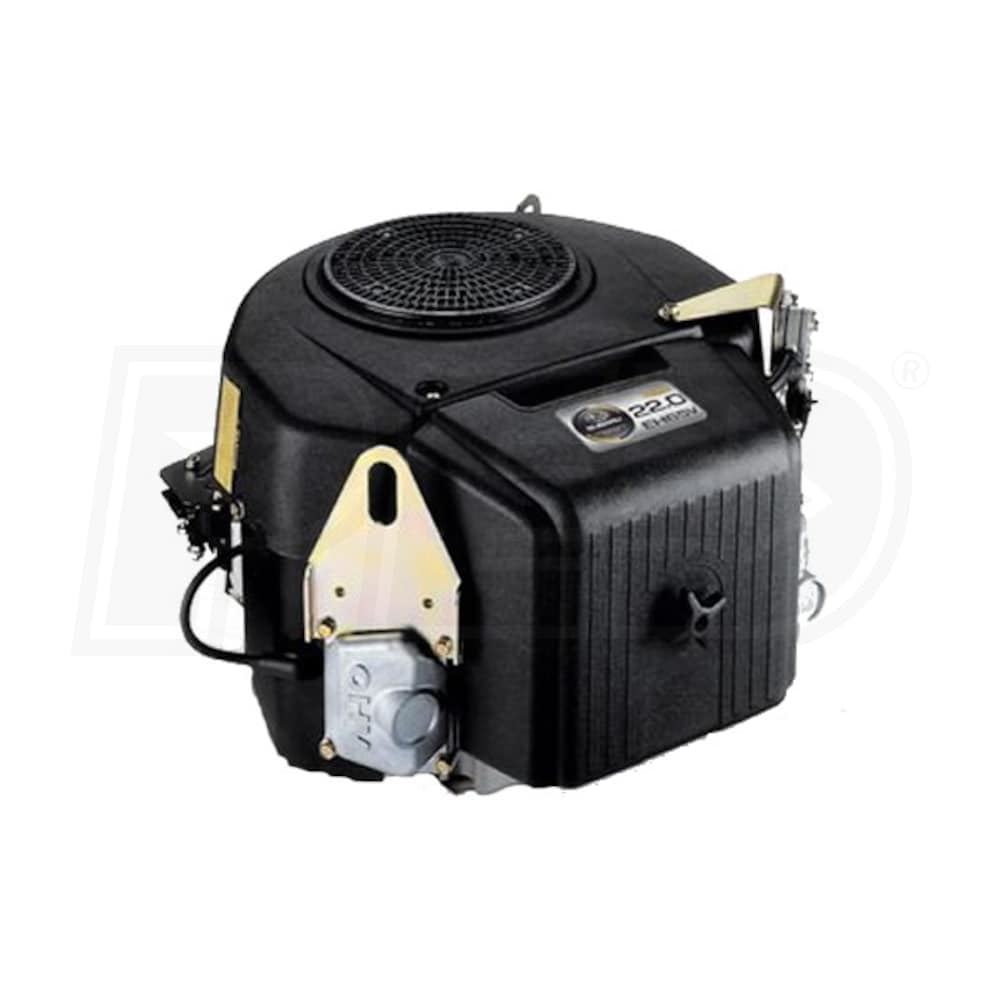

Subaru EH65V 653cc 22HP Electric Start OHV Vertical Engine W/ Rotating Screen & Guard, 1" x 3.15" Crankshaft, 1/4" Keyway Tapped 7/16-20

Subaru EH65V 653cc 22HP Electric Start OHV Vertical Engine W/ Rotating Screen & Guard, 1" x 3.15" Crankshaft, 1/4" Keyway Tapped 7/16-20
Model: EH650VC0140
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# EH650VC0140 - 15-Amp Charging 1" x 3.15" Crankshaft Tapped 7/16-20
  • Subaru EH65V V-Twin OHV Industrial Engine
  • Suitable applications would be riding mowers, concrete cutters, vibratory rollers, ride-on trowels & trenchers
  • High power and performance in a small package
  • Delivers smooth & reliable torque
  • HotSpark Electronic Ignition System
  • Ensures accurate ignition timing
  • Delivers reliable starting performance and smooth idling
  • Low Oil Pressure Sensor
  • Alerts operator when oil pressure drops too low
  • Full Pressure Lubrication System
  • Trochoid-type oil pump creates constant lubrication throughout engine
  • Full flow spin-on oil filter
  • Aluminum Alloy Block With Cast Iron Cylinder Sleeves
  • Enhances reliability and increases engine life
  • Forged High Carbon Steel Crankshaft
  • Provides maximum reliability under demanding loads
  • Large Main Bearing Support
  • Located on PTO side of crankshaft
  • Minimizes shock under heavy loads
Specifications
Engine
Engine Series
Subaru EH
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
97 Lbs
CC
653 CCs
HP
22 HP
Cylinder Bore Type
Cast Iron
Bore
31.5 Inches
Stroke
25.6 Inches
Compression Ratio
8.3:1
Systems
Starting System
12-Volt Key Start
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67.63 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.15 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.15"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
97 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years

Features
Features
  • Model# EH650VC0140 - 15-Amp Charging 1" x 3.15" Crankshaft Tapped 7/16-20
  • Subaru EH65V V-Twin OHV Industrial Engine
  • Suitable applications would be riding mowers, concrete cutters, vibratory rollers, ride-on trowels & trenchers
  • High power and performance in a small package
  • Delivers smooth & reliable torque
  • HotSpark Electronic Ignition System
  • Ensures accurate ignition timing
  • Delivers reliable starting performance and smooth idling
  • Low Oil Pressure Sensor
  • Alerts operator when oil pressure drops too low
  • Full Pressure Lubrication System
  • Trochoid-type oil pump creates constant lubrication throughout engine
  • Full flow spin-on oil filter
  • Aluminum Alloy Block With Cast Iron Cylinder Sleeves
  • Enhances reliability and increases engine life
  • Forged High Carbon Steel Crankshaft
  • Provides maximum reliability under demanding loads
  • Large Main Bearing Support
  • Located on PTO side of crankshaft
  • Minimizes shock under heavy loads
Specifications
Engine
Engine Series
Subaru EH
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
97 Lbs
CC
653 CCs
HP
22 HP
Cylinder Bore Type
Cast Iron
Bore
31.5 Inches
Stroke
25.6 Inches
Compression Ratio
8.3:1
Systems
Starting System
12-Volt Key Start
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67.63 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.15 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.15"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
97 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Specs
+
Specifications
Engine
Engine Series
Subaru EH
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
97 Lbs
CC
653 CCs
HP
22 HP
Cylinder Bore Type
Cast Iron
Bore
31.5 Inches
Stroke
25.6 Inches
Compression Ratio
8.3:1
Systems
Starting System
12-Volt Key Start
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67.63 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.15 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.15"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
97 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
