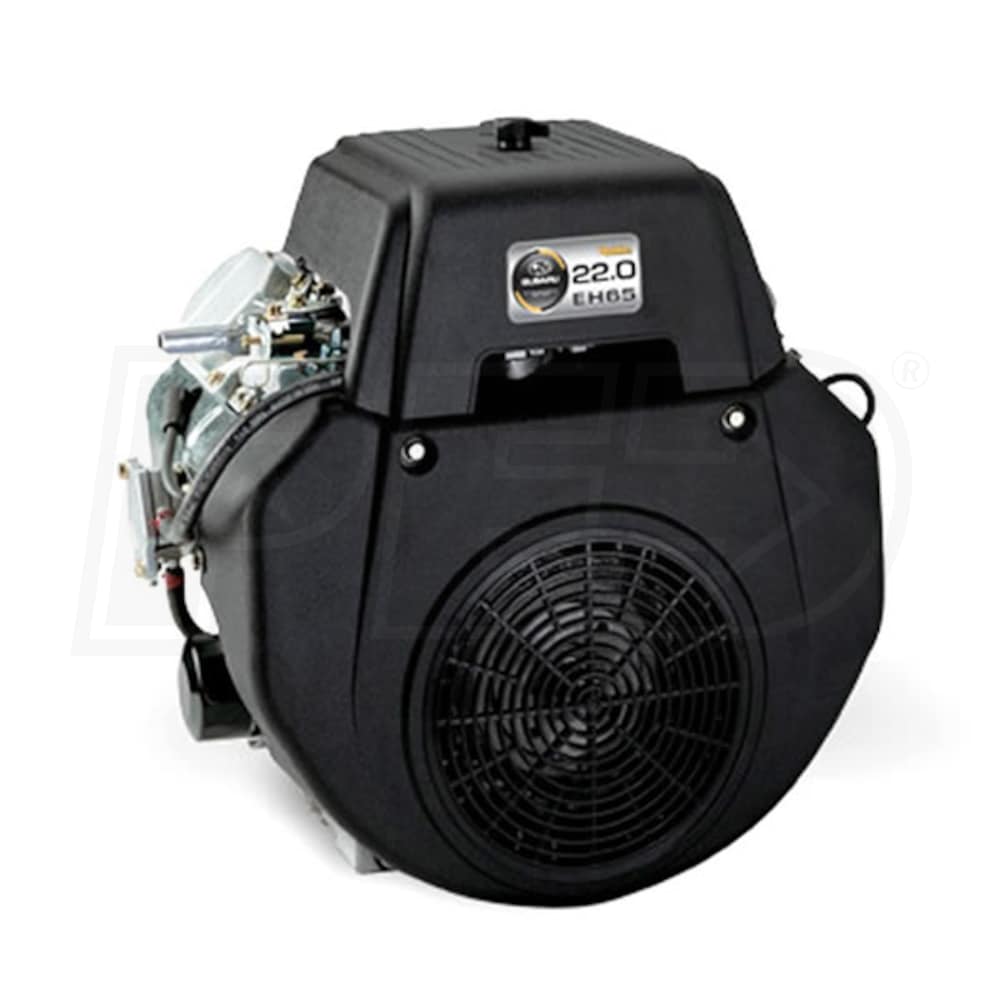

Subaru EH65 653cc 22HP Electric Start Horizontal Engine, 15-Amp Charging, 1-7/16" x 4.37" Crankshaft, 3/8" Keyway Tapped 5/8"-18

Subaru EH65 653cc 22HP Electric Start Horizontal Engine, 15-Amp Charging, 1-7/16" x 4.37" Crankshaft, 3/8" Keyway Tapped 5/8"-18
Model: EH650DC5451
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model # EH650DB5451- 15-Amp Charging, 1-7/16" x 4.37" Crankshaft 3/8" Keyway
  • Subaru EH65 22HP V-Twin OHV Industrial Engine
  • High power and performance in a small package
  • Delivers smooth, reliable torque and low fuel consumption throughout the rpm range
  • Can be used in a variety of application such as riding mowers, trenchers, ride-on trowels, concrete saws & vibratory rollers
  • Large Main Bearing Support On PTO Side Of Crankshaft
  • Minimizes shock under heavy loads
  • Forged High Carbon Steel Crankshaft
  • Provides maximum reliability under demanding loads
  • Aluminum Alloy Block With Cast Iron Cylinder Sleeves
  • Enhances reliability and increases engine life
  • Full Pressure Lubrication System
  • Trochoid-type oil pump creates constant lubrication throughout engine
  • Low Oil Pressure Sensor
  • Alerts operator when oil pressure drops too low
  • Helps protect engine from unnecesary damage
  • HotSpark Electronic Ignition System
  • Ensures accurate ignition timing
  • Delivers reliable starting performance and smooth idling
  • Large Capacity Dual Element Air Cleaner
Specifications
Engine
Engine Series
Subaru EH
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
97 Lbs
CC
653 CCs
HP
22 HP
Cylinder Bore Type
Cast Iron
Bore
3.15 Inches
Stroke
2.56 Inches
Compression Ratio
8.3:1
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
52.41 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-7/16 x 4.37 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-7/16"
Crankshaft Length
4.37"
Crankshaft End Tapped Size
5/8-18
Crankshaft Keyway Width
3/8 Inches
PTO Height
5-1/4 Inches
Overview
Weight
97 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
