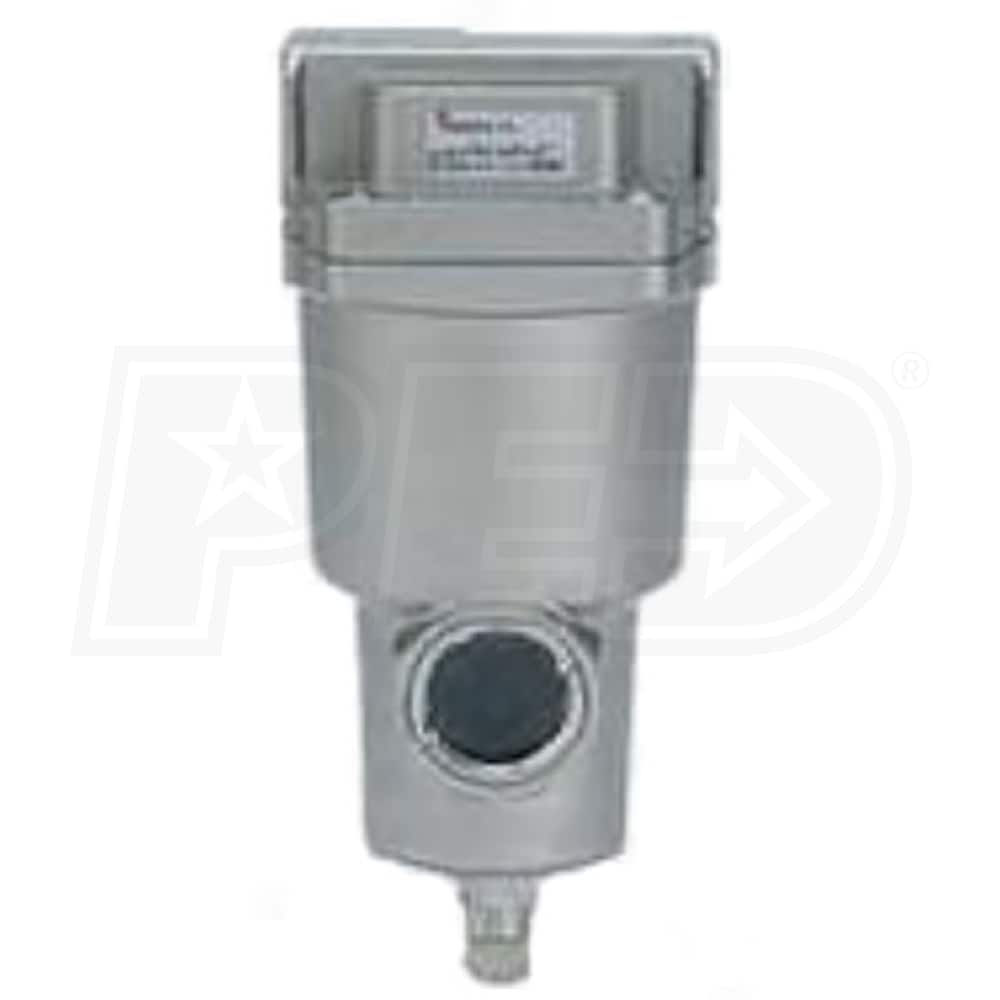

SMC 1/4" Micro Mist Separator w/ Pre-Filter, Bracket, Element Service Indicator, & Auto Drain (7 CFM)
Model: AMH150C-N02BC-T
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- High Precision Micro-Mist Separator With A Pre-Filter
- Separates & eliminates aerosol oil mist in compressed air
- Removes carbon or dust of more than 0.01micron
- Maximum oil mist at outlet: 0.008ppm
- Varied Applications
- Suitable for approximately 3 HP output compressor
- Dries & cleans pneumatic measurement instruments & parts
- Passes cleaner air to your tools and processes
- Modular Connection
- Customize your filtration to suit your needs
- Can be linked with other SMC products (sold separately)
- Mounting bracket included
- Operates In 41°F To 140°F Ambient Temperature
- Effective in a wide variety of applications
- 7.25 PSI minimum; 145 PSI maximum operating pressure
- Long Lasting Filter Element & Element Service Indicator
- Replaceable element lasts about 2 years
- Auto Drain
- Normally closed (N.C.) auto drain simplifies maintenance
Specifications
Filter
Filter CFM
7
Regulator
No
Water Separator
No
Oil Coalescing
No
General Purpose
No
Oil Remover
Yes
Carbon Filter
Yes
Dust Particulate
Yes
Inlet Fittings
1/4"
Outlet Fittings
1/4"
Fitting Size
1/4"
High Efficiency
No
Overview
Weight
1 Pound
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
2.48 Inches
Product Width
2.48 Inches
Product Height
8.42 Inches
Features
Features
- High Precision Micro-Mist Separator With A Pre-Filter
- Separates & eliminates aerosol oil mist in compressed air
- Removes carbon or dust of more than 0.01micron
- Maximum oil mist at outlet: 0.008ppm
- Varied Applications
- Suitable for approximately 3 HP output compressor
- Dries & cleans pneumatic measurement instruments & parts
- Passes cleaner air to your tools and processes
- Modular Connection
- Customize your filtration to suit your needs
- Can be linked with other SMC products (sold separately)
- Mounting bracket included
- Operates In 41°F To 140°F Ambient Temperature
- Effective in a wide variety of applications
- 7.25 PSI minimum; 145 PSI maximum operating pressure
- Long Lasting Filter Element & Element Service Indicator
- Replaceable element lasts about 2 years
- Auto Drain
- Normally closed (N.C.) auto drain simplifies maintenance
Specifications
Filter
Filter CFM
7
Regulator
No
Water Separator
No
Oil Coalescing
No
General Purpose
No
Oil Remover
Yes
Carbon Filter
Yes
Dust Particulate
Yes
Inlet Fittings
1/4"
Outlet Fittings
1/4"
Fitting Size
1/4"
High Efficiency
No
Overview
Weight
1 Pound
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
2.48 Inches
Product Width
2.48 Inches
Product Height
8.42 Inches
Product Specs
+−
Specifications
Filter
Filter CFM
7
Regulator
No
Water Separator
No
Oil Coalescing
No
General Purpose
No
Oil Remover
Yes
Carbon Filter
Yes
Dust Particulate
Yes
Inlet Fittings
1/4"
Outlet Fittings
1/4"
Fitting Size
1/4"
High Efficiency
No
Overview
Weight
1 Pound
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
2.48 Inches
Product Width
2.48 Inches
Product Height
8.42 Inches
