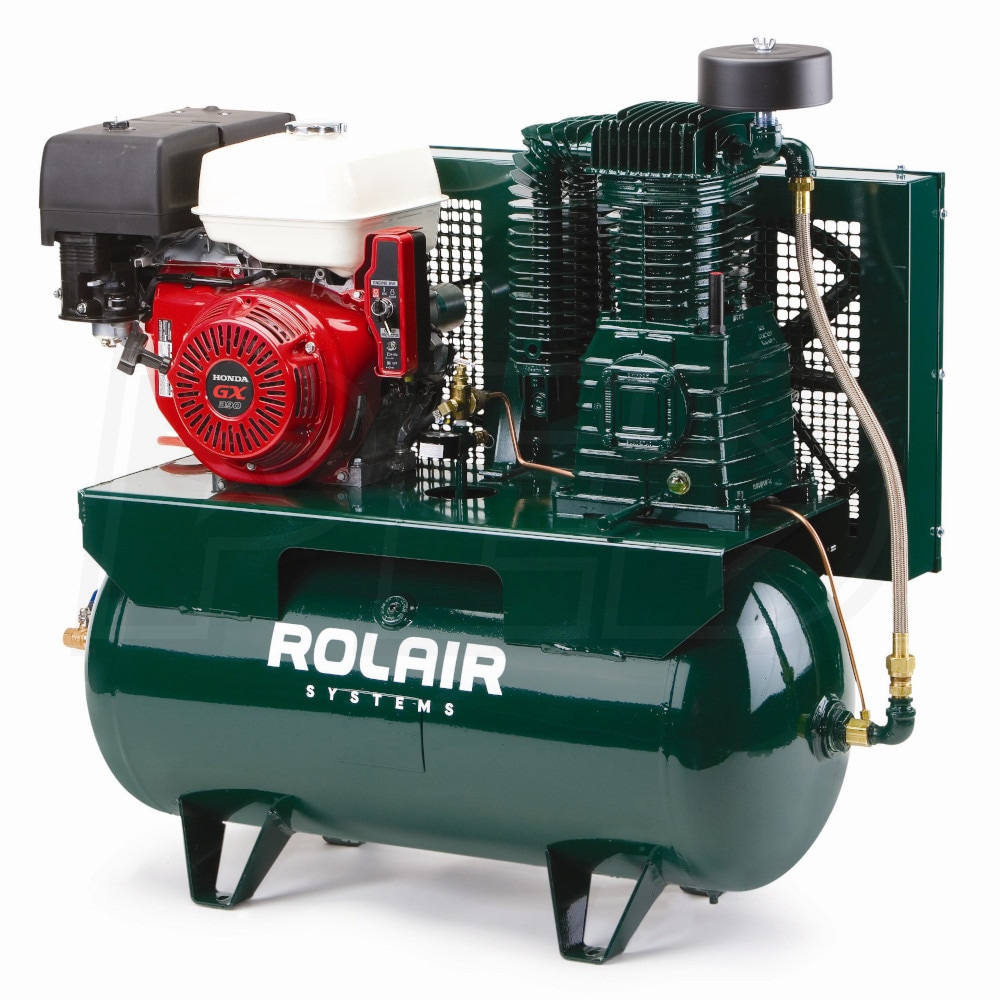

Rolair 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine

Model:

13GR30HK30

Write A Review
$3,415.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Dec 5th
Shipping to60601

Rolair 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Rolair 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: 13GR30HK30
$3,415.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

23

Tank Size

30

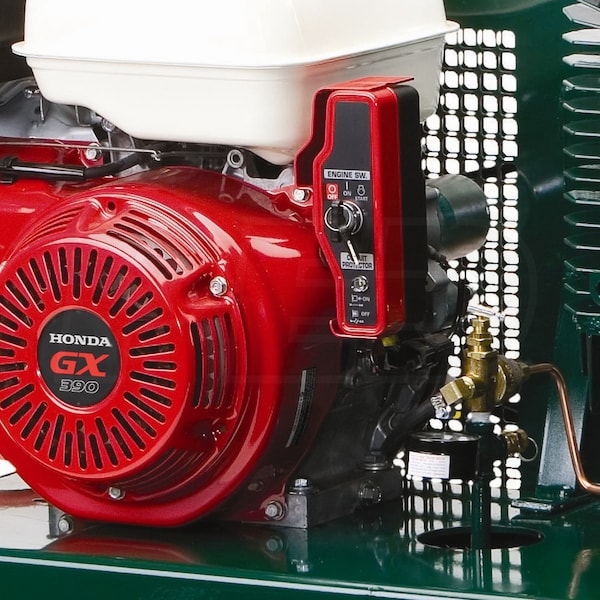

  • 13HP Honda GX 389cc Engine With Electric Start
  • Tough & reliable; automatic idle and low oil shut off
  • Atmospheric unloading system reduces oil consumption
  • Electric for ease of operation (Battery & Cables Not Included)

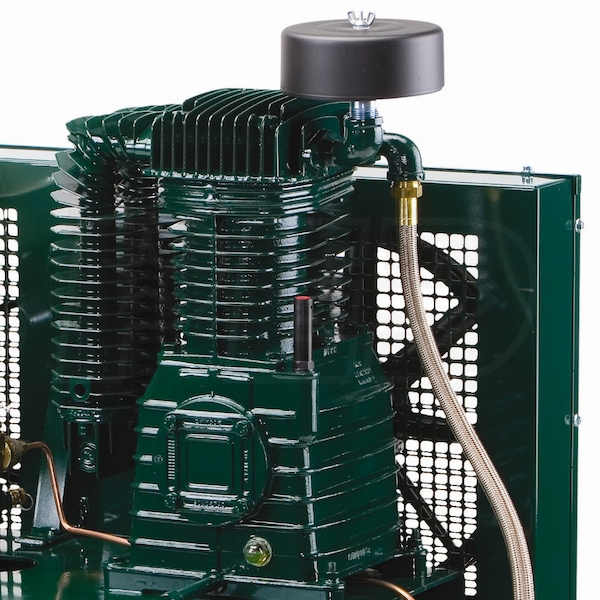

  • 2 Cylinder, 2 Stage High Efficiency Pump
  • Cast iron cylinders work hard & last a long time
  • Powerful enough for many air tools: 23 CFM at 175 PSI
  • Copper tubing and finned intercooler for cooler operation & longer pump life
  • Stainless Steel Reed Valves & Automotive-Style Bearing Inserts
  • Durable components let you work longer with less down time
  • Convenient Controls
  • Oil sight gauge monitors oil level at a glance
  • Oil drain extension for easy maintenance

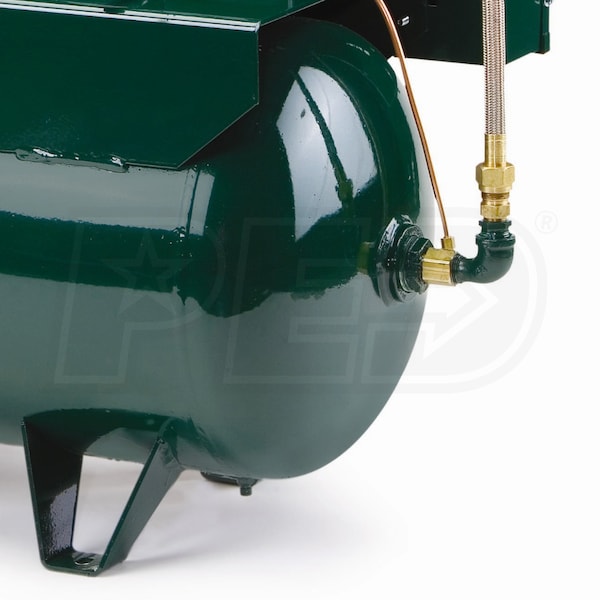

  • 30 Gallon ASME Certified Air Receiver
  • Schmidt Belt-Tightening Device for simple belt adjustment
  • Heavy duty 2-piece 16 gauge belt guard protects belt & user
  • Tested Before Shipment
  • Every component tested in Wisconsin to be contractor tough
  • Limited Manufaturer Warranty
  • 1-yr warranty on unit and 3-yr on Honda engine
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

13GR30HK30
specs product image PID-11417
General Information
Product Category
Air Compressor - Portable
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start
Engine Low Oil Shut-off
Yes
Consumer Engine Warranty
3
Commercial Engine Warranty
3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
23
CFM Rated @
175 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
365 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
22 Inches
Product Height
48 Inches
Power Type
Gas
UPC
662865071573
