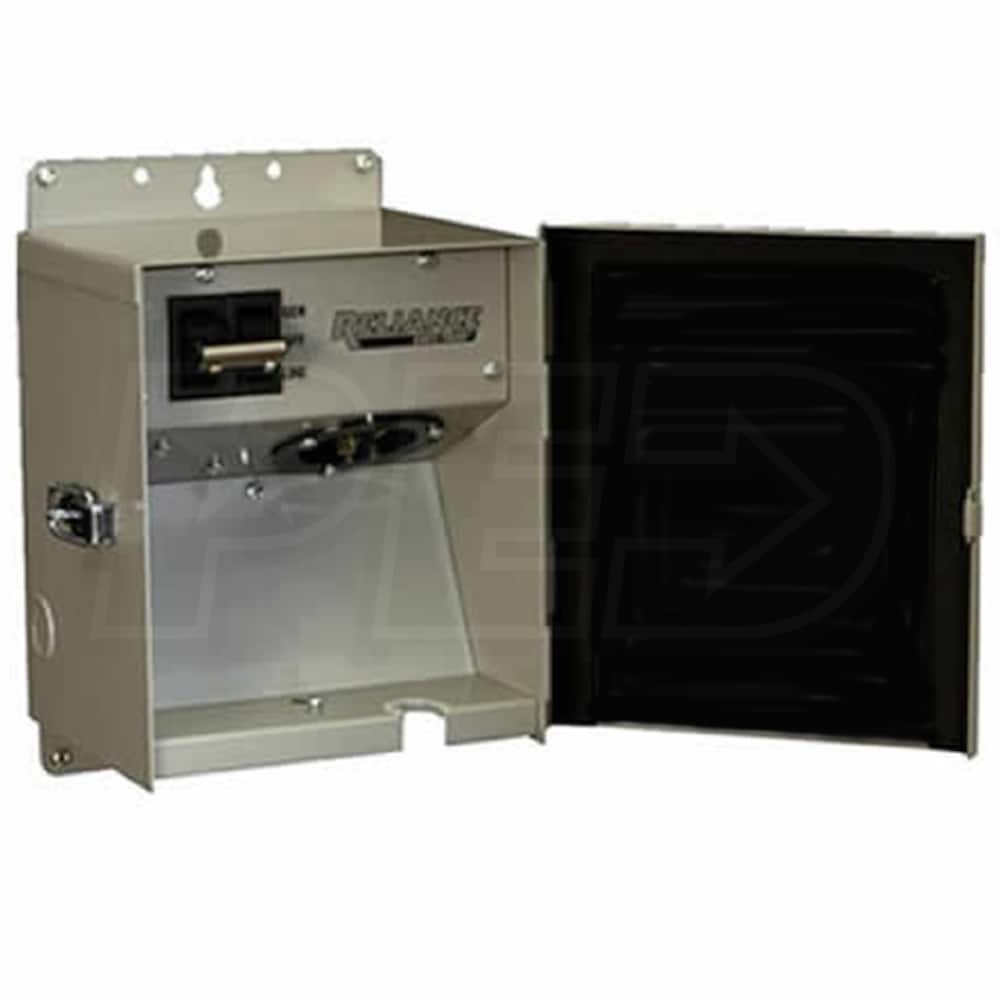

Reliance Controls 30-Amp (120/240V 1-Circuit) Outdoor Transfer Switch
Model: CSR302
+
Share This Product
-
Product Description
-
29Reviews
-
4Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Type

Amp Rating

Circuits
1
Enclosure

Type
Manual
Amp Rating
30
Circuits
1
Enclosure
NEMA 3R
Features
Features
- Outdoor Installation
- Ideal for well pumps, traffic signals, cell towers, etc.
- Raintight Connection
- Accomodates cord even when cover is closed and latched
- Double-Throw Switch
- Isolates the generator from the utility line at all times
- UL Listed
- Certified for use by Underwriter Laboratories
Specifications
Plugs

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
1
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
10 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
8.75 Inches
Product Width
7.5 Inches
Product Height
6.25 Inches
UPC
851890000355
Transfer Switch Circuits
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs

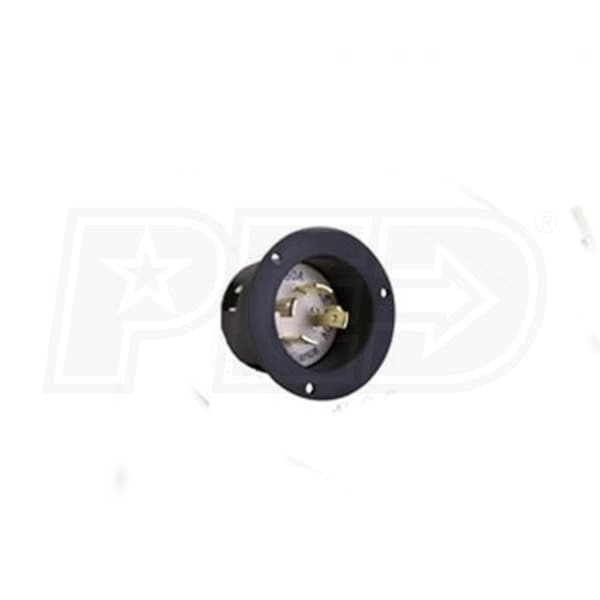

NEMA L14-30R
1
Type

Amp Rating

Circuits
1
Enclosure

Type
Manual
Amp Rating
30
Circuits
1
Enclosure
NEMA 3R
Features
Features
- Outdoor Installation
- Ideal for well pumps, traffic signals, cell towers, etc.
- Raintight Connection
- Accomodates cord even when cover is closed and latched
- Double-Throw Switch
- Isolates the generator from the utility line at all times
- UL Listed
- Certified for use by Underwriter Laboratories
Specifications
Plugs

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
1
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
10 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
8.75 Inches
Product Width
7.5 Inches
Product Height
6.25 Inches
UPC
851890000355
Transfer Switch Circuits
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
1
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
10 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
8.75 Inches
Product Width
7.5 Inches
Product Height
6.25 Inches
UPC
851890000355
Transfer Switch Circuits
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Product Q&A
(4)
+−

Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Can the cover be locked? I've looked for pictures on line but am unable to find any with sufficient detail of the latch. I'd like to use a small lock (think luggage lock) on the latch in order to keep curious children...or adults for that matter, from being able to open it.
Thank you,
Tracy
Tracy
from California
June 27, 2016
Answer
Yes, this will come with a latch for a padlock. Unfortunately, the picture does not show it very clearly.
If you have any other questions please let us know.
Thank you
If you have any other questions please let us know.
Thank you
Was this answer helpful?
Yes

0
No

0
+−
I have an outdoor main panel. Panel has one cirut breaker that goes to my home. Can I use this switch to power that breaker? I have 30 AMP generator (Generac GP5500.
John
from Indiana
February 08, 2013
Answer
The model CSR302 is designed to power one appliance/circuit and not used as a main to feed an entire panel.
You will need to find out what your mainline breaker size is to determine the correct size transfer switch needed.
The most common incoming amperage size is 200A and the most popular 200A outdoor manual transfer switch is model TWB2005DR.
Model TWB2005DR
It is best to consult with a certified electrician to confirm the correct switch for your application.
You will need to find out what your mainline breaker size is to determine the correct size transfer switch needed.
The most common incoming amperage size is 200A and the most popular 200A outdoor manual transfer switch is model TWB2005DR.
Model TWB2005DR
It is best to consult with a certified electrician to confirm the correct switch for your application.
Was this answer helpful?
Yes

1
No

0
+−
Will this work for connecting to 30 amp dryer circuit, backfed to 100 amp panel? I have a 7500 watt generator for emergency power outage and only use about once a year.
Ron
from North Dakota
September 23, 2012
Answer
This switch is "Not" designed to back feed into your electrical service. It is extremely dangerous to back feed into your homes electrical panel even if you cut off the main breaker. You could easily kill a line worker.
This switch is designed to be connected to one circuit breaker.
To properly connect to your electrical service you should go through a 30A manual transfer switch with properly disconnects you from your electrical service.
30A Manual Transfer Switches
This switch is designed to be connected to one circuit breaker.
To properly connect to your electrical service you should go through a 30A manual transfer switch with properly disconnects you from your electrical service.
30A Manual Transfer Switches
Was this answer helpful?
Yes

0
No

1
+−
Will this work for a residence? I am only looking to put the transfer switch inline between the meter and the main panel. Would like the ability to switch to a generator feed during power outages (turning off most breakers and only using essentials. I have a 7500 watt generator with 2 30amp plugs
Thanks
Gary
from Colorado
February 08, 2011
Answer
This specific transfer switch is not designed or large enough to be mounted between the meter and your existing main breaker. You would need to look at the manual transfer panels we offer which is based on the amperage size of your incoming feed from the utility company. (100A or 200A)
100 Amp Panel
200 Amp Panel
100 Amp Panel
200 Amp Panel
Was this answer helpful?
Yes

0
No

1
