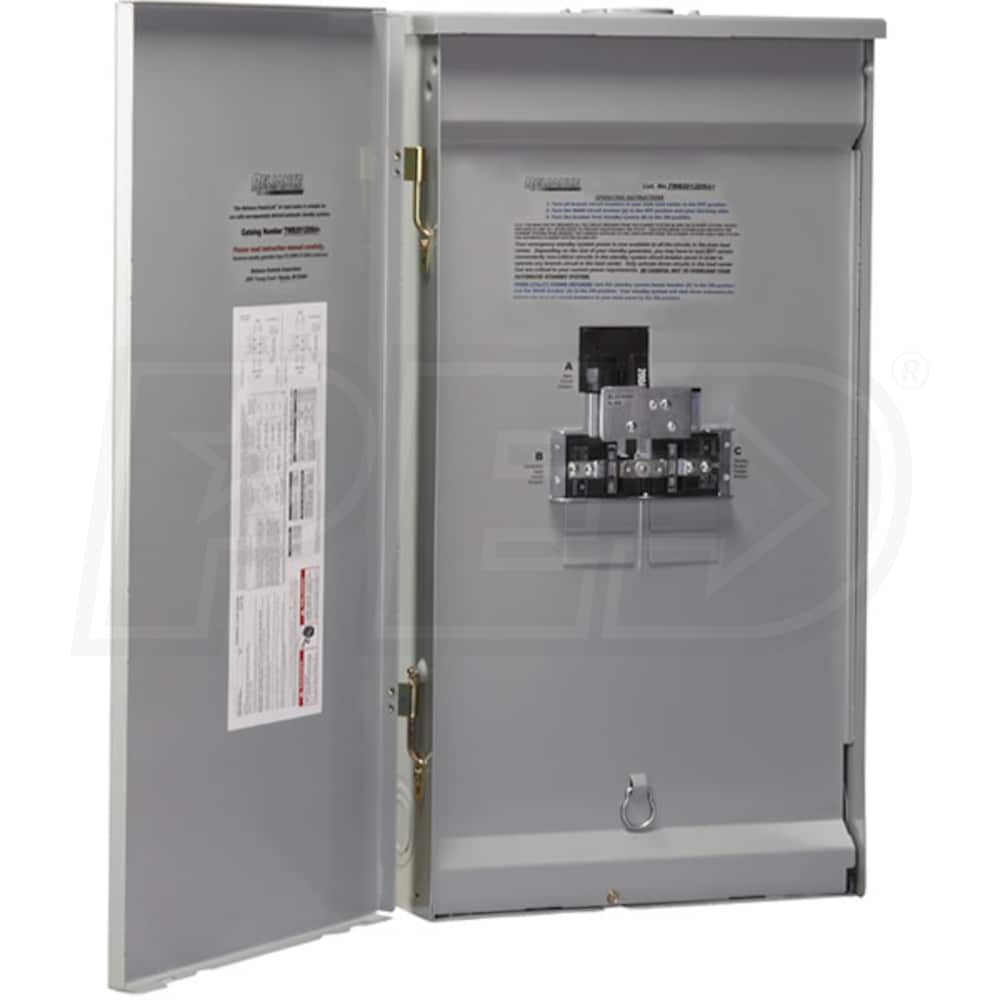

Reliance Controls 200-Amp Utility/50-Amp Generator Outdoor Manual Transfer Panel
Reliance Controls 200-Amp Utility/50-Amp Generator Outdoor Manual Transfer Panel
+
Share This Product
-
Product Description
-
26Reviews
-
10Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Reliance Panel/Link®
- Perfect for new construction and/or renovation
- Hardwire to your generator or power inlet box
- Use as a main panel or as feed-through to a sub-panel
- Ideal for having the entire service panel available for generator
- Comes with a copper buss bar
- Service Entrance Rated
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
4
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
41 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
23.25 Inches
Product Width
14.5 Inches
Product Height
4.5 Inches
UPC
815181015831
Features
Features
- Reliance Panel/Link®
- Perfect for new construction and/or renovation
- Hardwire to your generator or power inlet box
- Use as a main panel or as feed-through to a sub-panel
- Ideal for having the entire service panel available for generator
- Comes with a copper buss bar
- Service Entrance Rated
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
4
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
41 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
23.25 Inches
Product Width
14.5 Inches
Product Height
4.5 Inches
UPC
815181015831
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
4
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
41 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
23.25 Inches
Product Width
14.5 Inches
Product Height
4.5 Inches
UPC
815181015831
Product Q&A
(10)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Is the TWB2005DR panel service rated? How does the gen cord attach to this device?
Mark
from New Jersey
January 25, 2017
Answer
The TWB2005DR is service rated and would require a power inlet box in either 30-amp or 50-amp, depending on the generator you are using. Power Inlet Boxes.
Was this answer helpful?
Yes
0
No
0
+−
Mike I have two 200 amp panels, can I connect both to one manual transfer panel?
Eric
from Maryland
June 29, 2016
Answer
Because this will only handle a single 200-amp service you will not be able to hook it up to two 200-amp panels.
Was this answer helpful?
Yes
0
No
0
+−
Is there a cut sheet available for the TWB2005DR transfer panel?
Jack Waters
from Texas
July 22, 2015
Answer
Thanks for your inquiry.
Below is a link to the Cut Sheet for the TWB Series from Reliance. The cabinet size is now about 24” x 15” (Siemens changes it from time to time)
Cut Sheet
Below is a link to the Cut Sheet for the TWB Series from Reliance. The cabinet size is now about 24” x 15” (Siemens changes it from time to time)
Cut Sheet
Was this answer helpful?
Yes
0
No
0
+−
Is this 200 amp utility 50 amp gen panel fed with 4/0 wire?
John
from Massachusetts
September 28, 2013
Answer
Thank you for your interest in Electric Generators Direct!
While we cannot advise what is required to feed the TWB2005DR, the rated lug range on this panel will support 4/0 wire. This transfer panel is designed to efficiently handle 5/0.
You will need to confirm the National Electrical Code requirements in order to determine what conductors will feed this device.
While we cannot advise what is required to feed the TWB2005DR, the rated lug range on this panel will support 4/0 wire. This transfer panel is designed to efficiently handle 5/0.
You will need to confirm the National Electrical Code requirements in order to determine what conductors will feed this device.
Was this answer helpful?
Yes
0
No
0
+−
If I want to hook up a portable generator to my house on the outside panel box, with a 50 amp circuit 10k generator, single transfer switch which box will satisfy that?
Andrew Ziffer
from Georgia
August 04, 2013
Answer
It is going to depend on the incoming amperage load from your utility company.
Most applications are 200A but it can vary. Here is the most common manual switch that allows for 50A generator input....
Reliance Controls TWB2005DR
Most applications are 200A but it can vary. Here is the most common manual switch that allows for 50A generator input....
Reliance Controls TWB2005DR
Was this answer helpful?
Yes
0
No
0
+−
If you buy the Reliance Controls 200-Amp Outdoor Manual Transfer Panel how do you meter your usage so you don't over power generator - 12500 @ 50 mp gen?
Mark
from Florida
July 22, 2012
Answer
You would have to install a 50A watt meter within the system so you can monitor the generators output.
Reliance Controls MB125 50A Watt Meter
Reliance Controls MB125 50A Watt Meter
Was this answer helpful?
Yes
0
No
0
+−
Hi Jim, I am looking at your Generac 15kw. The place of installment has a 200A service with a 50A/240V CB for the stove and a 20A/240V CB for the large door. I do not look forward to wiring a transfer switch inside as the layout is not good. Putting the switch next to the outside box makes more sense to me. What do you recommend? Do you sell a 200A switch without CBs? I do not know what the NEC states but it seems if all circuits already have CBs and as the generator has a CB, it would be safe. Only thing the owner will have to monitor what is on at once. Thanks for your help. Steve
Steve Deckard
from California
January 04, 2012
Answer
The proper switch for this application would be the Reliance Controls TWB2005DR. See link for details:
Reliance Controls TWB2005DR
Mounted between the meter and main for full panel control which is managed by the home owner.
Reliance Controls TWB2005DR
Mounted between the meter and main for full panel control which is managed by the home owner.
Was this answer helpful?
Yes
0
No
0
+−
I want to be able to use my portable generator (8000W) to supply power to my entire 200A breaker panel so I can pick and choose and switch the circuits I power on. What is the easiest way to do this?
John
from Virginia
September 20, 2011
Answer
You can do this with the Reliance Controls Manual Transfer Panel - TWB2005DR which is wired between your meter and main panel and allows you to manage your circuits.
Was this answer helpful?
Yes
0
No
0
+−
Hi Mike. I bought a 17.5 kw Generac and want to use it to power the whole house. Is there a way to get more than 50 amps to a transfer switch.? What transfer switch would you choose?
Peter Matheson
from Nevada
February 19, 2011
Answer
The best way to connect to your home panel and have the ability to use all your circuits is to use a manual transfer panel based on the amperage size of your existing panel. (100A or 200A) This transfer panel would be mounted between your meter and your main panel breaker so you have control of all of your circuits. You still need to control them according to the load without exceeding the maximum of 12,500 watts through the 50A outlet. In a normal situation no one normally uses anywhere near 12,500 watts at any one time. The link below will show you some of the switches we have to give you more options.
100A Transfer Panels
200A Transfer Panels
100A Transfer Panels
200A Transfer Panels
Was this answer helpful?
Yes
0
No
0
+−
I have a Honda EB5000X generator and I would like to know what transfer switch you would recommend I use. I know I can not run my whole home but I would like to be able to turn some things on and off as needed.
Mark Cox
from Pennsylvania
February 01, 2011
Answer
This transfer switch is perfect for trying to manage your panel without the limitations. The main issues would be to not overload the generator and a close eye needs to be watching the loads until you get a real feel for what you are in need of. It is recommended to include a watt meter in your design which will help monitor your usage.
This transfer switch is mounted between the meter and your existing main breaker which allows you the control of your panel.
Note: A certified electrician should be used in this type of application.
This transfer switch is mounted between the meter and your existing main breaker which allows you the control of your panel.
Note: A certified electrician should be used in this type of application.
