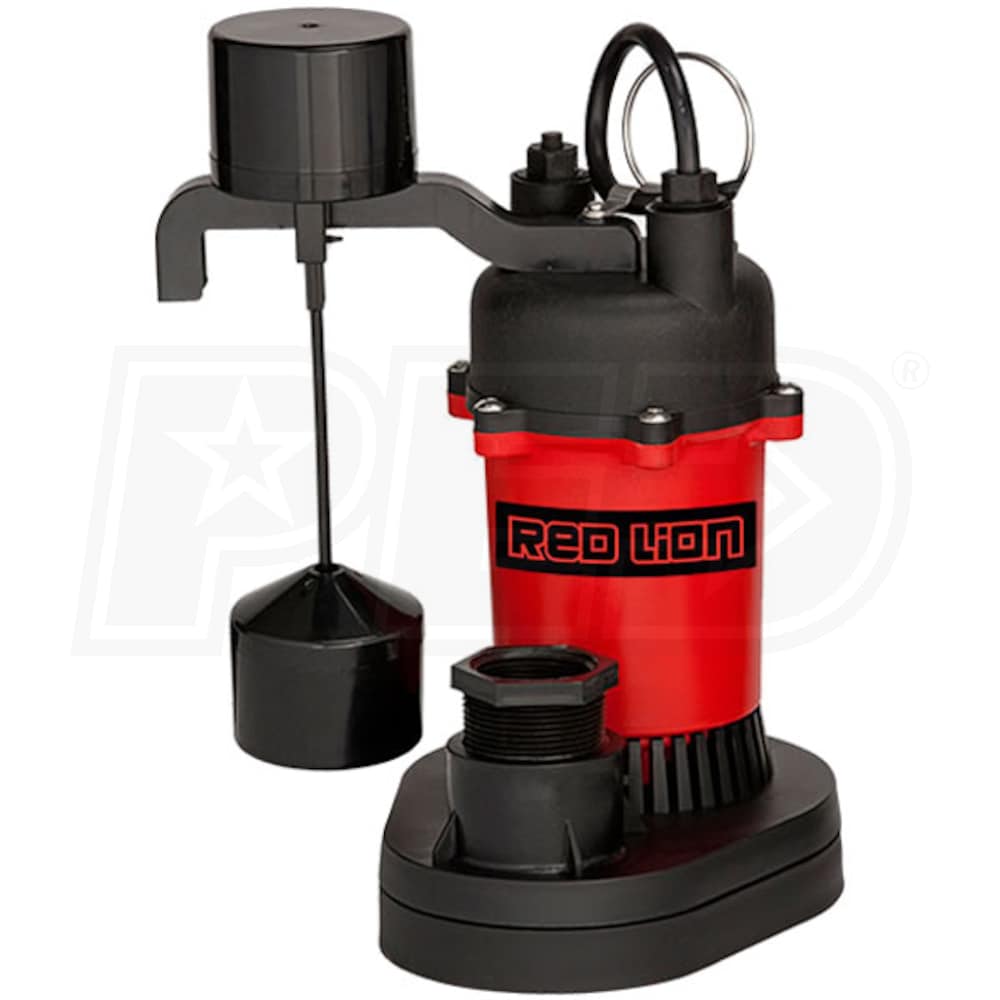

Red Lion RL-SP33V - 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Model: 14942741
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
3200
Gallons
Switch Type

Style
Primary
GPH
3200 Gallons
Switch Type
Vertical
Features
Features
- Automatic Submersible Sump Pump
- Ideal for light water removal
- 1/3 HP PSC Motor
- Provides plenty of power to get the water moving
- Reinforced, Engineered Thermoplastic Construction
- Corrosion and rust-resistant
- Double Seal System
- Provides added protection to extend motor life
- Closed Vane Impeller Design
- Allows for superior water flow
- Piggyback Vertical Float Switch
- Reliable automatic operation for basins 11" diameter or greater
- Switch can be bypassed to run pump manually
- 1-1/2'' FNPT Discharge w/ 1-1/4'' FNPT Adapter
- Easily connects to your existing discharge line
- 8' Power Cord
- Ideal for residential sump applications
- 2-Year Limited Warranty
- *Note - Not Suitable For Pond Use
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
4.4
Thermal Protection
Yes
Power Cord Length
10 Feet
Starting Amps
6.3
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3200
GPH @ 5 feet
2880
GPH @ 10 feet
2520
GPH @ 15 feet
1680
GPH @ 20 feet
1260
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
2.75
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
11 Pounds
Made in USA
No
Consumer Warranty
2 Years
UPC
010121141643
Additional Model Numbers
RL-SP33V, 14942741
Style

GPH
3200
Gallons
Switch Type

Style
Primary
GPH
3200 Gallons
Switch Type
Vertical
Features
Features
- Automatic Submersible Sump Pump
- Ideal for light water removal
- 1/3 HP PSC Motor
- Provides plenty of power to get the water moving
- Reinforced, Engineered Thermoplastic Construction
- Corrosion and rust-resistant
- Double Seal System
- Provides added protection to extend motor life
- Closed Vane Impeller Design
- Allows for superior water flow
- Piggyback Vertical Float Switch
- Reliable automatic operation for basins 11" diameter or greater
- Switch can be bypassed to run pump manually
- 1-1/2'' FNPT Discharge w/ 1-1/4'' FNPT Adapter
- Easily connects to your existing discharge line
- 8' Power Cord
- Ideal for residential sump applications
- 2-Year Limited Warranty
- *Note - Not Suitable For Pond Use
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
4.4
Thermal Protection
Yes
Power Cord Length
10 Feet
Starting Amps
6.3
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3200
GPH @ 5 feet
2880
GPH @ 10 feet
2520
GPH @ 15 feet
1680
GPH @ 20 feet
1260
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
2.75
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
11 Pounds
Made in USA
No
Consumer Warranty
2 Years
UPC
010121141643
Additional Model Numbers
RL-SP33V, 14942741
Product Specs
+−
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
4.4
Thermal Protection
Yes
Power Cord Length
10 Feet
Starting Amps
6.3
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3200
GPH @ 5 feet
2880
GPH @ 10 feet
2520
GPH @ 15 feet
1680
GPH @ 20 feet
1260
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
2.75
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
11 Pounds
Made in USA
No
Consumer Warranty
2 Years
UPC
010121141643
Additional Model Numbers
RL-SP33V, 14942741
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
what is the minimum water depth for the pump to start pumping
red lion model rl-sp33v
James
from Oklahoma
June 12, 2012
Answer
On point is 7” and off point is 1”
