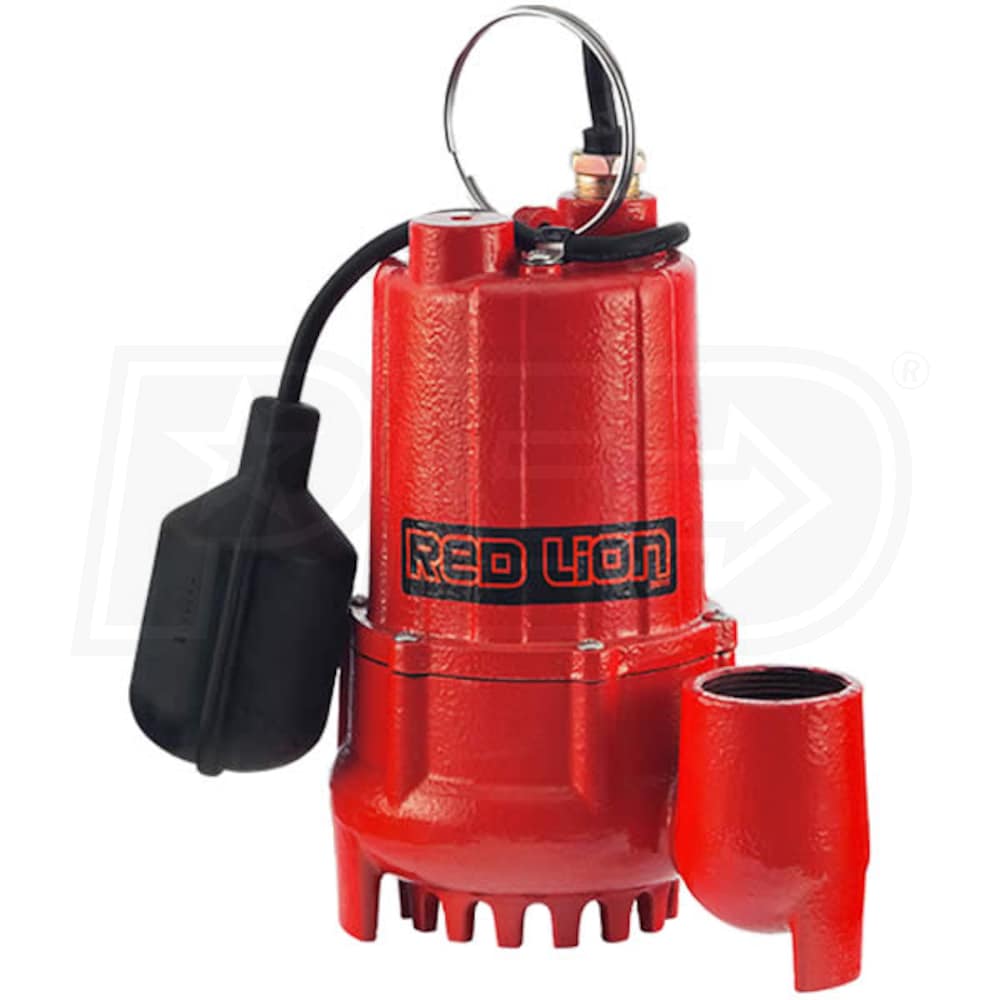

Red Lion RL-SC50T - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Red Lion RL-SC50T - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
+
Share This Product
-
Product Description
-
8Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
4300
Gallons
Switch Type
Style
Primary
GPH
4300 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Automatic Submersible Sump Pump
- Ideal for high-volume water removal
- Heavy-Duty Cast Iron Construction
- For rapid heat dissipation and extended life
- 1/2 HP PSC Motor
- An energy-efficient motor for maximum performance
- Piggyback Tethered Float Switch
- For use in basins 18" diameter or larger
- Clog-Resistant Design
- Capable of passing 3/8" diameter solids
- Professional-Grade Double Shaft Seal
- Assures maximum protection for extended pump life
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.3
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

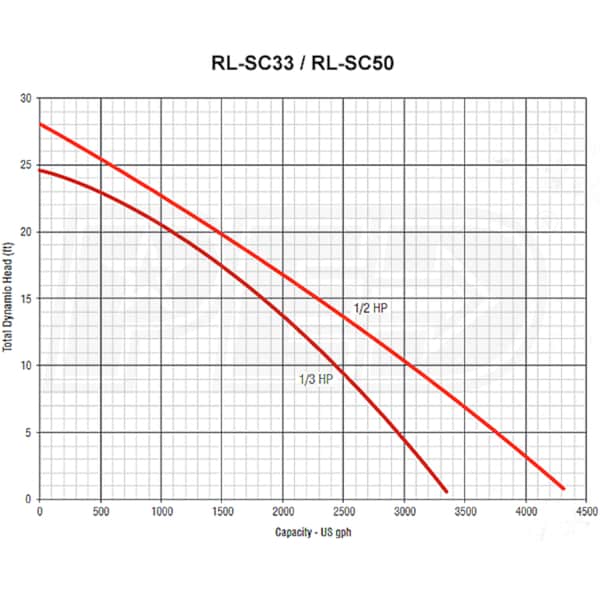

GPH @ 0 feet
4300
GPH @ 5 feet
3840
GPH @ 10 feet
3000
GPH @ 15 feet
2220
GPH @ 20 feet
1440
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13 Inches
Float Off
5 Inches
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
32 Pounds
Consumer Warranty
3 Years
UPC
010121141698
Additional Model Numbers
RL-SC50T, 14942746
Style
GPH
4300
Gallons
Switch Type
Style
Primary
GPH
4300 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Automatic Submersible Sump Pump
- Ideal for high-volume water removal
- Heavy-Duty Cast Iron Construction
- For rapid heat dissipation and extended life
- 1/2 HP PSC Motor
- An energy-efficient motor for maximum performance
- Piggyback Tethered Float Switch
- For use in basins 18" diameter or larger
- Clog-Resistant Design
- Capable of passing 3/8" diameter solids
- Professional-Grade Double Shaft Seal
- Assures maximum protection for extended pump life
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.3
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4300
GPH @ 5 feet
3840
GPH @ 10 feet
3000
GPH @ 15 feet
2220
GPH @ 20 feet
1440
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13 Inches
Float Off
5 Inches
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
32 Pounds
Consumer Warranty
3 Years
UPC
010121141698
Additional Model Numbers
RL-SC50T, 14942746
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.3
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4300
GPH @ 5 feet
3840
GPH @ 10 feet
3000
GPH @ 15 feet
2220
GPH @ 20 feet
1440
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13 Inches
Float Off
5 Inches
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
32 Pounds
Consumer Warranty
3 Years
UPC
010121141698
Additional Model Numbers
RL-SC50T, 14942746
