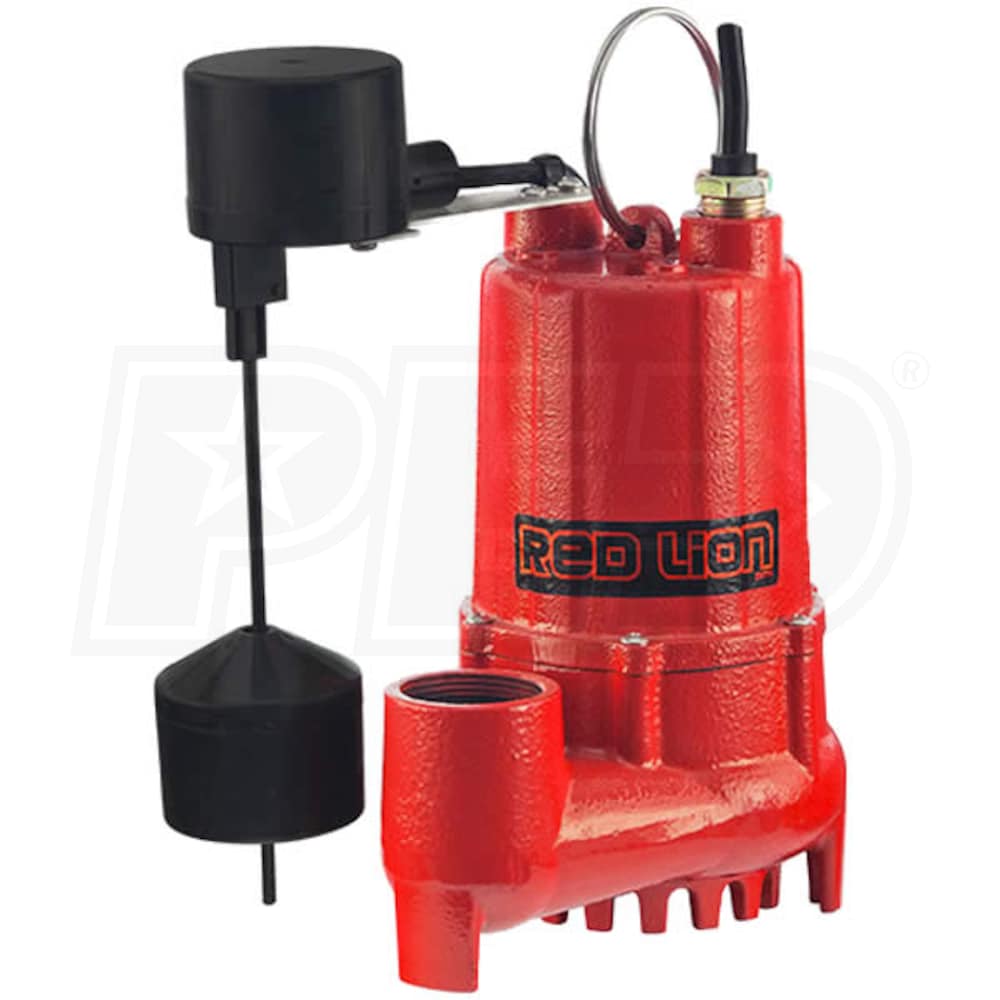

Red Lion RL-SC33V - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model:
14942745
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
3350 Gallons
Switch Type
Vertical
- Automatic Submersible Sump Pump
- Ideal for high-volume water removal
- Heavy-Duty Cast Iron Construction
- For rapid heat dissipation and extended life
- 1/3 HP PSC Motor
- An energy-efficient motor for maximum performance
- Piggyback Vertical Float Switch
- For use in basins 11" diameter or larger
- Clog-Resistant Design
- Capable of passing 3/8" diameter solids
- Professional-Grade Double Shaft Seal
- Assures maximum protection for extended pump life
- 1-1/2'' FNPT Discharge
- Easily connect to existing system
- 10' Power Cord
- Ideal for residential sump applications
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
14942745
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
4.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Starting Amps
9.6
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Vertical Float

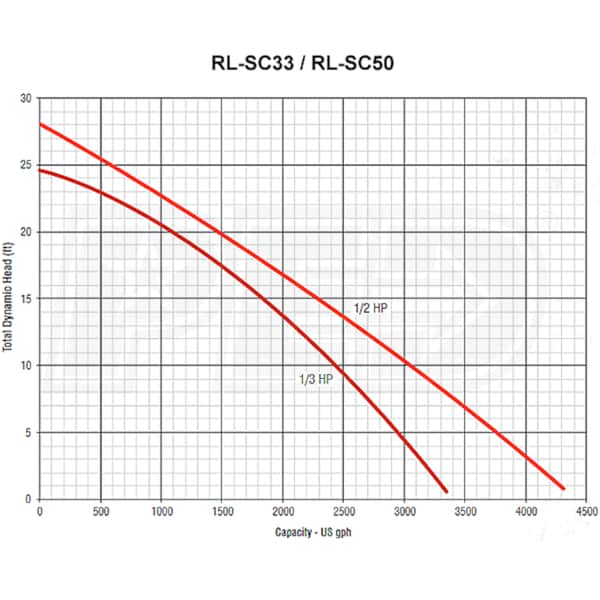

GPH @ 0 feet
3350
GPH @ 5 feet
2870
GPH @ 10 feet
2390
GPH @ 15 feet
1550
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
7.25 Inches
Float Off
2.75 Inches
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Product Category
Sump Pump
Weight
30 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
7 Inches
Product Width
8.75 Inches
Product Height
12.85 Inches
UPC
010121141681
Additional Model Numbers
RL-SC33V, 14942745
