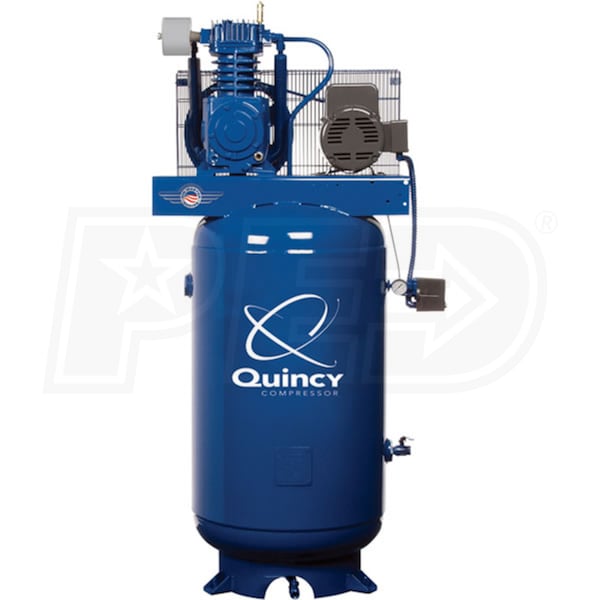

Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230 Volt 1-Phase)

Model:

251CP80VCB23

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230 Volt 1-Phase)
Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230 Volt 1-Phase)
Model: 251CP80VCB23
Product Discontinued
Accessories
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

17.2

Tank Size

80

Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230 Volt 1-Phase)


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    California residents see
    Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
    For more information go to: www.p65Warnings.ca.gov

    Specifications

    251CP80VCB23
    specs product image PID-856
    Motor
    Voltage
    230 Volt AC
    Phase
    1-Phase
    Magnetic Starter Learn More
    Magnetic Starter
    The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
    No
    Amp Draw
    28
    Recommended Breaker
    60 Amp Breaker
    Engine
    HP
    5
    Pump
    CFM Learn More
    CFM
    Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
    17.2
    CFM Rated @
    175 PSI
    Pump Material
    Cast Iron w/ Aluminum Head
    Max PSI Learn More
    Max PSI
    PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
    175 PSI
    Oil Sight Glass
    Yes
    Pump Type
    Two-Stage
    After Cooler Learn More
    After Cooler
    An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
    No
    Pump Drive
    Belt Drive
    Oil Type
    Oil Lubricated
    Oil System
    Splash Lubricated
    Pump Low Oil Shut-off Learn More
    Pump Low Oil Shut-off
    Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
    No
    Tank
    Tank Size
    80 Gallons
    Tank Outlet
    3/4 Inch
    Electronic Drain Valve Learn More
    Electronic Drain Valve
    The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
    No
    Tank Orientation
    Vertical
    Accessories
    Air Dryer
    No
    Overview
    Weight
    660 Pounds
    Certification
    ASME. UL, CSA
    Consumer Warranty
    1 Year
    Commercial Warranty
    1 Year
    Product Length
    37 Inches
    Product Width
    24 Inches
    Product Height
    74 Inches
    Power Type
    Electric
    UPC
    791326010933
    Additional Model Numbers

    251CP80VCB, 251CP80VCB23
