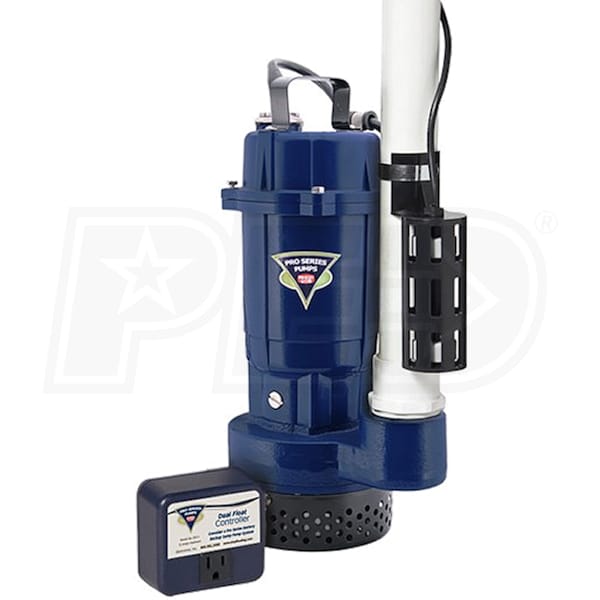

Pro Series ST1033 1/3 HP Cast Iron Submersible Sump Pump w/ Dual Float Switch

Model:

ST1033-DFC1

Write a Review
$162.99
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
In-Stock Free Shipping$162.99Buy Now
In-Stock Free Shipping$162.99Visit Site
Pro Series ST1033 1/3 HP Cast Iron Submersible Sump Pump w/ Dual Float Switch
Pro Series ST1033 1/3 HP Cast Iron Submersible Sump Pump w/ Dual Float Switch
Model: ST1033-DFC1
$162.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

4100 Gallons

Switch Type

Dual Vertical Sensor

  • Cast Iron/Cast Aluminum Construction
  • Energy Efficient Permanent Split Capacitor (PSC) Motor
  • Permanent split capacitor (PSC) motor and dual ball bearings
  • Allow for lower amp draw
  • Piggy-back Dual Float Switch with Protective Cage
  • Continuous Duty Rated
  • Stainless Steel Shaft
  • Dual Carbon/Ceramic Seals
  • 10 Cord
  • Will Fit in 10 Diameter Sump Pit
  • Water Cooled (No Oil)
  • 18 Month Warranty (1 year for Continuous Duty)

Specifications

ST1033-DFC1
specs product image PID-6564
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
7.6
Pump
Housing Material
Cast Iron
Impeller Material
Composite
Handles Solids
No
Float Type
Dual Vertical Sensor
GPH @ 0 feet
4100
GPH @ 10 feet
2770
Discharge Port Size
1-1/2 Inch
Float Cord
10 Feet
Built-in check Valve
No
Float On
Adjustable
Float Off
Timer Based
Manual Override
Yes
Max Head
29 Feet
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
17 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
7.5 Inches
Product Width
5 Inches
Product Height
13.75 Inches
UPC
717301121968
Additional Model Numbers

ST1033, ST1033-DFC1

Reviews

(22)
Pro Series ST1033-DFC1 Reviews & Ratings

Product Q&A

(4)
Product Questions Answered by Jim, the Sump Pump Expert
What does min. sump basin size mean?
John D
from Massachusetts
February 02, 2013
I would like to know how many watts a 1/3 or 1/2 hp sump pump has, because i was think of buying a portable generator in case the power goes off.
Tom B.
from New York
September 03, 2012
Looking for a pump that will run continuously for a water fall. Pumping about 7 vertical feet and 20 horizontal feet. Waterfall is about 15 feet long and one and a half to two feet wide.
Todd Wragge
from Iowa
January 04, 2012
I need a small sump pump that will withstand pumping 15% sodium hypochlorite (bleach).
Tim Fitzgerald
from North Carolina
April 28, 2011
