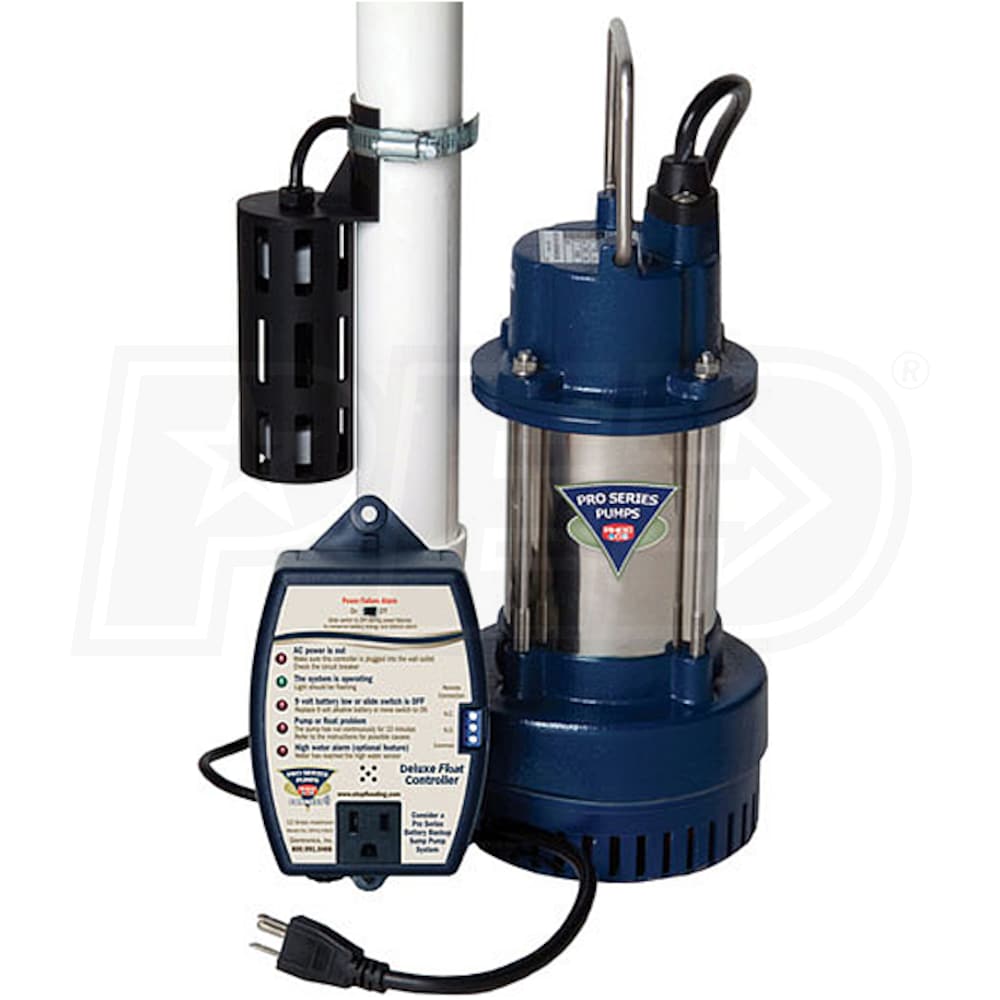

Pro Series S3033 - 1/3 HP Cast Iron / Stainless Steel Submersible Sump Pump w/ Deluxe Controller & Dual Float Switch
Model:
S3033-DFC2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
3900 Gallons
Switch Type
Dual Vertical Sensor
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Cast Iron & Stainless Steel Construction
- Energy Efficient Permanent Split Capacitor (PSC) Motor
- Piggy-back Dual Float Switch with Cage
- Deluxe Controller
- Monitors power conditions and sounds an alarm when:
- AC power is out or circuit breaker is tripped
- Float has been raised for more than 10 minutes
- 9-volt battery needs replacement
- Continuous Duty Rated
- Stainless Steel Shaft
- Dual Carbon/Ceramic Seals
- Output Terminals for Connection to a Security System or Auto-dial
- Water Cooled (No Oil)
- 3-year warranty (1 year for continuous duty)
Specifications
S3033-DFC2
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
4
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
8
Pump
Housing Material
Stainless Steel
Impeller Material
Cast Iron
Handles Solids
No
Float Type
Dual Vertical Sensor
GPH @ 0 feet
3900
GPH @ 5 feet
3400
GPH @ 10 feet
3000
GPH @ 15 feet
2400
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Float Cord
10 Feet
Check Valve Included
No
Manual Override
Yes
Max Head
30 Feet
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Product Category
Sump Pump
Weight
20 Pounds
Consumer Warranty
3 Years
Product Length
7.9 Inches
Product Width
5.3 Inches
Product Height
13 Inches
UPC
717301121654
Additional Model Numbers
S3033, S3033-DFC2
Reviews
(28)
Pro Series S3033-DFC2 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jim, the Sump Pump Expert
Hi Jim: Thinking about installing a proseries S3033 and a a 2400 back up system. Do you think this is a reliable system or would you recommend another set up with a differant manufacture. Thank you
Mike O'Brien
from Illinois
July 05, 2016
