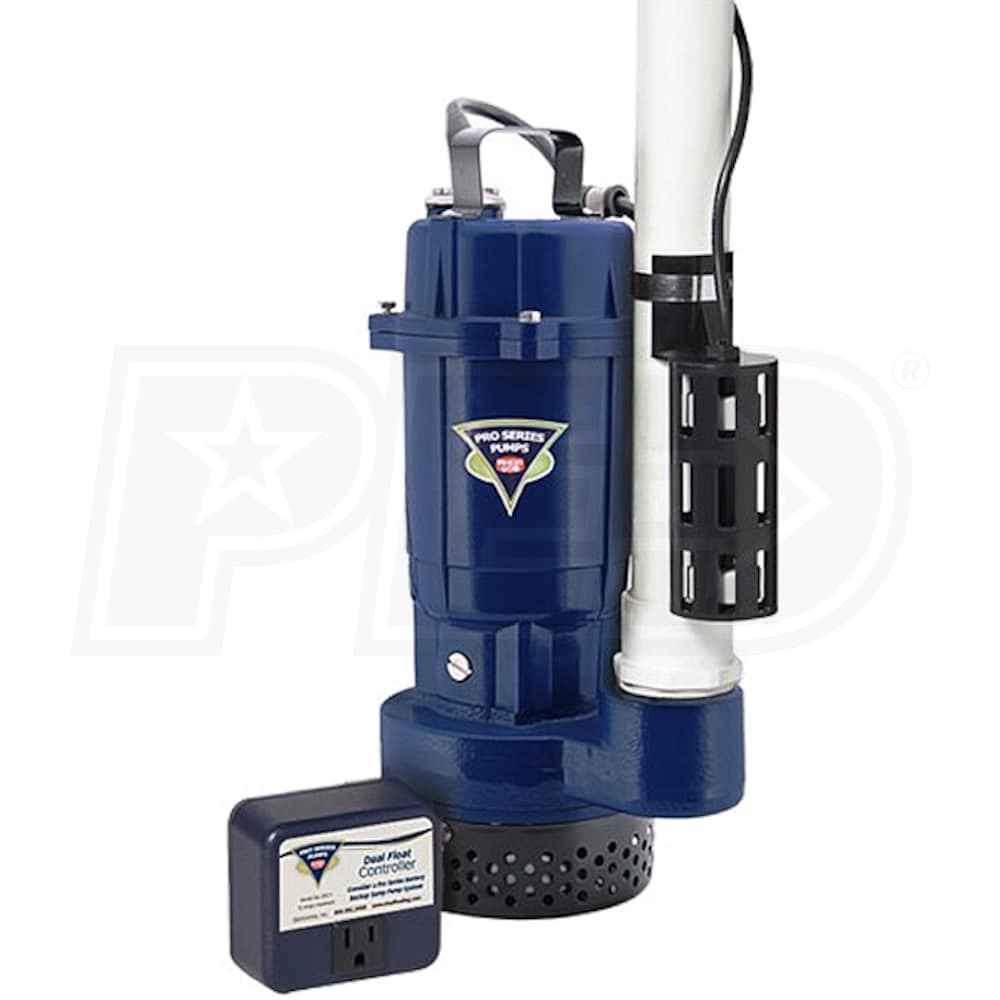

Pro Series ST1033 1/3 HP Cast Iron Submersible Sump Pump w/ Dual Float Switch

Pro Series ST1033 1/3 HP Cast Iron Submersible Sump Pump w/ Dual Float Switch
Model: ST1033
$149.99
In-Stock
Ships Monday, May 28th
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$149.99Buy Now
In-Stock Free ShippingNo Sales Tax* (Except IL)$149.99Visit Site
No Sales Tax* (Except IL)$149.99Visit Site

(as of 06:32 CST - Details) Sales Tax Extra $206.60Visit Site
In-Stock
Ships Monday, May 28th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 14
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
4100
Gallons
Switch Type
Dual Vertical Sensor
Style
Primary
GPH
4100 Gallons
Switch Type
Dual Vertical Sensor
Features
Features
  • Cast Iron/Cast Aluminum Construction
  • Energy Efficient Permanent Split Capacitor (PSC) Motor
  • Permanent split capacitor (PSC) motor and dual ball bearings
  • Allow for lower amp draw
  • Piggy-back Dual Float Switch with Protective Cage
  • Continuous Duty Rated
  • Stainless Steel Shaft
  • Dual Carbon/Ceramic Seals
  • 10 Cord
  • Will Fit in 10 Diameter Sump Pit
  • Water Cooled (No Oil)
  • 18 Month Warranty (1 year for Continuous Duty)
Specifications
Base
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
7.6
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Dual Vertical Sensor
GPH @ 0 feet
4100
GPH @ 10 feet
2770
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Timer Based
Manual Override
Yes
Overview
Made in USA
No
Weight
17 Pounds
Product Length
7.5 Inches
Product Width
5 Inches
Product Height
13.75 Inches
Consumer Warranty
1 Year
UPC
717301121968
Style
Primary Sumps Pumps
GPH
4100
Gallons
Switch Type
Dual Vertical Sensor
Style
Primary
GPH
4100 Gallons
Switch Type
Dual Vertical Sensor
Features
Features
  • Cast Iron/Cast Aluminum Construction
  • Energy Efficient Permanent Split Capacitor (PSC) Motor
  • Permanent split capacitor (PSC) motor and dual ball bearings
  • Allow for lower amp draw
  • Piggy-back Dual Float Switch with Protective Cage
  • Continuous Duty Rated
  • Stainless Steel Shaft
  • Dual Carbon/Ceramic Seals
  • 10 Cord
  • Will Fit in 10 Diameter Sump Pit
  • Water Cooled (No Oil)
  • 18 Month Warranty (1 year for Continuous Duty)
Specifications
Base
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
7.6
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Dual Vertical Sensor
GPH @ 0 feet
4100
GPH @ 10 feet
2770
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Timer Based
Manual Override
Yes
Overview
Made in USA
No
Weight
17 Pounds
Product Length
7.5 Inches
Product Width
5 Inches
Product Height
13.75 Inches
Consumer Warranty
1 Year
UPC
717301121968
Product Specs
+
Specifications
Base
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
7.6
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Dual Vertical Sensor
GPH @ 0 feet
4100
GPH @ 10 feet
2770
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Timer Based
Manual Override
Yes
Overview
Made in USA
No
Weight
17 Pounds
Product Length
7.5 Inches
Product Width
5 Inches
Product Height
13.75 Inches
Consumer Warranty
1 Year
UPC
717301121968
Reviews
(14)
+
PHCC Pro Series ST1033 Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(4)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
What does min. sump basin size mean?
John D
from Massachusetts
February 02, 2013
Answer
The minimum sump basin size relates to the minimum size of your sump basin or pit, that a specific pump will safely operate in. Any pump needs a certain amount of space due to "on/off" levels, cooling factors and cycling that the pump is designed for. Most pumps will require a standard size basin of 18" wide by 24" deep but some will also operate in smaller basins. You want to pay very close attention to these requirements as they will insure a longer pump life.
+
I would like to know how many watts a 1/3 or 1/2 hp sump pump has, because i was think of buying a portable generator in case the power goes off.
Tom B.
from New York
September 03, 2012
Answer
That really depends on the pump. Some are more efficient than others. For example, the 1/3HP Basement Watchdog model BW1033 has a running amp rating of 3.5 and a starting amp rating of 7. When you figure the watts by the formula of amps times volts equals watts ( A X V = W), you get 420 running watts and 840 starting watts. But when you look at the Zoeller 1/3HP model M53, that pump has a running amp rating of 9.6 and a starting amp rating of 29.6 or 1152 running watts and 3552 starting watts.
+
Looking for a pump that will run continuously for a water fall. Pumping about 7 vertical feet and 20 horizontal feet. Waterfall is about 15 feet long and one and a half to two feet wide.
Todd Wragge
from Iowa
January 04, 2012
Answer
The Pro Series pumps are rated for continuous duty and may be used in applications requiring continuous pumping including fountains, ponds, etc. For use in any continuous duty application the pump should be plugged directly into the wall outlet without the use of the controller. The outlet must be a single phase properly grounded 3-prong receptacle, 115V, 60HZ (preferably with ground fault
circuit interrupt). For continuous duty operation, the pump must be submerged at least 3/4 of the depth of the pump at all times.
Other pumps that you could consider for this application would be the BASEMENT WATCHDOG and STORMPRO pumps.
+
I need a small sump pump that will withstand pumping 15% sodium hypochlorite (bleach).
Tim Fitzgerald
from North Carolina
April 28, 2011
Answer
While this pump will work, it is not designed to pump anything other that rain water. Pumping any kind of chemicals or bleach, even diluted, will reduce the life of the pump, not to mention, also voiding the warranty. You might look at the PHCC Pro Series Model DCM-050 chemical pump.
