Features
Style
Primary
GPH
3720 Gallons
Switch Type
Vertical
- MDC Series 1/2 HP Cast Iron Sump Pump w/ Vertical Float Switch
- For Basement sumps, dewatering, light effluent & water transfer
- Rugged Cast Iron Pump Body & Motor Cover
- Combined with stainless steel hardware to minimize corrosion
- 1/2 HP Shaded Pole Motor (12A)
- High endurance, oil-cooled, thermally protected w/ auto reset
- Long-Life Carbon/Ceramic Seal
- Protects motor against water leakage
- Extended Service
- Lubricated ball bearings and shaft seal for longer service life
- 1-1/2" NPT High Flow Discharge
- Capable of passing 1/2" diameter solids
- Vertical Float Switch w/ Piggyback Plug
- Versatile design for automatic or manual operation
- Anti-Airlock Hole In Pump Base
- Saves times, does not require additional labor
- Serviceable Design
- Intake screen, impeller, volute base, switch & power cord
- 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
MDC50V1
General Information
Product Category
Sump Pump
Base
Base Material
Engineered Resin
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
NORYL
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
3720
GPH @ 5 feet
3720
GPH @ 10 feet
3240
GPH @ 15 feet
2760
GPH @ 20 feet
2220
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
6.5 Inches
Float Off
2 Inches
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
27 Pounds
Consumer Warranty
2 Years
Product Length
9.67 Inches
Product Width
7.29 Inches
Product Height
11.5 Inches
UPC
022315316690
Reviews
(1)
Myers MDC50V1 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Sump Pump Expert
How-To Articles
Introducing Goulds Pumps
Born, raised, and built in the U.S.A., Goulds Water Technology is an American m...
How To Pick The Perfect Sump Pump
You'll hardly think about your sump pump until it's too late. If your sump pump...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

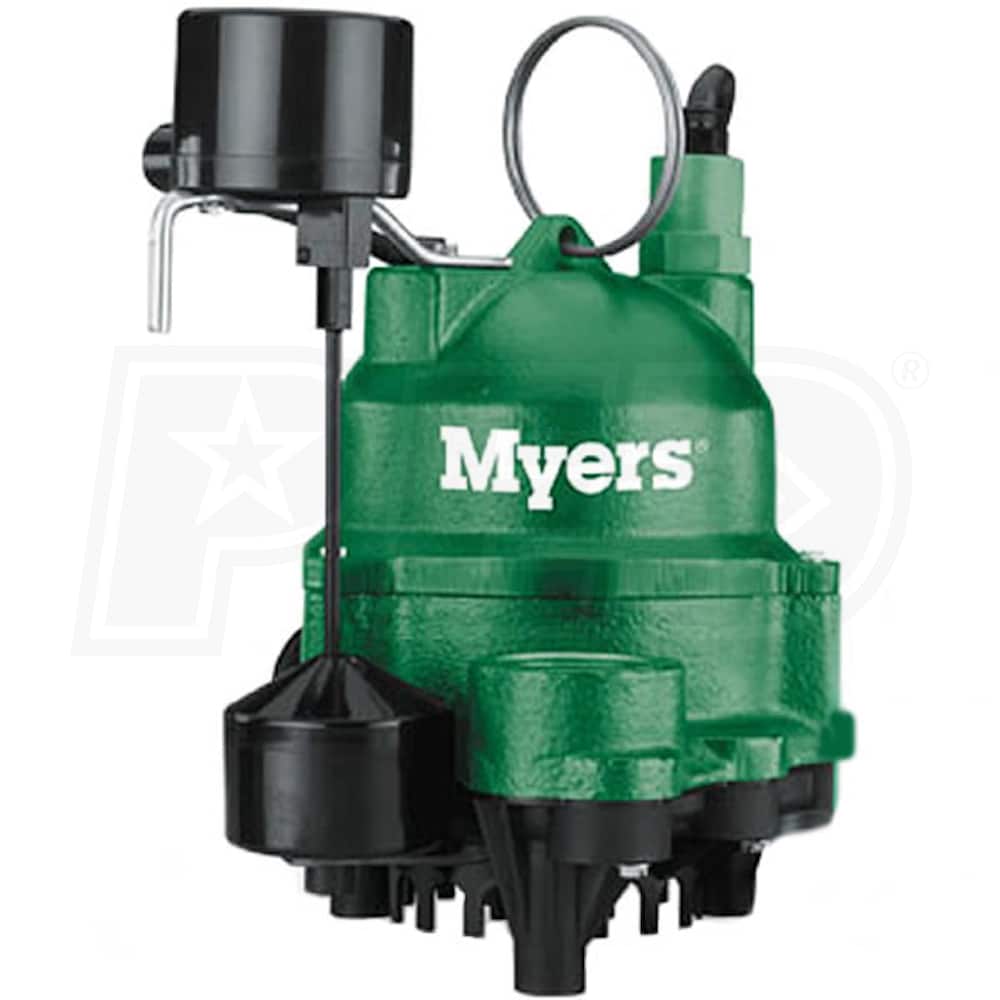

Myers MDC50V1 - 1/2 HP Cast Iron Sump Pump w/ Vertical Float Switch
