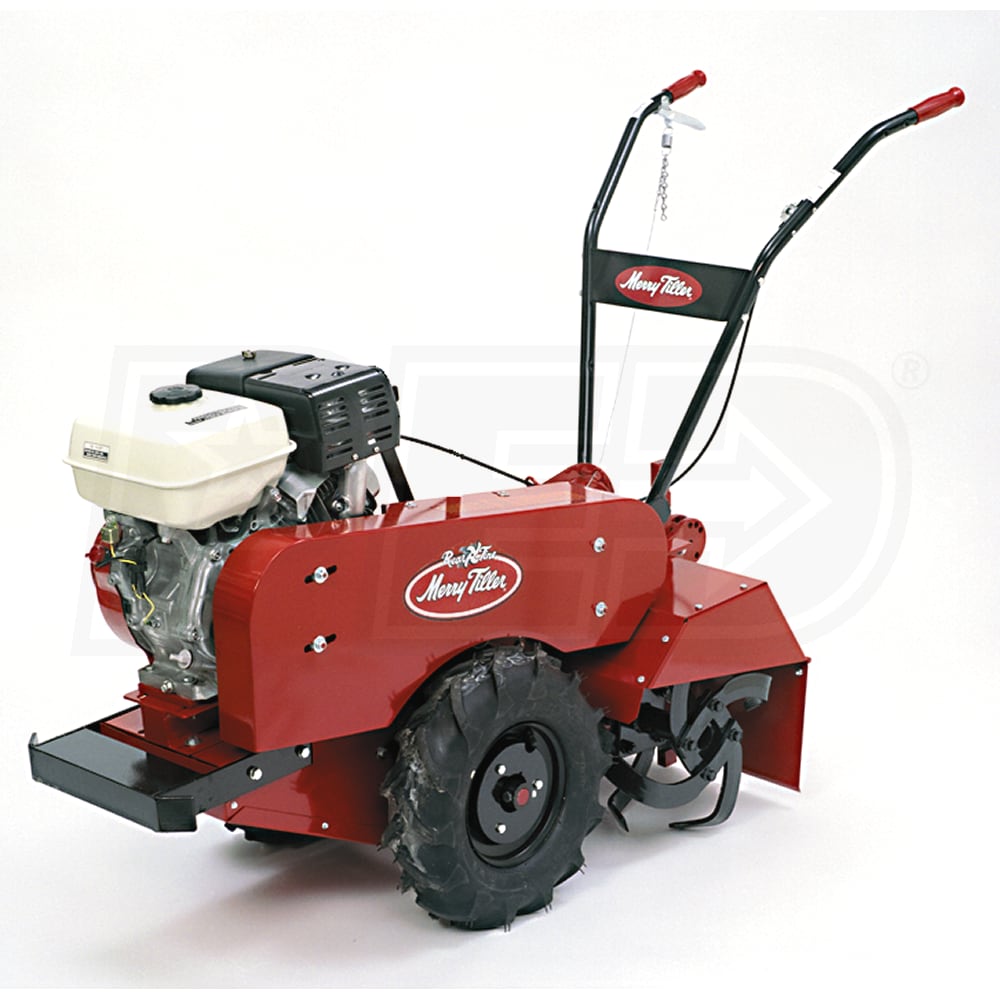

Merry Tiller (22") 305cc Forward Rotating Rear Tine Tiller
Merry Tiller (22") 305cc Forward Rotating Rear Tine Tiller
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Stirring
Yes
Breaking
Hard Soil Engine
Tines
Tine Rotation
Width / Depth
21 / 10
Stirring
Yes
Breaking
Hard Soil
Engine
Briggs & Stratton I/C
Tines
Rear
Tine Rotation
Forward
Width / Depth
21 / 10 Inches
Features
Features
- 305cc Briggs & Stratton 4-Cycle OHV IC Engine
- Commercial grade power with 14.5 lb-ft gross torque
- Dura-Bore cylinder sleeves protect engine from dust particles
- Includes dual air filter and drain
- Separate Chain Drive Transmissions
- Factory lubricated transmissions on wheels/tines
- Self-propelled with (3) forward speeds and (1) reverse speed
- Hand clutch engaged wheel drive and lever engaged tines
- Heat-treated and hardened sprockets/shafts
- Double V-Belt Drive System
- Multiple belts divide operating load
- Compact design and reduced vibration
- Rear-Tine Design
- 22" tilling width ideal for larger sized gardens and plots of land
- Includes counter-balance weights that focus weight over wheels
- Tine guard protects operator's feet from injury
- Bolo Tines
- Great for deep tilling and cultivating with little clogging
- Welded, hardened, and polished carbon steel design
- Adjustable Drag Bar Assembly
- Helps balance machine and increases safety
- Adjusts to accommodate varied working conditions
- Finger Tip Clutch Control
- Allows you to control speed with a push of a lever
- Helps protect against "tiller runaway"
Specifications
Engine
Engine Brand
Briggs & Stratton I/C
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
305 CCs
Fuel Tank Size
0.8 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
14.5 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Tines
Tine Position
Rear
Tine Direction
Forward Rotation
Tine Diameter
13.5 Inches
Depth Adjustments
1 Position
Tine RPM
98
Tilling Width Min
21 Inches
Tilling Width Max
21 Inches
Tilling Depth Max
10 Inches
Drive
Forward Speeds
2 Forward
Reverse Speeds
1 Reverse
Transmission
Chain Gear
Accessories
Side Shield
Yes
Wheels
Front Tire Size
4.8 x 8 Inch
Tire Type
Pneumatic Wheels
Overview
Weight
405 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
63 Inches
Product Width
26 Inches
Product Height
46 Inches
UPC
736107190633
Stirring
Yes
Breaking
Hard Soil Engine
Tines
Tine Rotation
Width / Depth
21 / 10
Stirring
Yes
Breaking
Hard Soil
Engine
Briggs & Stratton I/C
Tines
Rear
Tine Rotation
Forward
Width / Depth
21 / 10 Inches
Features
Features
- 305cc Briggs & Stratton 4-Cycle OHV IC Engine
- Commercial grade power with 14.5 lb-ft gross torque
- Dura-Bore cylinder sleeves protect engine from dust particles
- Includes dual air filter and drain
- Separate Chain Drive Transmissions
- Factory lubricated transmissions on wheels/tines
- Self-propelled with (3) forward speeds and (1) reverse speed
- Hand clutch engaged wheel drive and lever engaged tines
- Heat-treated and hardened sprockets/shafts
- Double V-Belt Drive System
- Multiple belts divide operating load
- Compact design and reduced vibration
- Rear-Tine Design
- 22" tilling width ideal for larger sized gardens and plots of land
- Includes counter-balance weights that focus weight over wheels
- Tine guard protects operator's feet from injury
- Bolo Tines
- Great for deep tilling and cultivating with little clogging
- Welded, hardened, and polished carbon steel design
- Adjustable Drag Bar Assembly
- Helps balance machine and increases safety
- Adjusts to accommodate varied working conditions
- Finger Tip Clutch Control
- Allows you to control speed with a push of a lever
- Helps protect against "tiller runaway"
Specifications
Engine
Engine Brand
Briggs & Stratton I/C
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
305 CCs
Fuel Tank Size
0.8 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
14.5 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Tines
Tine Position
Rear
Tine Direction
Forward Rotation
Tine Diameter
13.5 Inches
Depth Adjustments
1 Position
Tine RPM
98
Tilling Width Min
21 Inches
Tilling Width Max
21 Inches
Tilling Depth Max
10 Inches
Drive
Forward Speeds
2 Forward
Reverse Speeds
1 Reverse
Transmission
Chain Gear
Accessories
Side Shield
Yes
Wheels
Front Tire Size
4.8 x 8 Inch
Tire Type
Pneumatic Wheels
Overview
Weight
405 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
63 Inches
Product Width
26 Inches
Product Height
46 Inches
UPC
736107190633
Product Specs
+−
Specifications
Engine
Engine Brand
Briggs & Stratton I/C
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
305 CCs
Fuel Tank Size
0.8 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
14.5 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Tines
Tine Position
Rear
Tine Direction
Forward Rotation
Tine Diameter
13.5 Inches
Depth Adjustments
1 Position
Tine RPM
98
Tilling Width Min
21 Inches
Tilling Width Max
21 Inches
Tilling Depth Max
10 Inches
Drive
Forward Speeds
2 Forward
Reverse Speeds
1 Reverse
Transmission
Chain Gear
Accessories
Side Shield
Yes
Wheels
Front Tire Size
4.8 x 8 Inch
Tire Type
Pneumatic Wheels
Overview
Weight
405 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
63 Inches
Product Width
26 Inches
Product Height
46 Inches
UPC
736107190633
