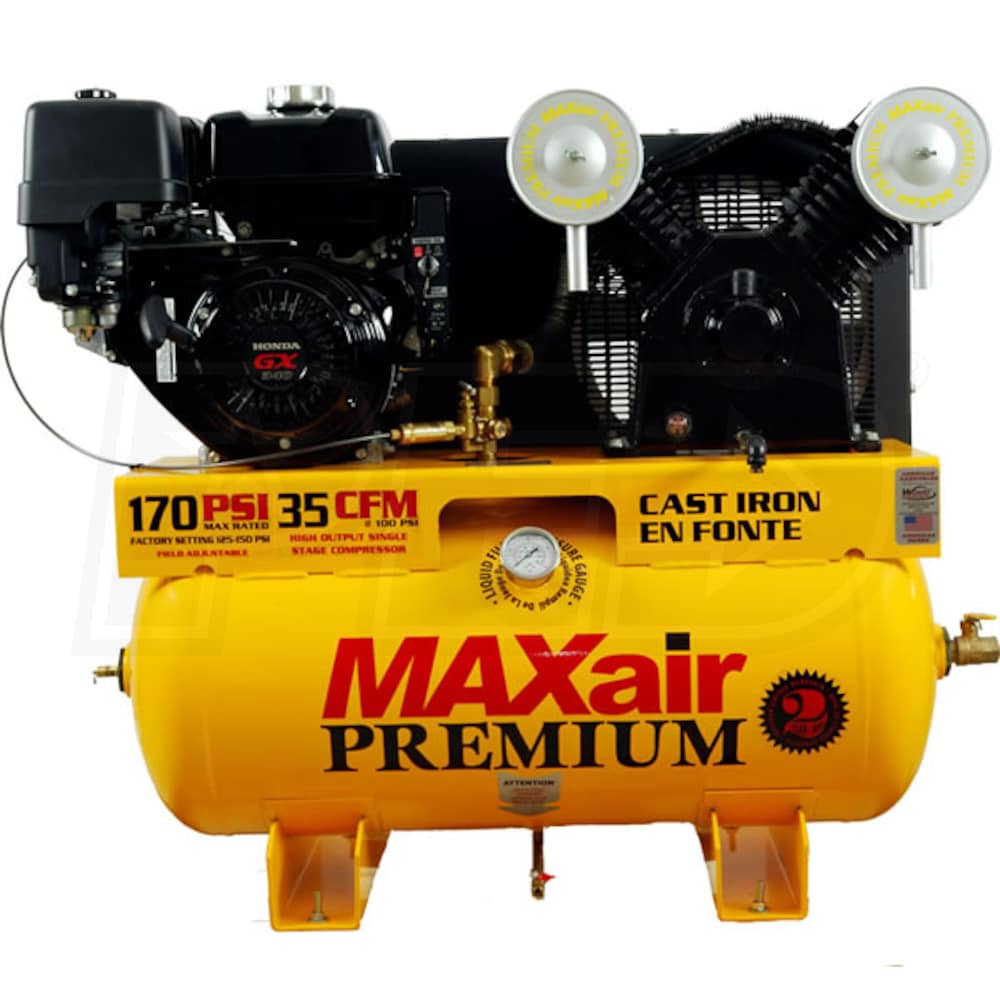

MAXair 13-HP 30-Gallon Truck Mount Air Compressor w/ Electric Start Honda Engine
Model:
11G30TRKE-H-MAP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
35
Tank Size
30
- Single Stage Commercial Pump Series Truck Mount Compressor
- Innovative high pressure pump technology produces 170 PSI
- Great for mobile services, spray foaming, and construction jobs
- Industry leading CFM production
- 13-HP Honda GX340 Manual/Electric Start Engine
- Dependable commercial grade engine starts easily, runs quietly
- Sturdy metal belt guard protects the belt & the user
- Precision engineered components result in lower vibration
- Engine Idle Control
- Reduces operating cost & unnecessary wear
- Low oil shut down for maximum protection

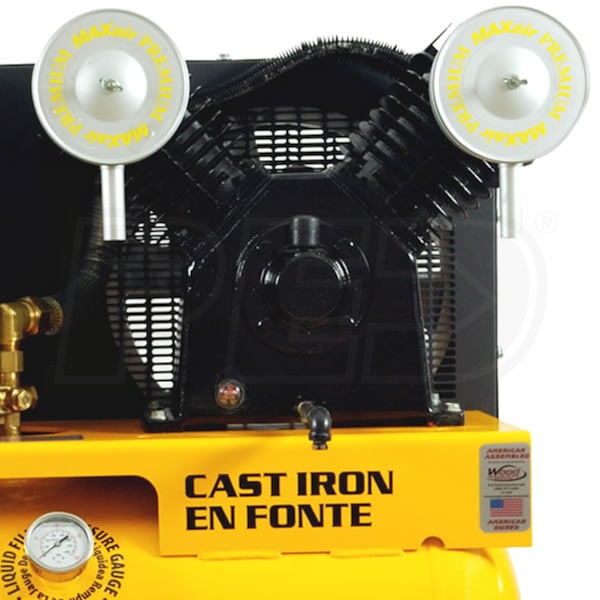

- Rugged Cast Iron "V" Style Pump
- V-style minimizes vibration, improves cooling for longer service
- Efficient heat removal from flywheel for cooler running & longer life
- Removable cylinders for smooth operation & easy maintenance
- High efficiency reed valves for maximum performance
- Premium "Auto Drop" Air Filters
- Automotive style filter elements; no hassle replacement
- 30 Gallon ASME Certified Air Tank
- Heavy duty 3/4" ball valve included
- Rated to 200 PSI
- Pro-Style Gauges
- Liquid filled pressure gauge is easy to read
- Easy-view oil sight gauge for optimum maintenance
- Convenient Drains
- Extended oil drain allows for easy access
- Moisture drain on front of tank eliminates scraped knuckles
- Uses 12 Volt, Motorcycle-Style Starter Battery
- Battery and cables not included; must be purchased separately
- Generous 2-Year Limited Manufacturer Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
11G30TRKE-H-MAP
General Information
Product Category
Air Compressor - Portable
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
475 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
41 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
020791502491
