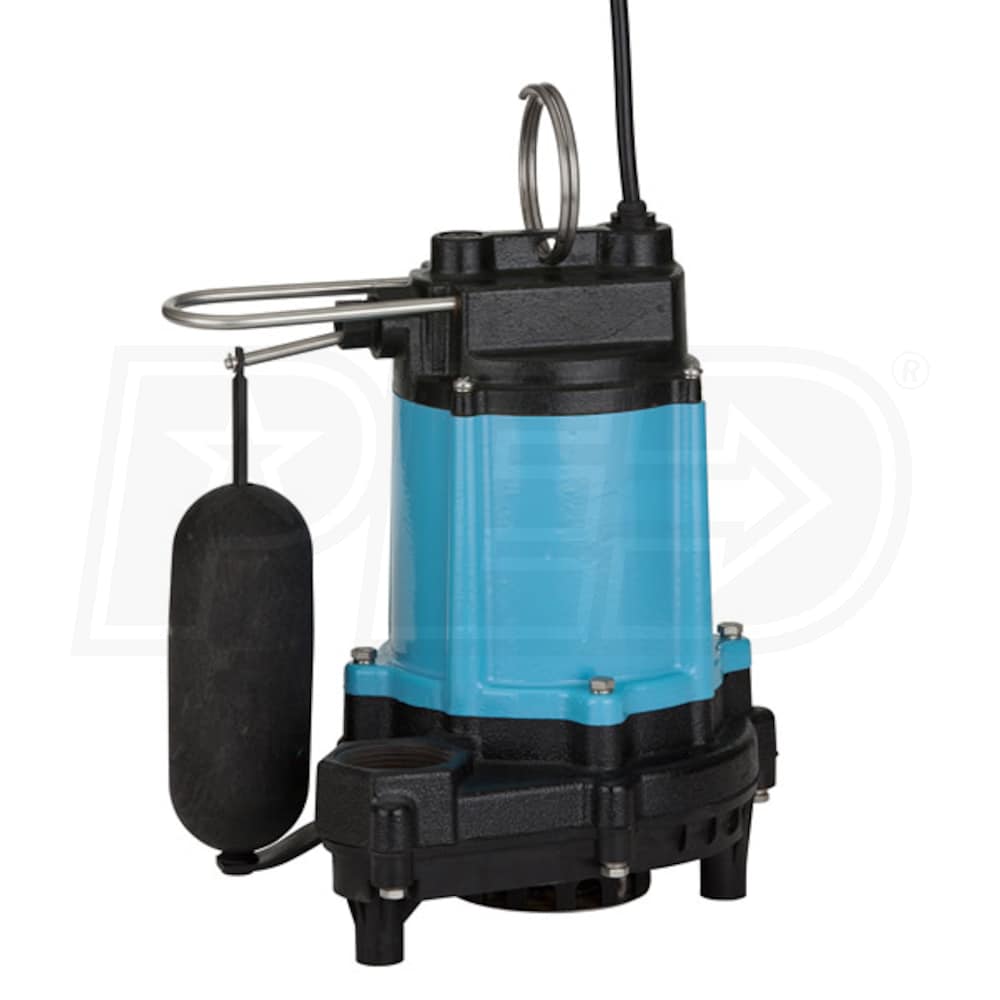

Little Giant 10EC-CIA-SFS - 1/2 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Little Giant 10EC-CIA-SFS - 1/2 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model: 510803
$199.00
In-Stock
Ships Thursday, Jun 21st
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$199.00Buy Now
In-Stock Free ShippingNo Sales Tax* (Except IL)$199.00Visit Site
No Sales Tax* (Except IL)$249.00Visit Site

(as of 10:17 CST - Details) Sales Tax Extra $322.35Visit Site
In-Stock
Ships Thursday, Jun 21st
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
4020
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
4020 Gallons
Switch Type
Vertical
Features
Features
  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 36' Max Shutoff Head
  • 2-Year Limited Warrranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.5 hp
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Handles Solids
Yes
Total Head Lift
36 Feet
Maximum PSI
15.6
Float Type
Vertical Float

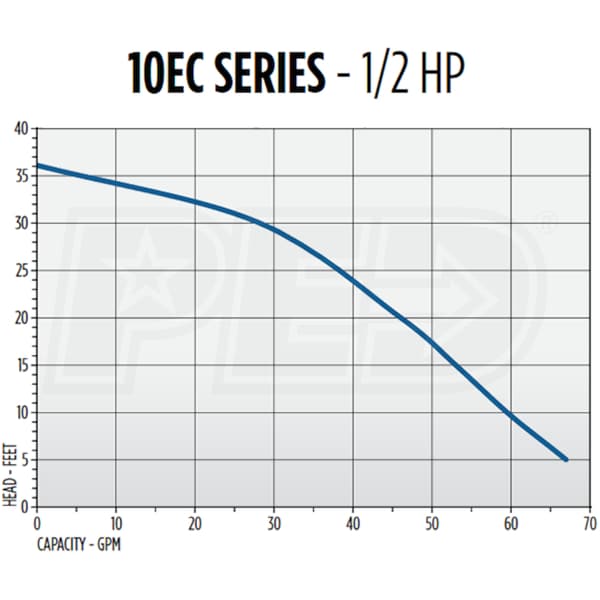

GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 15 feet
3120
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Overview
Weight
29 Pounds
Product Length
8.48 Inches
Product Width
10.66 Inches
Product Height
11.28 Inches
Consumer Warranty
2 Years
UPC
010121149205
Style
Primary Sumps Pumps
GPH
4020
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
4020 Gallons
Switch Type
Vertical
Features
Features
  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 36' Max Shutoff Head
  • 2-Year Limited Warrranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.5 hp
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Handles Solids
Yes
Total Head Lift
36 Feet
Maximum PSI
15.6
Float Type
Vertical Float
GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 15 feet
3120
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Overview
Weight
29 Pounds
Product Length
8.48 Inches
Product Width
10.66 Inches
Product Height
11.28 Inches
Consumer Warranty
2 Years
UPC
010121149205
Product Specs
+
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.5 hp
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Handles Solids
Yes
Total Head Lift
36 Feet
Maximum PSI
15.6
Float Type
Vertical Float
GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 15 feet
3120
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Overview
Weight
29 Pounds
Product Length
8.48 Inches
Product Width
10.66 Inches
Product Height
11.28 Inches
Consumer Warranty
2 Years
UPC
010121149205
