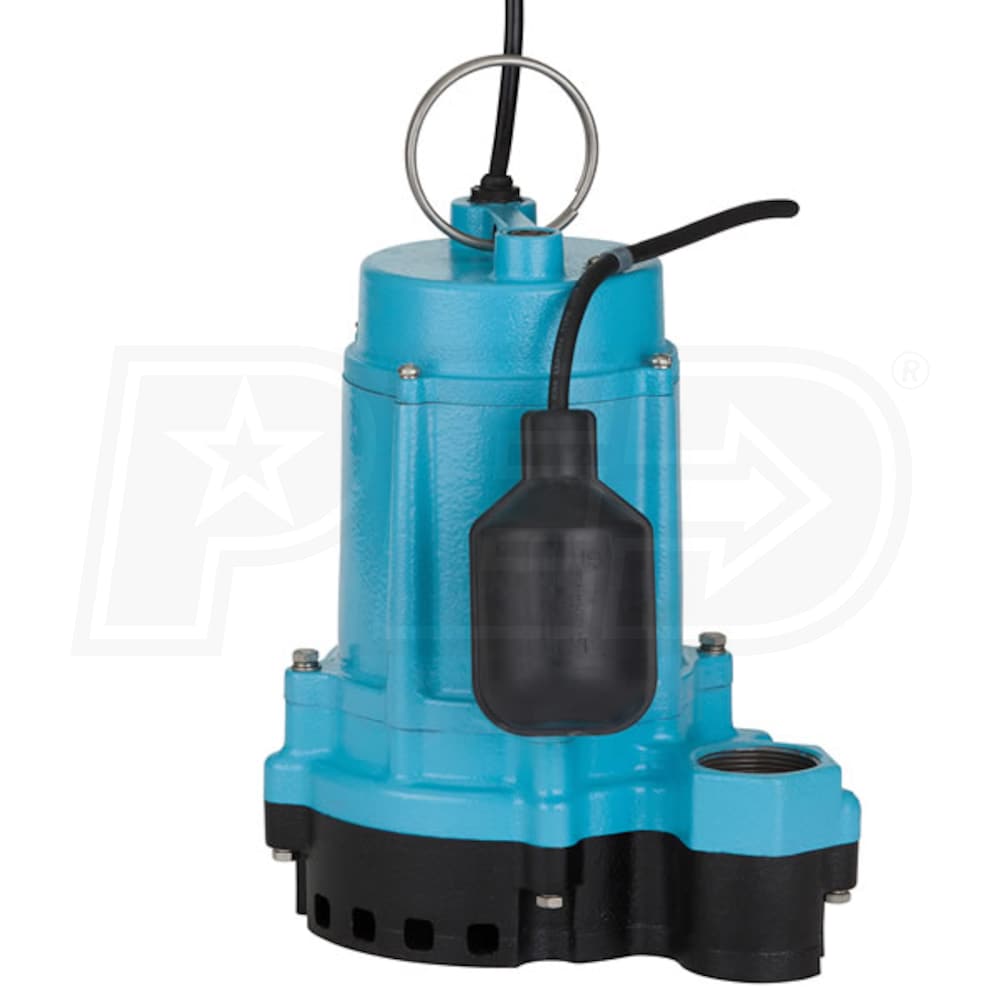

Little Giant 6EC-CIM -RF - 1/3 HP Cast Iron Submersible Pump w/ Piggyback Tether Float (20' cord)

Little Giant 6EC-CIM -RF - 1/3 HP Cast Iron Submersible Pump w/ Piggyback Tether Float (20' cord)
Model: 506858
$199.00
Only 3 In-Stock
Ships Friday, Feb 23rd
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$199.00Buy Now
In-Stock Free FreightNo Sales Tax* (Except IL)$199.00Visit Site
No Sales Tax* (Except IL)$199.00Visit Site

(as of 11:42 CST - Details) Sales Tax Extra $234.36Visit Site
Only 3 In-Stock
Ships Friday, Feb 23rd
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
3180
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Primary
GPH
3180 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Cast Iron Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Piggyback Tether Float Switch
  • Increase cycle time for optimal water removal
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Total Head Lift
28 Feet
Maximum PSI
12.1
Float Type

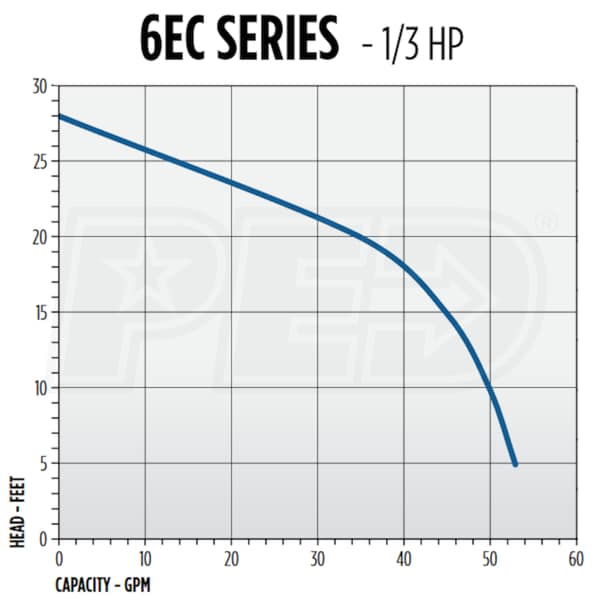

Piggy-Back Tether Switch
GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13-15 Inches
Float Off
6-8 Inches
Manual Override
No
Overview
Certification
cCSAus
Weight
35.5 Pounds
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
Consumer Warranty
2 Years
UPC
010121149144
Style
Primary Sumps Pumps
GPH
3180
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Primary
GPH
3180 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Cast Iron Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Piggyback Tether Float Switch
  • Increase cycle time for optimal water removal
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Total Head Lift
28 Feet
Maximum PSI
12.1
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13-15 Inches
Float Off
6-8 Inches
Manual Override
No
Overview
Certification
cCSAus
Weight
35.5 Pounds
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
Consumer Warranty
2 Years
UPC
010121149144
