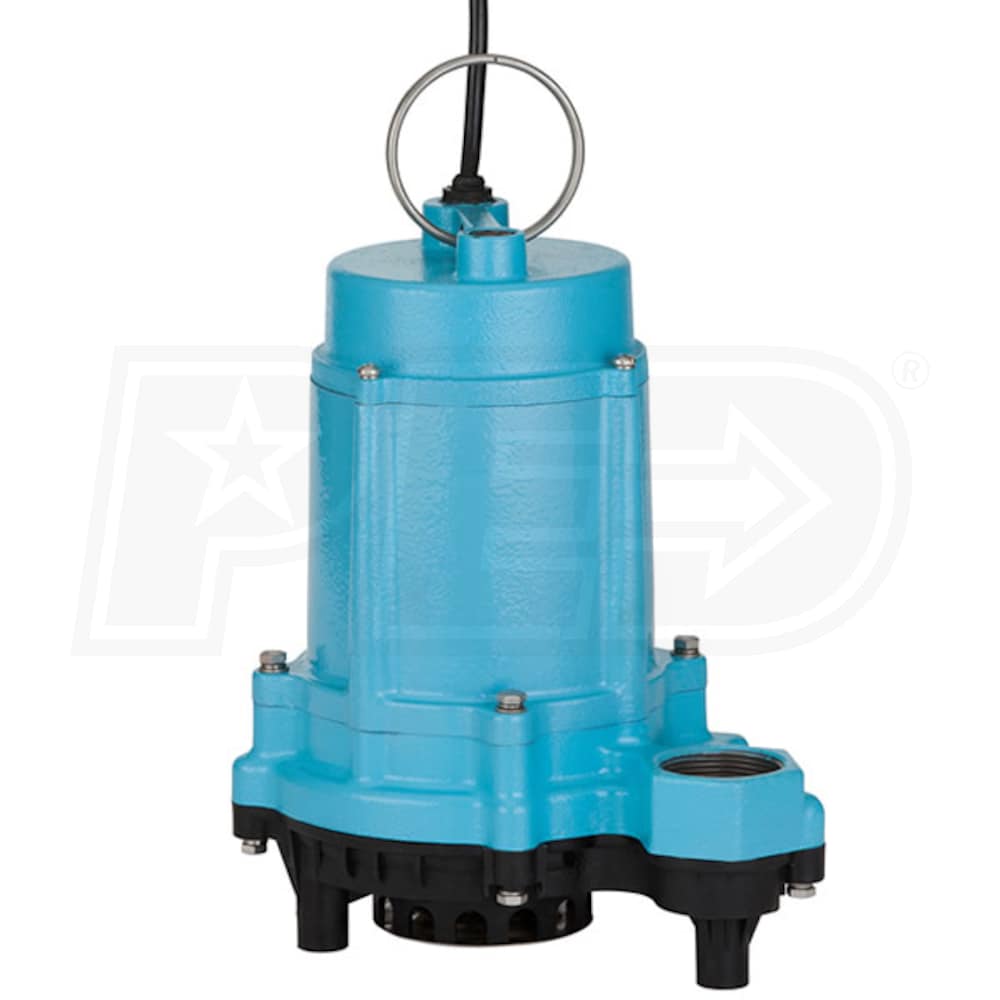

Little Giant 6EC-CIM - 1/3 HP Submersible Sump Pump w/ 20' cord (Non-Automatic)
Model:
506802
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
3180 Gallons
Switch Type
Vertical
- Manual Submersible Sump Pump - Non-Automatic
- Continuous duty rated for sump & light effluent applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 1/3 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- Vortex Style Nylon Impeller
- Non-clogging design passes up to 1/2" spherical solids
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
- Minimizes friction while providing smooth & quiet operation
- 20-Foot Power Cord
- 28' Max Shutoff Head
- 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
506802
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
.5 inch
Maximum PSI
12.1
Total Head Lift
28 Feet
Float Type
Vertical Float

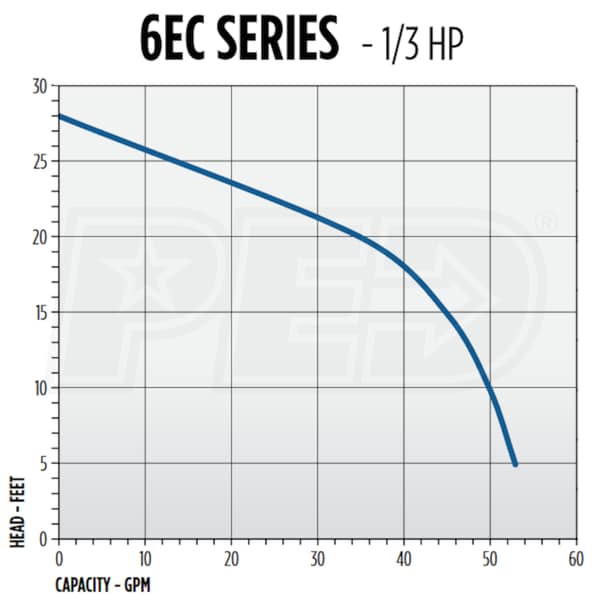

GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Product Category
Sump Pump
Weight
27.5 Pounds
Certification
cCSAus
Consumer Warranty
2 Years
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
UPC
010121148994
Reviews
(2)
Little Giant 506802 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jim, the Sump Pump Expert
Will the pump be damaged if it sits completely submerged for an extended period of time without running?
Jeff V.
from Vermont
July 22, 2017
