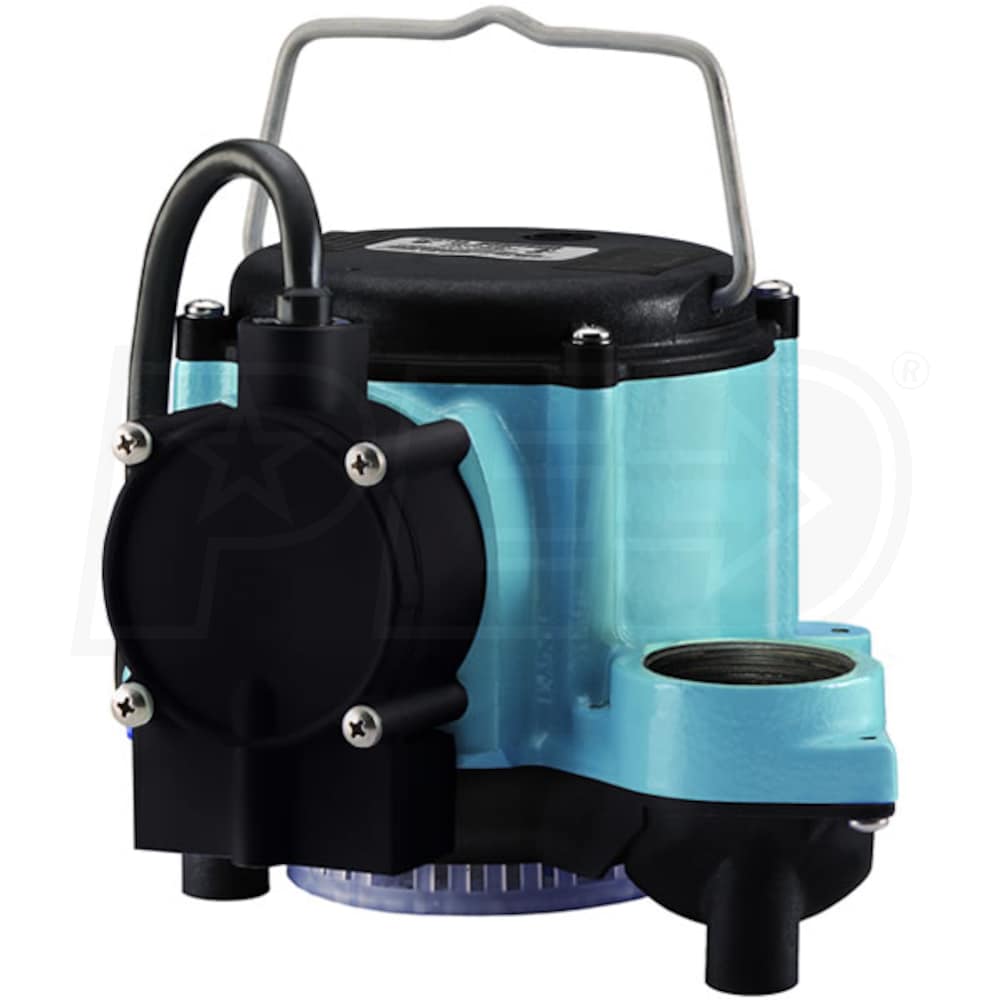

Little Giant 6-CIA - 1/3 HP Cast Iron Submersible Sump Pump w/ Diaphragm Switch

Little Giant 6-CIA - 1/3 HP Cast Iron Submersible Sump Pump w/ Diaphragm Switch
Model: 506158
$149.99
In-Stock
Ships Tuesday, Jul 24th
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$149.99Buy Now
In-Stock Free ShippingNo Sales Tax* (Except IL)$149.99Visit Site
No Sales Tax* (Except IL)$149.99Visit Site
Sales Tax Extra $149.99Visit Site
In-Stock
Ships Tuesday, Jul 24th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 11
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
2760
Gallons
Switch Type
Diaphragm Switch
Style
Primary
GPH
2760 Gallons
Switch Type
Diaphragm
Features
Features
  • Contractor-Grade Submersible Sump Pump
  • Continuous duty rated for basement & crawlspace applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • Integral Diaphragm Pressure Switch
  • Provides reliable automatic operation
  • 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Oil-filled motor housing provides lower operating temperatures
  • Vortex Style Nylon Impeller
  • Reducess clogging while providing consistent pumping
  • Stainless Steel Fasteners
  • Protects against corrosion in harsh sump pits
  • Upper & Lower Sintered-Sleeve Bearing
  • Minimizes friction while providing smooth & quiet operation
  • Carbon/Ceramic Mechanical Seal
  • Assures maximum protection against pump failure
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
2760
GPH @ 5 feet
2760
GPH @ 10 feet
1740
GPH @ 15 feet
750
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7-10 Inches
Float Off
1-4 Inches
Manual Override
No
Overview
Weight
18 Pounds
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
6 Inches
Consumer Warranty
2 Years
UPC
010121061583
Style
Primary Sumps Pumps
GPH
2760
Gallons
Switch Type
Diaphragm Switch
Style
Primary
GPH
2760 Gallons
Switch Type
Diaphragm
Features
Features
  • Contractor-Grade Submersible Sump Pump
  • Continuous duty rated for basement & crawlspace applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • Integral Diaphragm Pressure Switch
  • Provides reliable automatic operation
  • 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Oil-filled motor housing provides lower operating temperatures
  • Vortex Style Nylon Impeller
  • Reducess clogging while providing consistent pumping
  • Stainless Steel Fasteners
  • Protects against corrosion in harsh sump pits
  • Upper & Lower Sintered-Sleeve Bearing
  • Minimizes friction while providing smooth & quiet operation
  • Carbon/Ceramic Mechanical Seal
  • Assures maximum protection against pump failure
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
2760
GPH @ 5 feet
2760
GPH @ 10 feet
1740
GPH @ 15 feet
750
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7-10 Inches
Float Off
1-4 Inches
Manual Override
No
Overview
Weight
18 Pounds
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
6 Inches
Consumer Warranty
2 Years
UPC
010121061583
Product Specs
+
Specifications
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
2760
GPH @ 5 feet
2760
GPH @ 10 feet
1740
GPH @ 15 feet
750
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7-10 Inches
Float Off
1-4 Inches
Manual Override
No
Overview
Weight
18 Pounds
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
6 Inches
Consumer Warranty
2 Years
UPC
010121061583
Reviews
(11)
+
Little Giant 506158 Reviews & Ratings
91% of Reviewers Recommend This Product
Product Q&A
(2)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Will the pump be damaged if it sits completely submerged for an extended period of time without running?
Jeff V.
from Vermont
July 22, 2017
Answer
Not at all Jeff. In fact it's recommended so that the pump seals do not dry out.
+
Jim, Need your help. I am now confused by which sump pump to buy. I need one to dewater the deep end of a single truck dock. I have depressed a concrete area at the lowest end for sump to sit down in. Also i need it to be automatic and can I buy it with 30 foot cord. Thanks for your help
David Dailey
from California
May 26, 2014
Answer
If you can provide the depth of the depressed area that the pump will be located in, the total vertical lift that your discharge will be along with the total pumping distance including any elevation variance and the dimensions of your truck dock (including depth), I'll be happy to assist you further.
