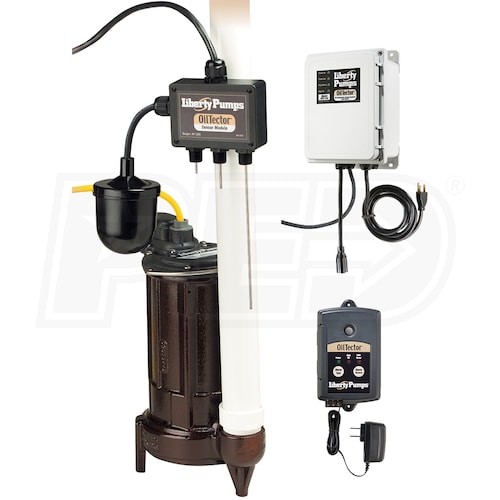

Liberty Pumps ELV280 - 1/2 HP Cast Iron Elevator Sump Pump System w/ OilTector® Control & Alarm

Liberty Pumps ELV280 - 1/2 HP Cast Iron Elevator Sump Pump System w/ OilTector® Control & Alarm
Model: ELV280
$1,862.70
In-Stock
Ships Wednesday, Jan 17th
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$1,862.70Buy Now
Free ShippingNo Sales Tax* (Except IL)$1,862.70Visit Site
In-Stock
Ships Wednesday, Jan 17th
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
4020
Gallons
Switch Type
Tether Float Switch


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 1/2 HP ELV-Series OilTector« Elevator Sump Pump System
  • For elevator sump pits, transformer vaults and other applications
  • For applications where oil and water must be detected
  • OilTector« System - ASME A17.1 Compliant
  • Activates the pump to remove water from the pit
  • Stops the pump before oil/harmful substances are discharged

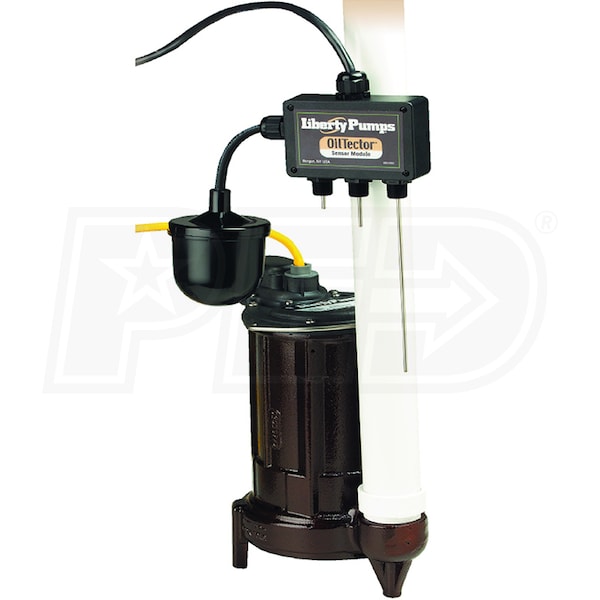

  • Heavy-Duty Cast Iron 1/2 HP Sump Pump
  • With 25-foot oil-resistant SJEOOW cord for added protection
  • Easy Installation
  • No field adjustments required, just install & plug-in

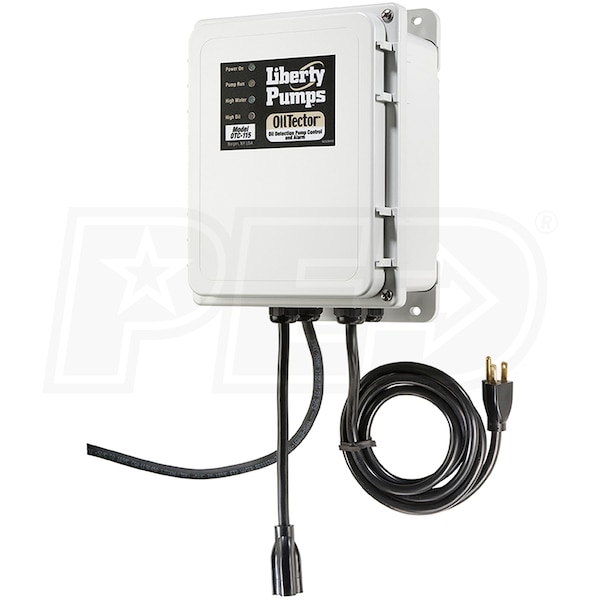

  • NEMA 1 Control Panel
  • Separate pump and control circuits for added protection

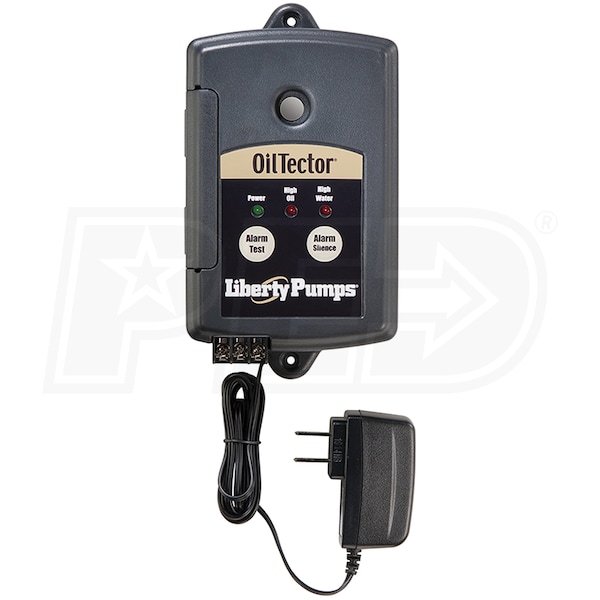

  • Remote Alarm w/ Audio/Visual Warnings
  • Also provides additional auxiliary (24 VDC) contacts
  • For connection to building automation system or SCADA system
  • Easy To Read Warning Lights
  • Power on, pump run, high water and high oil
  • Includes:
  • 1/2 HP Sump Pump, Level Sensor, Alarm & Control Panel
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
23
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.75 inch
Float Type
Tether Switch
GPH @ 0 feet
4020
GPH @ 5 feet
3780
GPH @ 10 feet
3360
GPH @ 15 feet
2970
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Overview
Made in USA
Yes
Weight
40 Pounds
Consumer Warranty
3 Years
UPC
671812114850
Style
Primary Sumps Pumps
GPH
4020
Gallons
Switch Type
Tether Float Switch
