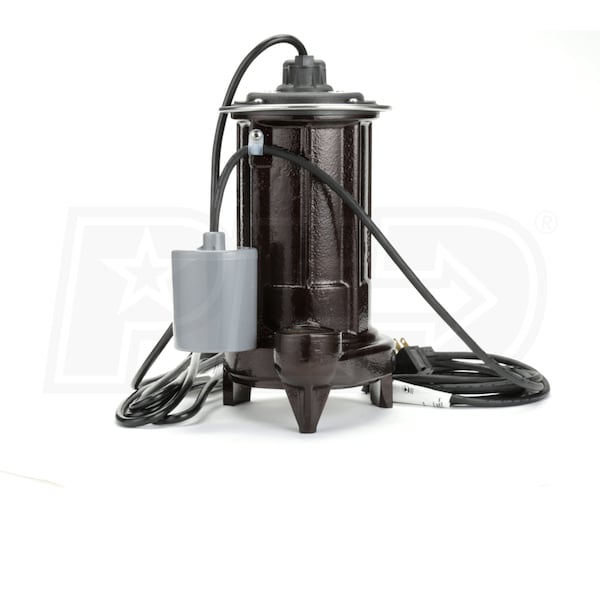

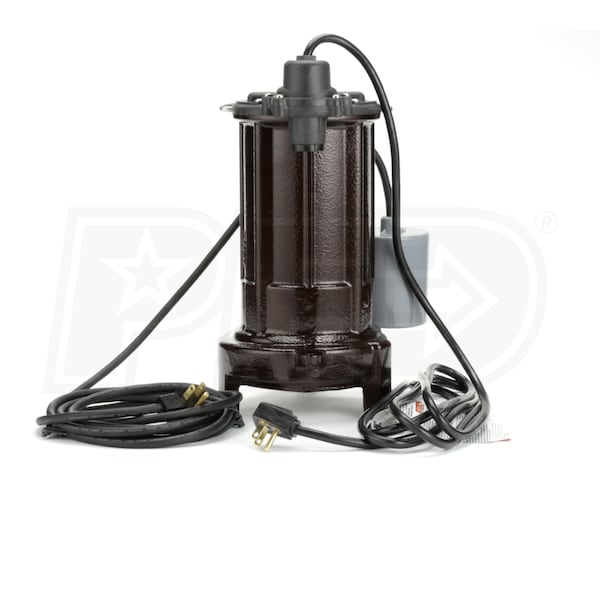

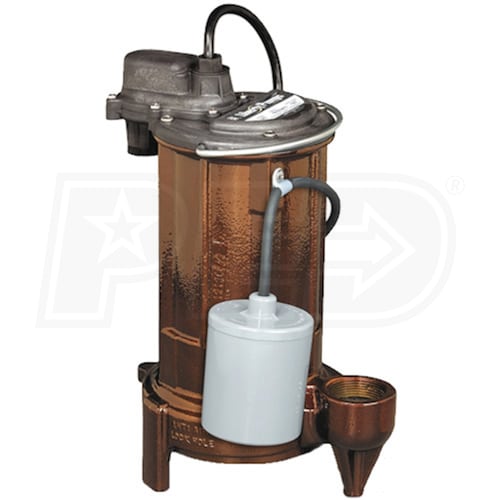

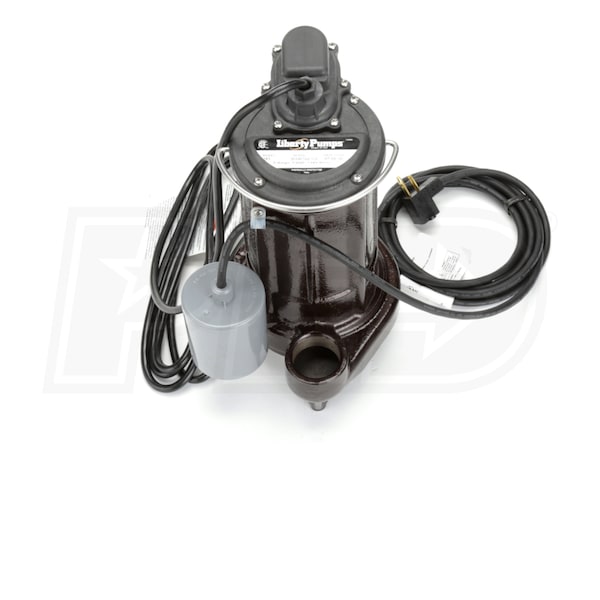

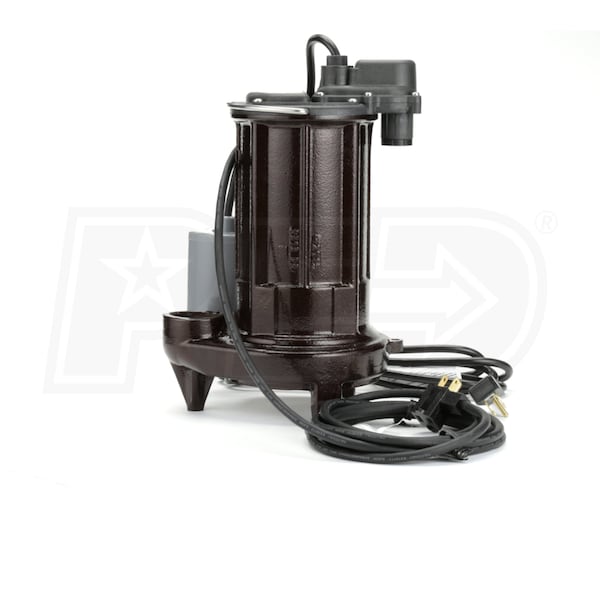

Liberty Pumps 283-2 - 1/2 HP Cast Iron Submersible Sump Pump w/ Piggyback Tether Float (25' Cord)
Model: 283-2
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
4080
Gallons
Switch Type
Style
Primary
GPH
4080 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Cast Iron Sump Pump
- For high head (up to 30') and/or high output applications
- Quick-Disconnect 25' Standard Power Cord
- Great for outdoor applications when an outlet is farther away
- Quick-Disconnect Wide Angle Piggyback Tether Float Switch
- Provides automatic operation in sump pits as small as 14-inches
- Rugged, Energy Efficient & Thermally Protected 1/3 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest sump pits
- 416 Stainless Steel Rotor Shaft
- With permanently lubricated bearings for extended pump life

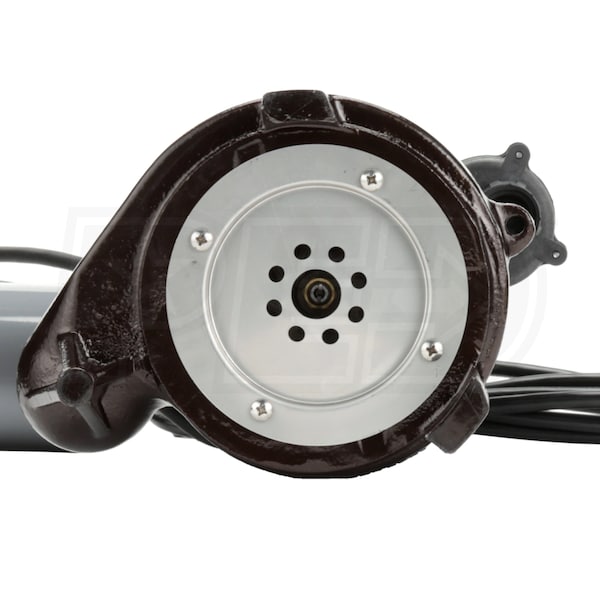

- Removable Stainless Steel Bottom Screen
- Keeps larger debris from damaging the pump
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
23
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

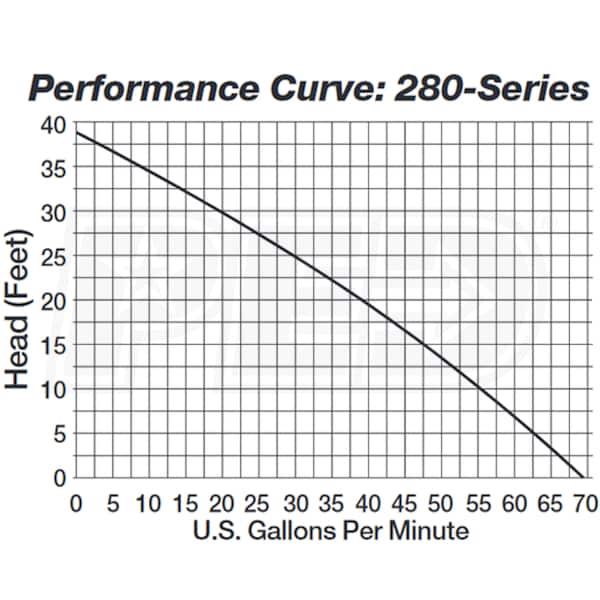

GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13.5 Inches
Float Off
7 Inches
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
31 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
UPC
