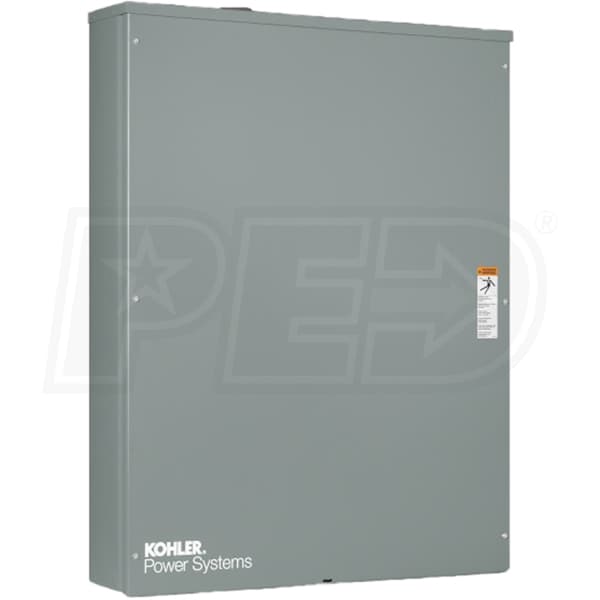

Kohler RDT Series 200-Amp Automatic Transfer Switch w/ 42 Cir. Load Center (Service Disc)

Kohler RDT Series 200-Amp Automatic Transfer Switch w/ 42 Cir. Load Center (Service Disc)
Model: RDT-CFNC-200BSE
$1,249.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)

No Sales Tax* (Except IL)$1,249.00Buy Now
No Sales Tax* (Except IL)$1,249.00Visit Site
No Sales Tax* (Except IL)$1,249.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Service Disconnect
Amp Rating
200
Circuits
42
Enclosure
NEMA 3R
Features
Features
  • Kohler RDT Series 200-Amp Automatic Transfer Switch
  • Compatible with all Kohler 120/240V 1-phase generators
  • Service Entrance Rated
  • Includes disconnect circuit breakers on both gen/utility sources
  • 42 Circuit Load Center (Breakers Not Included)
  • Easily add a gen to buildings w/ previously installed electrical
  • Gray Aluminum Indoor/Outdoor (NEMA 3R) Cabinet
  • Corrosion-resistant design is also padlockable for added security
  • MPAC™ 500 Controller
  • User-friendly interface and easy-to-find international symbols
  • Selectable source for easy contractor servicing
  • LED Fault Indicatiors
  • Failure to acquire standby source, failure to transfer & Aux. faults
  • Test & Exercise Button
  • Allows for both of these options with or without a load
  • Double Throw, Inherently Interlocked Design
  • Contactor electrically and mechanically interlocked
  • Rated at 200-Amps @ 240-Volts
  • Please See Spec Sheet For Technical Information
  • 5-Year Limited Warranty - UL Listed & CSA Certified
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
42
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
70 Pounds
Product Length
30.5 Inches
Product Width
6.5 Inches
Product Height
38.1 Inches
Consumer Warranty
5 Years
UPC
650531171214
Type
Service Disconnect
Amp Rating
200
Circuits
42
Enclosure
NEMA 3R
