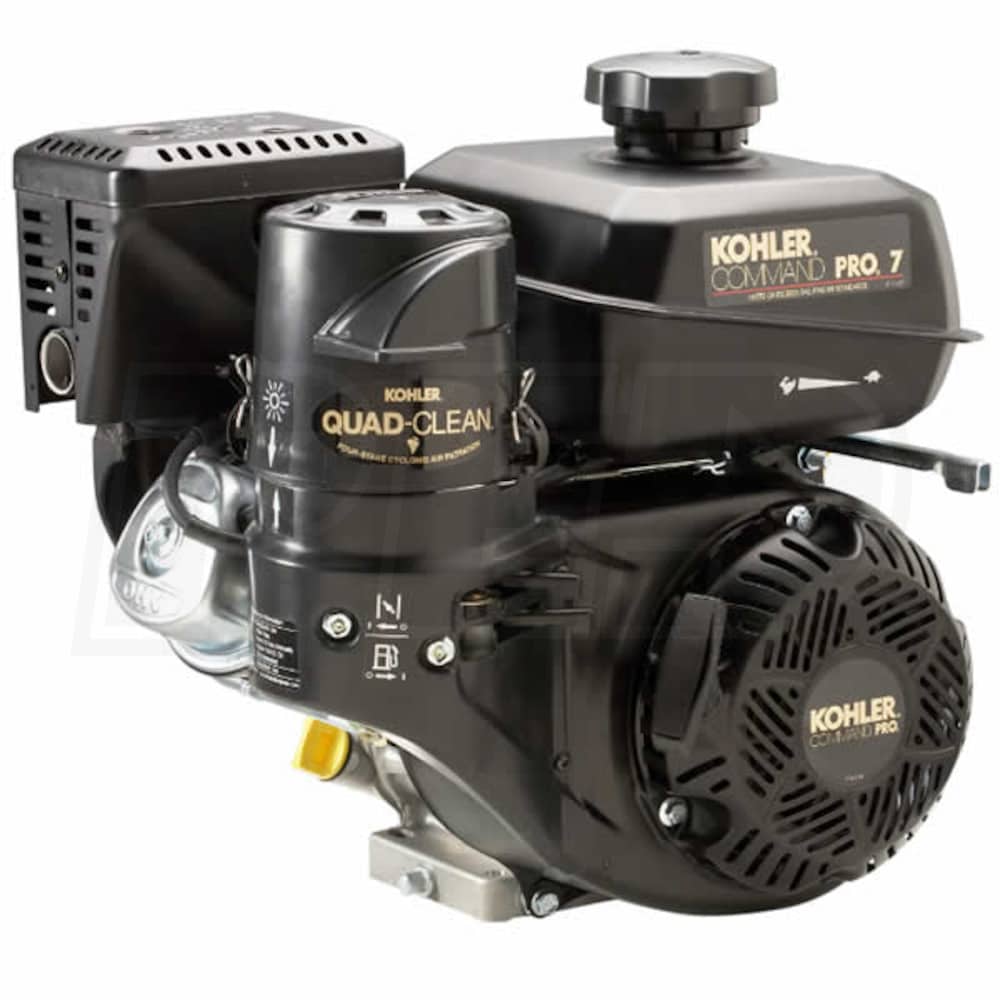

Kohler Command Pro CH270 208cc 7 Gross HP 6:1 Gear Reduction Horizontal Engine, 3/4" x 2" Crankshaft
Model:
PA-CH270-3019
+
Share This Product
Features
- Model# CH270-3019, 3/4" x 2" Crankshaft w/ 6:1 Gear Reduction
- Utility / General applications like chipper/shredder and water pump
- KOHLER Command PRO™ CH270 Single Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
- Produces 10.5 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
- Maximum Side Load Characteristics
- Steel-forged crankshaft and cast iron cylinder bore
- Stellite® faced exhaust valve with Tuftride® coated stems and dual ball bearings
- Quad-Clean™ All-Season Four-Stage Cyclonic Air Filtration System
- Only the cleanest air is entering the engine- maximizing engine power and life
- Recycles engine heat for effortless starts in all weather and conditions
- Longer Run Time Between Fill-Ups
- Advanced ignition system reduces fuel consumption
- Large 1 gallon fuel tank
- Smoother, Quieter Performance
- Large capacity oversized muffler with heat shield and spark arrestor
- Sound-deadening alloy crankcase and silenced air intake
- Oil Sentry Automatic Low Oil Engine Shutdown System
- Added engine protection- no light
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
PA-CH270-3019

Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
38.7 Lbs
CC
208 CCs
HP
7 HP
Max Torque
10.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.8 Inches
Stroke
2.1 Inches
Compression Ratio
8.5:1
CARB
No
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.08 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2 Inches
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
3/4"
Crankshaft Length
2"
Crankshaft End Tapped Size
N/A
PTO Height
4.173 Inches
Overview
Weight
39 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.7 Inches
Product Width
15.2 Inches
Product Height
14.2 Inches
Dimensions
12.7 x 15.2 x 14.2
