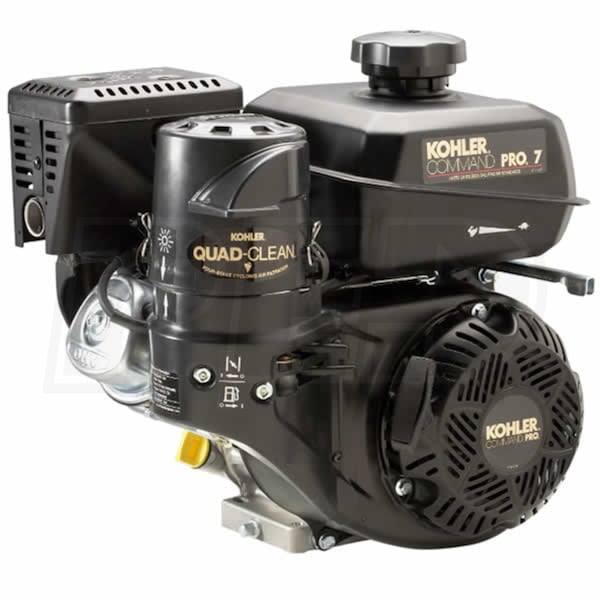

Kohler Command Pro CH270 208cc 7 Gross HP 6:1 Gear Reduction Horizontal Engine, 3/4" x 2" Crankshaft

Model:

PA-CH270-3019

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler Command Pro CH270 208cc 7 Gross HP 6:1 Gear Reduction Horizontal Engine, 3/4
Kohler Command Pro CH270 208cc 7 Gross HP 6:1 Gear Reduction Horizontal Engine, 3/4" x 2" Crankshaft
Model: PA-CH270-3019
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# CH270-3019, 3/4" x 2" Crankshaft w/ 6:1 Gear Reduction
  • Utility / General applications like chipper/shredder and water pump
  • KOHLER Command PRO™ CH270 Single Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
  • Produces 10.5 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
  • Maximum Side Load Characteristics
  • Steel-forged crankshaft and cast iron cylinder bore
  • Stellite® faced exhaust valve with Tuftride® coated stems and dual ball bearings
  • Quad-Clean™ All-Season Four-Stage Cyclonic Air Filtration System
  • Only the cleanest air is entering the engine- maximizing engine power and life
  • Recycles engine heat for effortless starts in all weather and conditions
  • Longer Run Time Between Fill-Ups
  • Advanced ignition system reduces fuel consumption
  • Large 1 gallon fuel tank
  • Smoother, Quieter Performance
  • Large capacity oversized muffler with heat shield and spark arrestor
  • Sound-deadening alloy crankcase and silenced air intake
  • Oil Sentry Automatic Low Oil Engine Shutdown System
  • Added engine protection- no light
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-CH270-3019
specs product image PID-68791
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
38.7 Lbs
CC
208 CCs
HP
7 HP
Max Torque
10.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.8 Inches
Stroke
2.1 Inches
Compression Ratio
8.5:1
CARB
No
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.08 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2 Inches
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
3/4"
Crankshaft Length
2"
Crankshaft End Tapped Size
N/A
PTO Height
4.173 Inches
Overview
Weight
39 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.7 Inches
Product Width
15.2 Inches
Product Height
14.2 Inches
Dimensions
12.7 x 15.2 x 14.2
