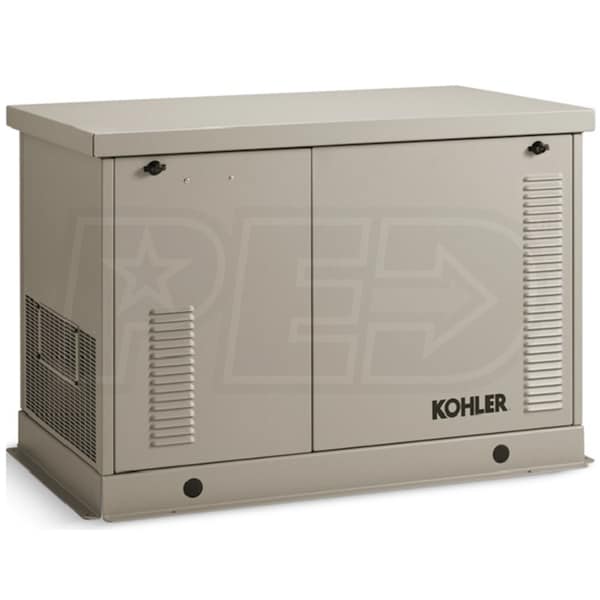

Kohler 20RESD - 20kW Aluminum Home Standby Generator

Model:

20RESD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Kohler 20kW Aluminum Home Standby Generator
Model:
20RCA
$5,100.00
In-Stock
Kohler 20RESD - 20kW Aluminum Home Standby Generator
Kohler 20RESD - 20kW Aluminum Home Standby Generator
Model: 20RESD
Was $4,453.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Kohler

  • Commercial-Grade Kohler Command PRO® OHV Engine
  • Powerful and reliable engine air-cooled design for heavy-duty applications
  • Hydraulic valve lifters eliminate routine valve adjustments
  • Runs on Clean Burning Natural Gas or LPG - Simple Field Conversion
  • While still maintaining emission regulations for U.S. EPA & California
  • Aluminum Sound Enclosure and Base Skid
  • Weather-resistant cashmere textured finish
  • Wind rated up to 181 MPH
  • Powerful Performance w/ PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Fast Response Time
  • Kohler® generators restore power in as little as 10 seconds
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 69 dB(A) at 7 m (23 ft)
  • RDC2 (6-Button) Digital Controller
  • Glare-resistant, 2-line 16-character display - No More Codes
  • Easily view ATS status via LED lights on controller
  • Optional OnCue Remote Monitoring System (Sold Separately)
  • Built-in Ethernet card, no hardware needed for OnCue
  • Designed For Easy Installation
  • Load connection terminal block allows easy field wiring
  • Fuel and electric connection through enclosure wall, no-more stub-ups
  • Reduced Setback - 18" Installation to Combustible Surfaces
  • Meets NFPA 37 Requirements
  • ***Not Compatible For Off-Grid Applications***
  • Approved for stationary standby applications in locations served by a reliable utility source
  • Transfer Switch (Sold Separately) & Group 26 Bat. (Not Included)
  • Please See Spec Sheet For All Certifications
  • Premium Warranty - 5-Year/2,000-Hour Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

20RESD
specs product image PID-96209
Overview
Weight
530 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
47.9 Inches
Product Width
28.8 Inches
Product Height
31.6 Inches
UPC
650531416483
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (500 CCA)
Enclosure
Aluminum
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
