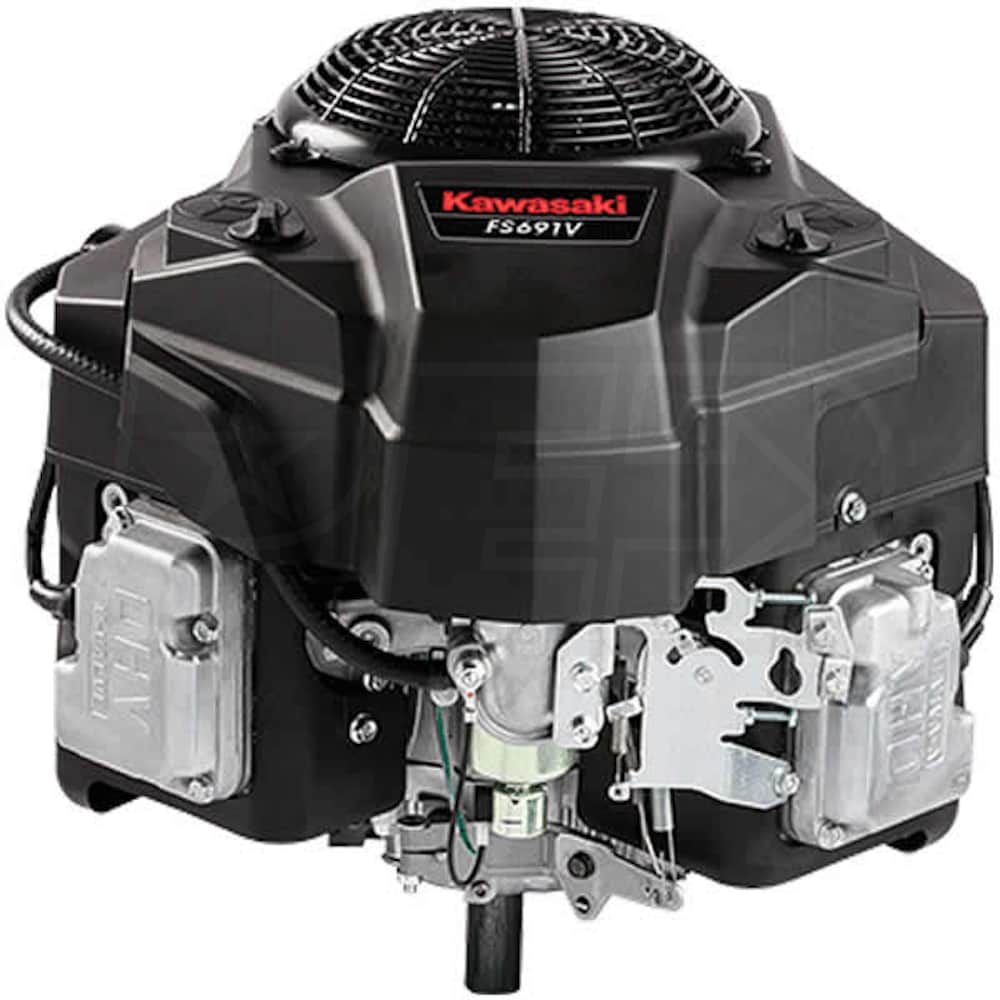

Kawasaki FS691V - 726cc 23HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Chrg Coil, 1-1/8" x 4-9/32" Crankshaft

Kawasaki FS691V - 726cc 23HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Chrg Coil, 1-1/8" x 4-9/32" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: FS691V-S00S
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$1,799.99

Ships in 2-5 Business Days
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Ships in 2-5 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • FS691V-FS00S - 1-1/8" x 4-9/32" Crankshaft, 12V Starter, Charging Coil, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1-1/8" x 108.8mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS691V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 23 HP @3600 RPM
  • 90° V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Electronic Spark Ignition & 12V Electric Starter (Bendex Type)
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Also Includes Separate Choke & Throttle Control; Charging Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
91.5 Lbs
CC
726 CCs
HP
23 HP
Max Torque
39.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
3 Inches
Compression Ratio
8.2:1
Systems
Starting System
12-Volt Key Start
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
71 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4-9/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4-9/32"
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FS691V-FS00S, FS691V-S00S

Features
Features
  • FS691V-FS00S - 1-1/8" x 4-9/32" Crankshaft, 12V Starter, Charging Coil, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1-1/8" x 108.8mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS691V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 23 HP @3600 RPM
  • 90° V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Electronic Spark Ignition & 12V Electric Starter (Bendex Type)
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Also Includes Separate Choke & Throttle Control; Charging Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
91.5 Lbs
CC
726 CCs
HP
23 HP
Max Torque
39.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
3 Inches
Compression Ratio
8.2:1
Systems
Starting System
12-Volt Key Start
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
71 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4-9/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4-9/32"
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FS691V-FS00S, FS691V-S00S
Product Specs
+
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
91.5 Lbs
CC
726 CCs
HP
23 HP
Max Torque
39.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
3 Inches
Compression Ratio
8.2:1
Systems
Starting System
12-Volt Key Start
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
71 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4-9/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4-9/32"
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FS691V-FS00S, FS691V-S00S
