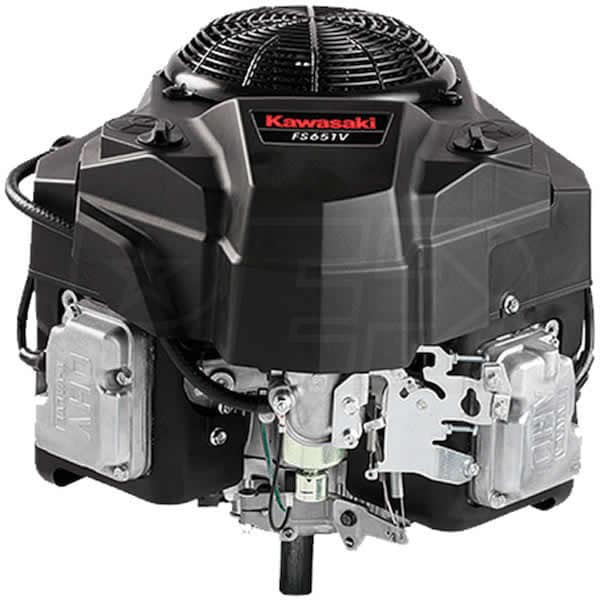

Kawasaki FS651V - 726cc 22HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Charging Coil, 1" x 80mm Crankshaft

Kawasaki FS651V - 726cc 22HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Charging Coil, 1" x 80mm Crankshaft
Model: FS651V-DS07S
$1,529.99
Ships in 4-7 Business Days
Free Shipping
Ships in 4-7 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • FS651V-DS07S - 1" x 80mm Crankshaft, 12V Start, Charging Coil, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1" x 80mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS651V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 22 HP @3600 RPM
  • 90 V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Electronic Spark Ignition & 12V Electric Starter (Cables Not Included)
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Also Includes Separate Choke & Throttle Control; Charging Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
91.5 Lbs
CC
726 CCs
HP
22 HP
Max Torque
39.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
3.0 Inches
Compression Ratio
8.2"1
Systems
Starting System
12-Volt (No Key)
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
70.4 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 80mm Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
80mm
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years

Features
Features
  • FS651V-DS07S - 1" x 80mm Crankshaft, 12V Start, Charging Coil, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1" x 80mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS651V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 22 HP @3600 RPM
  • 90 V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Electronic Spark Ignition & 12V Electric Starter (Cables Not Included)
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Also Includes Separate Choke & Throttle Control; Charging Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
91.5 Lbs
CC
726 CCs
HP
22 HP
Max Torque
39.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
3.0 Inches
Compression Ratio
8.2"1
Systems
Starting System
12-Volt (No Key)
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
70.4 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 80mm Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
80mm
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
91.5 Lbs
CC
726 CCs
HP
22 HP
Max Torque
39.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
3.0 Inches
Compression Ratio
8.2"1
Systems
Starting System
12-Volt (No Key)
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
70.4 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 80mm Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
80mm
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
