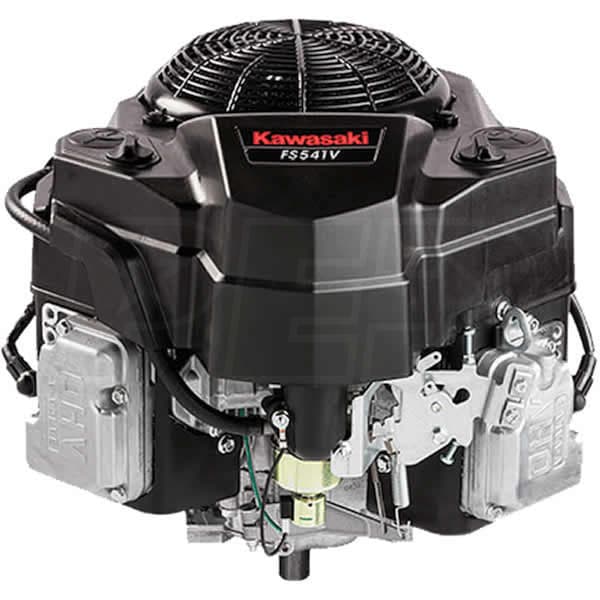

Kawasaki FS541V - 603cc 15HP OHV V-Twin Vertical Engine, No Muffler, Clutch Coil, 1-1/8" x 108.8mm Crankshaft

Kawasaki FS541V - 603cc 15HP OHV V-Twin Vertical Engine, No Muffler, Clutch Coil, 1-1/8" x 108.8mm Crankshaft
Model: FS541V-BS28S
$1,299.99
Only 1 In-Stock
Ships Monday, Jul 23rd
Free Shipping &
Tax-Free (Except IL)
Only 1 In-Stock
Ships Monday, Jul 23rd
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • FS541V-BS28S - 1-1/8" x 108.8mm Crankshaft, Clutch Coil, No Muffler, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1-1/8" x 108.8mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS541V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 15 HP @3600 RPM
  • 90 V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Recoil Starter & Electronic Spark Ignition
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Also Includes Separate Choke & Throttle Control; Clutch Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
15 HP
Max Torque
31 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.9 Inches
Stroke
2.8 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8" x 108.8mm Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
108.8mm
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years

Features
Features
  • FS541V-BS28S - 1-1/8" x 108.8mm Crankshaft, Clutch Coil, No Muffler, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1-1/8" x 108.8mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS541V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 15 HP @3600 RPM
  • 90 V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Recoil Starter & Electronic Spark Ignition
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Also Includes Separate Choke & Throttle Control; Clutch Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
15 HP
Max Torque
31 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.9 Inches
Stroke
2.8 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8" x 108.8mm Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
108.8mm
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
15 HP
Max Torque
31 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.9 Inches
Stroke
2.8 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8" x 108.8mm Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
108.8mm
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
+
Be the first to ask a question.
How-To Articles
+
Manuals
+


×
Kawasaki FS541V - 603cc 15HP OHV V-Twin Vertical Engine, No Muffler, Clutch Coil, 1-1/8" x 108.8mm Crankshaft
Kawasaki Power Products FS541V-BS28S
+
