Iron Horse IHTT60G-BS
Iron Horse IHTT60G-BS
Hover to zoom
1 Of 5

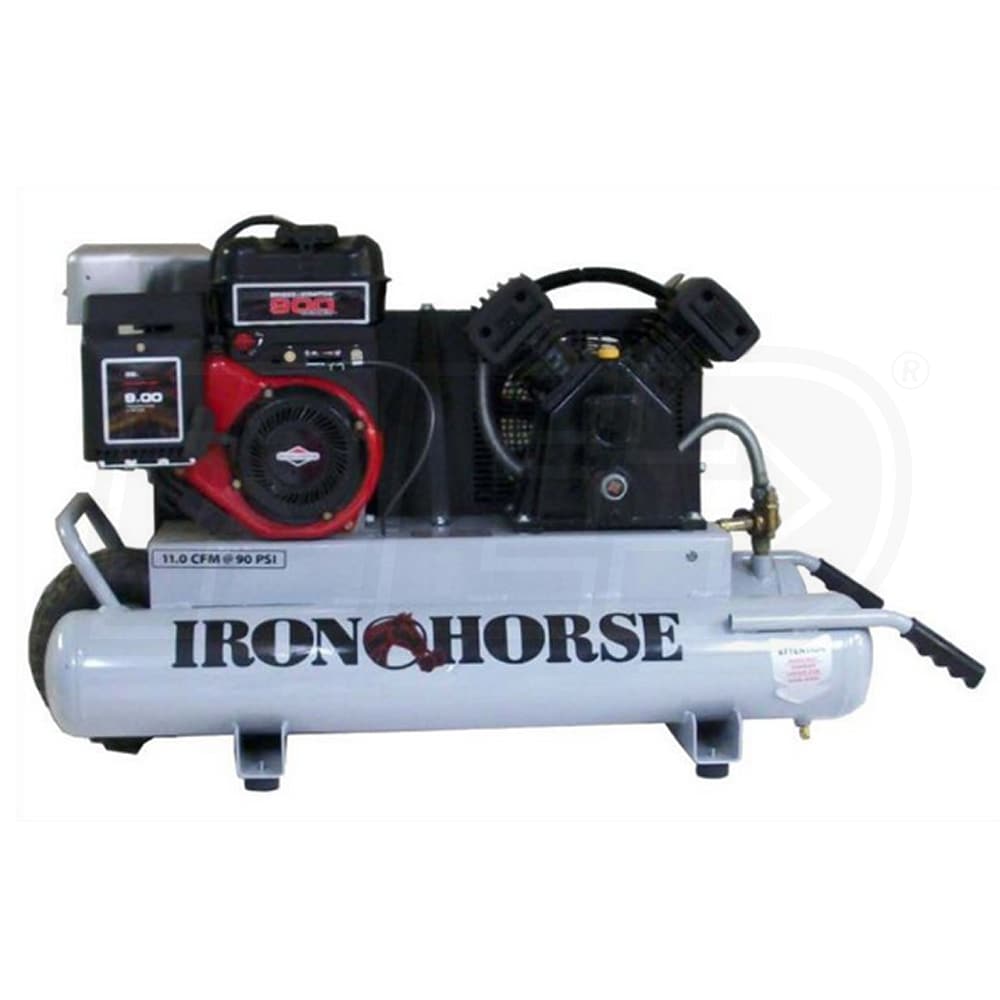

Iron Horse 6-HP 10-Gallon Gas Wheelbarrow Air Compressor

Model:

IHTT60G-BS

Write A Review
$1,229.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Iron Horse 6-HP 10-Gallon Gas Wheelbarrow Air Compressor
Iron Horse 6-HP 10-Gallon Gas Wheelbarrow Air Compressor
Model: IHTT60G-BS
$1,229.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Wheel Barrow

Engine Brand

Briggs & Stratton

CFM

11

Tank Size

10

  • Dependable 6-HP Briggs & Stratton OHV Engine
  • Delivers a quiet operation and maximum reliability
  • OHV provides more power for easy starting, less fuel-use & lower emissions
  • 10-Gallon Capacity Twin Wheelbarrow Style Tanks
  • Largest in the industry; powers tools up to 11 CFM
  • Stable low profile design is easy to move & transport w/ large pneumatic tire
  • Rugged Solid Cast Iron Pump
  • Easy viewing oil sight glass
  • Sturdy and reliable air pressure wherever you need it
  • Good compressor strength and ability to withstand heavy workloads
  • 3 Individual & Removable Cylinders
  • Allows for easy maintenance
  • Delivers smoother & cooler operation
  • High-Efficiency Reed Valves
  • Offer maximum and reliable performance
  • Efficient heat removal from flywheel for cooler running and longer life
  • Built For Professional Use
  • Easy view oil sight gauge
  • Sturdy belt guard protects the belt and the user
  • Engine Slow-Down Control
  • Control and regulates the engine idle speed
  • Reduces operating costs & unnecessary wear
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

IHTT60G-BS
specs product image PID-94759
General Information
Product Category
Air Compressor - Portable
Engine
HP
6
Auto Idle
Yes
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
190 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
50 Inches
Product Width
18 Inches
Product Height
24 Inches
Power Type
Gas
