Iron Horse IHD7380V2-CS2 - 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 3-Phase) for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Iron Horse IHD7380V2-CS2.

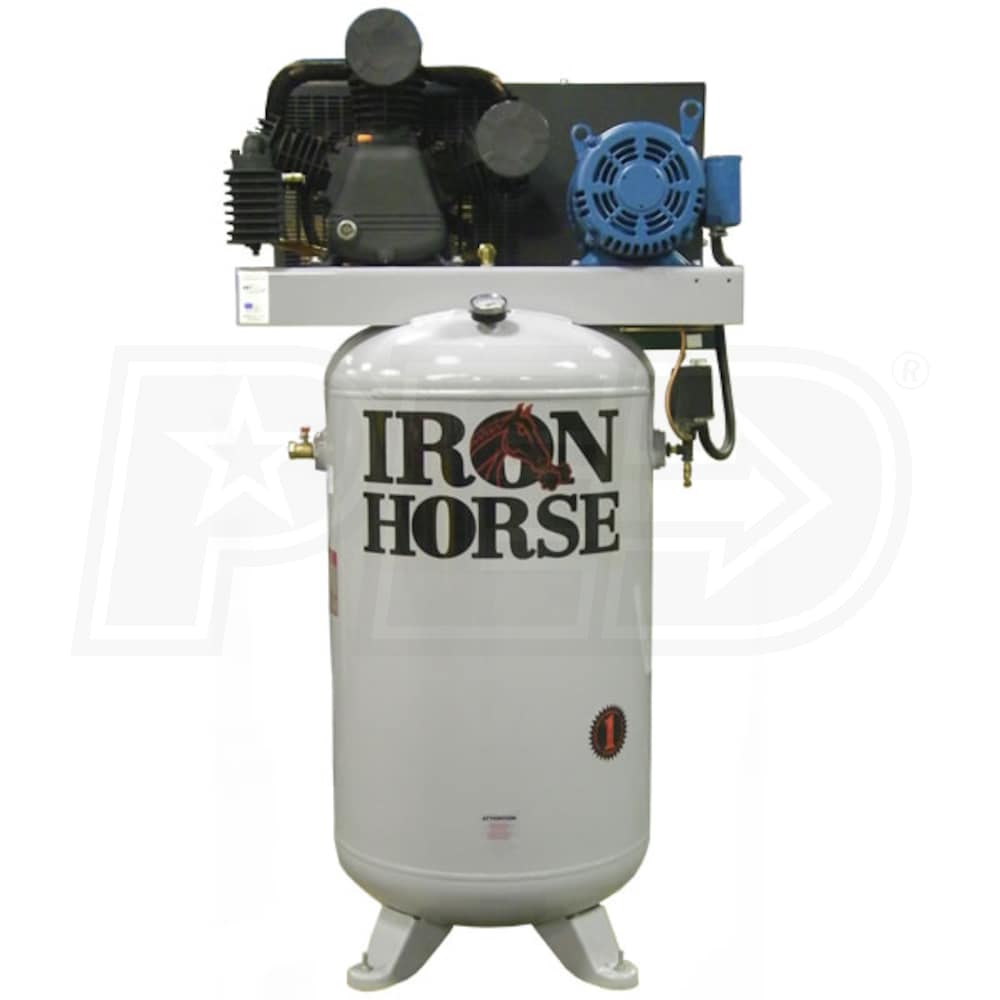

Iron Horse 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 3-Phase)

Close
Iron Horse Power Equipment and Accessories
Model: IHD7380V2-CS2
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 4-7 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$1,999.99

StoreShippingPriceShop

Free Freight$1,999.99
No Sales Tax*
(Except IL)
Buy

Free Freight$1,999.99
No Sales Tax*
(Except IL)
Visit Site

$2,074.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
22
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Rugged Compressor With 3 Cast Iron Cylinders
"V" design minimizes vibration, improves cooling, extends life
High efficiency reed valves provide maximum performance

Individual & Removable Cylinders
Smoother & cooler operation for optimum durability

7.5 HP (Peak) 208-230 Volt, 3-Phase Electric Motor
Protected against overheating; requires 23 amp circuit

No Magnetic Motor Starter Needed
Combo switch Improves performance with less expense

Heavy-Duty Pressure Switch With On/Off Control
50% duty cycle delivers 22 CFM at 90 PSI; 200 PSI maximum

Easy-View Oil Sight Gauge
Lets you check oil level at a glance for easy maintenance

Efficient Heat Removal From Fly Wheel
Cooler running & longer compressor life

Sturdy Metal Belt Guard
Protects both the belt & the operator

80 Gallon ASME Registered Tank
Rated to 150 PSI; sturdy 1/2" ball valve air outlet included
CSA certified for increased assurance of quality and safety
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
No
Amp Draw
23
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
22
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
442 Pounds
Product Length
24 Inches
Product Width
35 Inches
Product Height
69 Inches
Consumer Warranty
1 Year
UPC
020791502767
Model
IHD7380V2-CS2
