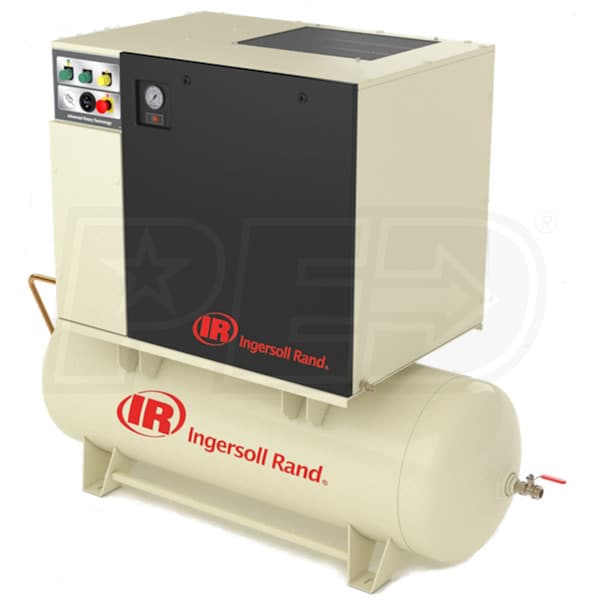

Ingersoll Rand 7.5-HP 80-Gallon Rotary Screw Total Air System (230V 1-Phase 150PSI)
Model:
UP6-7.5TAS-150.230-1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
25
Tank Size
80
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Compact And Efficient Rotary Screw Is Ideal For Industrial Use
- Runs cooler, lasts longer in continuous duty applications
- Total Air System (TAS) Refrigerated Dryer Is Energy Star Rated
- Stainless steel heat exchanger
- Easy To Operate With Smart, Energy Efficient Controls
- Reliable and effective load/no load control with auto stop/start
- Panel mounted dew point indicator
- Dual Filters With Easy Access And Simple Ducting
- Mounted and piped before and after the compressor
- High Efficiency Moisture Separation
- Single point condensate drain system
- 115 volt electric drain needs to be plugged in separately
- 70% Fewer Connections
- Smart integration eliminates leaks & pressure drops
- Maximizes reliability and profits with more air for your money
- Whisper Quiet Operation Allows Installation Closer To Work Area
- 65dBA ensures a better & safer work environment, reduces costs
- 150 PSI Maximum Pressure; 230 Volt, Single Phase Power Required
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
UP6-7.5TAS-150.230-1
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
25
CFM Rated @
150 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1000 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
29 Inches
Product Height
61 Inches
Power Type
Electric
UPC
678384043250
